Philips Semiconductors BT136 Series Data Handbook

Summary

Philips BT136 series D logic-level triacs are sensitive gate devices designed for general-purpose bidirectional switching and phase control. Ideal for interfacing directly with microcontrollers and low-power logic circuits, this TO220AB package triac features a repetitive peak off-state voltage of 600 V and a maximum on-state current of 4 A.

📄 Preview PAGE OF 6

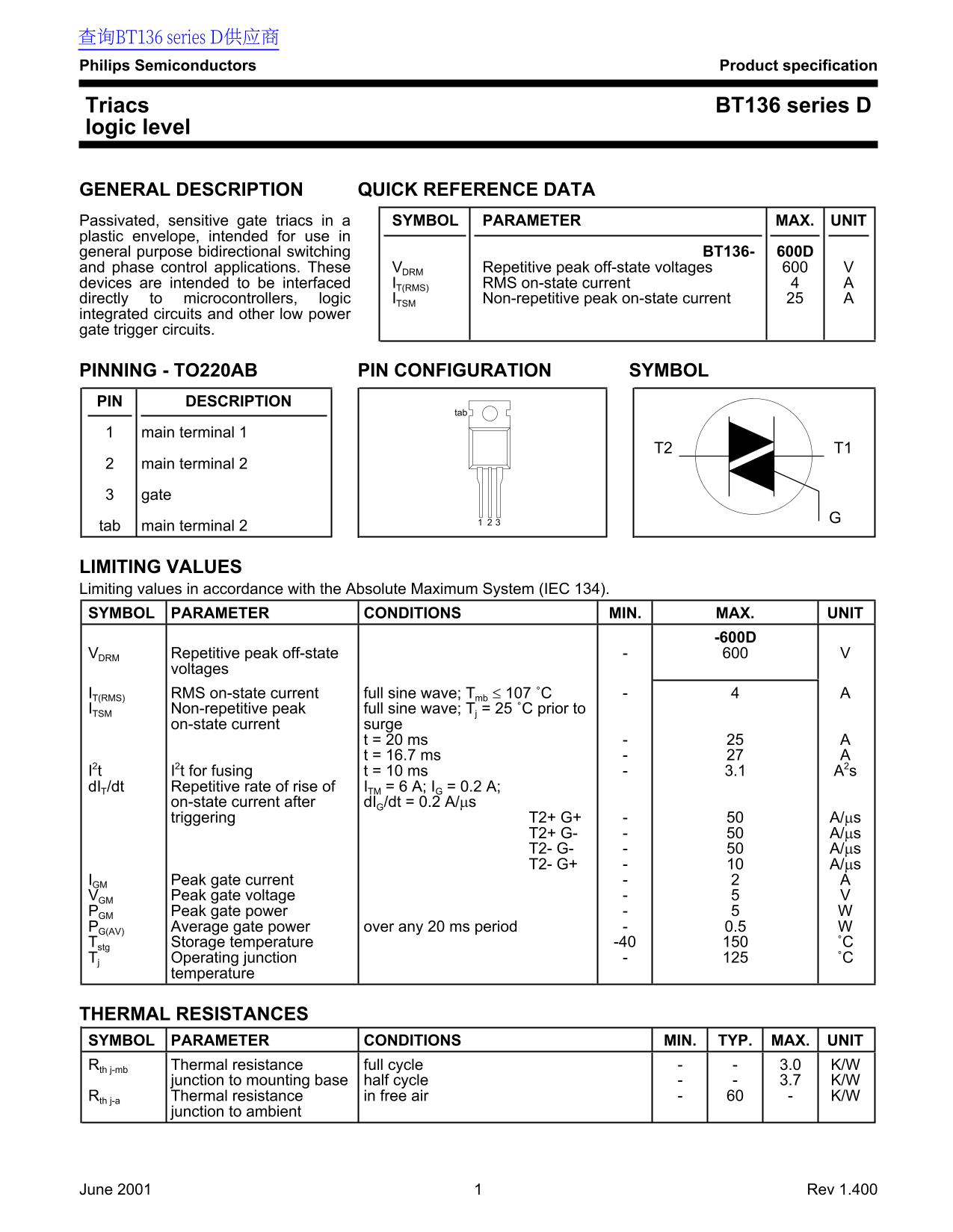

Page 1 Text Content

查询BT136 series D供应商 Philips Semiconductors Product specification

Triacs BT136 series D logic level

GENERAL DESCRIPTION QUICK REFERENCE DATA Passivated, sensitive gate triacs in SYMBOL PARAMETER MAX. UNIT plastic envelope, intended for use in general purpose bidirectional switching BT136- 600D

and phase control applications. These VDRM Repetitive peak off-state voltages

devices are intended to be interfaced IT(RMS) RMS on-state current directly to microcontrollers, logic ITSM Non-repetitive peak on-state current integrated circuits and other low power gate trigger circuits.

PINNING - TO220AB PIN CONFIGURATION SYMBOL PIN DESCRIPTION

main terminal 1

main terminal 2 gate

tab main terminal 2

LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

VDRM Repetitive peak off-state

voltages

IT(RMS) RMS on-state current full sine wave; Tmb ≤ 107 ˚C ITSM Non-repetitive peak full sine wave; Tj = 25 ˚C prior to

on-state current surge

t = 20 ms t = 16.7 ms

I2t I2t for fusing t = 10 ms 3.1 A2s d IT/dt Repetitive rate of rise of ITM = 6 A; IG = 0.2 A;

on-state current after d IG/dt = 0.2 A/µs triggering T2+ G+ A/µs

IGM Peak gate current VGM Peak gate voltage PGM Peak gate power PG(AV) Average gate power over any 20 ms period 0.5 Tstg Storage temperature -40 ˚C Tj Operating junction ˚C

temperature

THERMAL RESISTANCES SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Rth j-mb Thermal resistance full cycle 3.0 K/W

junction to mounting base half cycle 3.7 K/W

Rth j-a Thermal resistance in free air K/W

junction to ambient

June 2001 Rev 1.400

Page Summary Contents For Philips Semiconductors BT136 Series Data Handbook

Page 1 查询BT136 series D供应商 Philips Semiconductors Product specification Triacs BT136 series D logic level GENERAL DESCRIPTION QUICK REFERENCE DATA Passivated, sensitive gate triacs in SYMBOL PARAMETER MAX. U...
Page 2 Philips Semiconductors Product specification Triacs BT136 series D logic level STATIC CHARACTERISTICS Tj = 25 ˚C unless otherwise stated SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT IGT Gate trigge...
Page 3 Philips Semiconductors Product specification Triacs BT136 series D logic level Ptot / W Tmb(max) / C IT(RMS) / A IT(RMS) / A Tmb / C Fig.1. Maximum on-state dissipation, Ptot, versus rms Fig.4. Maximu...
Page 4 Philips Semiconductors Product specification Triacs BT136 series D logic level IGT(Tj) IT / A IGT(25 C) Tj = 125 C T2+ G+ Tj = 25 C typ max 2.5 Vo = 1.27 V T2- G- Rs = 0.091 ohms T2- G+ Tj / C VT / V ...
Page 5 Philips Semiconductors Product specification Triacs BT136 series D logic level MECHANICAL DATA Dimensions in mm Net Mass: 2 g max 10,3 max 5,9 min 15,8 max 3,03,0 max not tinned 13,5 min 1,3 max (2x) ...
Page 6 Philips Semiconductors Product specification Triacs BT136 series D logic level DEFINITIONS DATA SHEET STATUS DATA SHEET PRODUCT DEFINITIONS STATUS1 STATUS2 Objective data Development This data sheet c...
