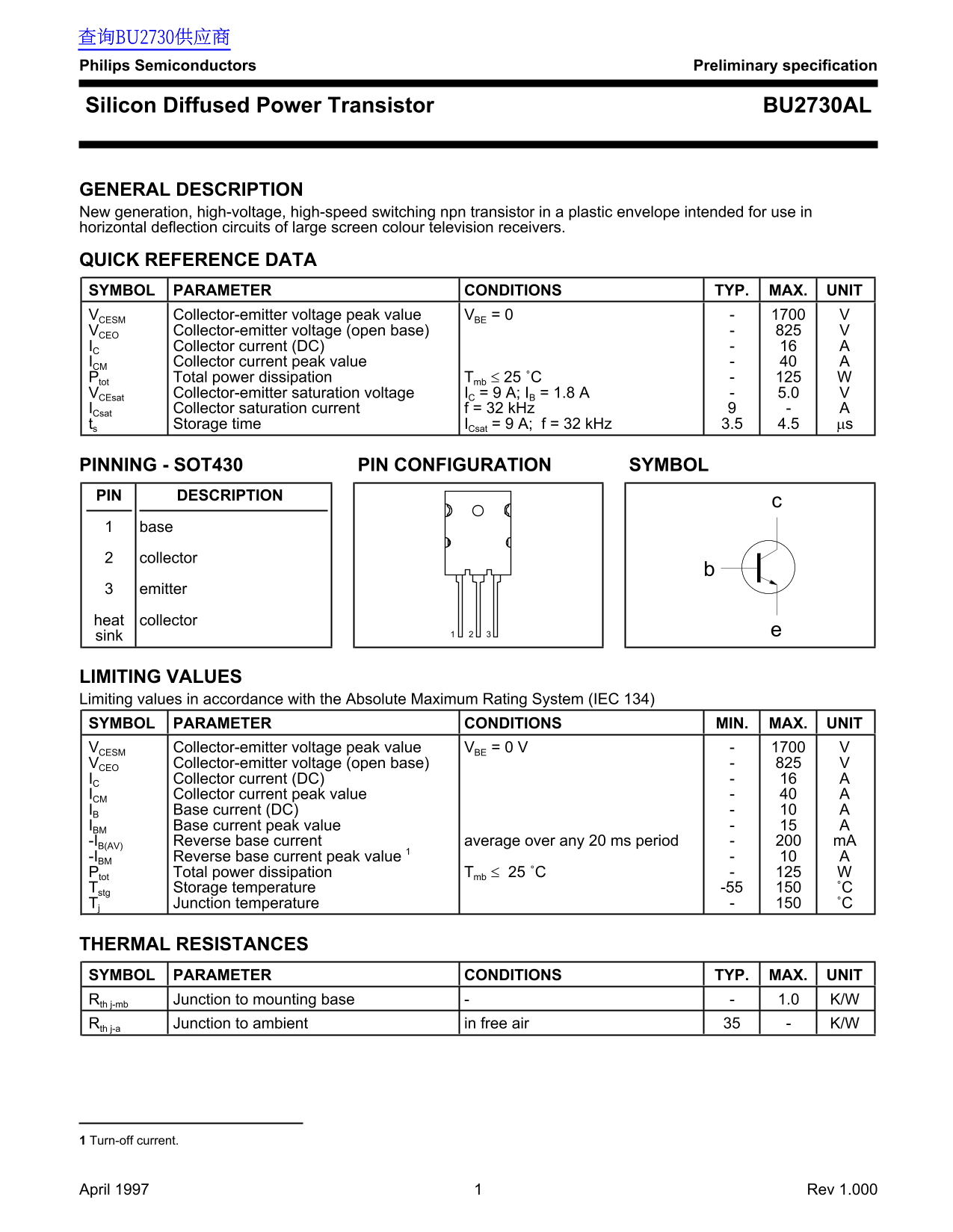

查询BU2730供应商 Philips Semiconductors Preliminary specification
Silicon Diffused Power Transistor BU2730AL
GENERAL DESCRIPTION New generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal deflection circuits of large screen colour television receivers.
QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT VCESM Collector-emitter voltage peak value VBE = 0 VCEO Collector-emitter voltage (open base) IC Collector current (DC) ICM Collector current peak value Ptot Total power dissipation Tmb ≤ 25 ˚C VCEsat Collector-emitter saturation voltage IC = 9 A; IB = 1.8 A 5.0 ICsat Collector saturation current f = 32 k Hz ts Storage time ICsat = 9 A; f = 32 k Hz 3.5 4.5 µs
PINNING - SOT430 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
collector emitter
heat collector sink
LIMITING VALUES Limiting values in accordance with the Absolute Maximum Rating System (IEC 134) SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VCESM Collector-emitter voltage peak value VBE = 0 V VCEO Collector-emitter voltage (open base) IC Collector current (DC) ICM Collector current peak value IB Base current (DC) IBM Base current peak value -IB(AV) Reverse base current average over any 20 ms period m A -IBM Reverse base current peak value 1 Ptot Total power dissipation Tmb ≤ 25 ˚C Tstg Storage temperature -55 ˚C Tj Junction temperature ˚C
THERMAL RESISTANCES SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT Rth j-mb Junction to mounting base 1.0 K/W Rth j-a Junction to ambient in free air K/W
1 Turn-off current.
April 1997 Rev 1.000
