The TDA1314T is a high-dynamic-range, quadruple very low noise digital-to-analog converter (DAC) specifically designed for car radio applications in conjunction with DSPs. This product specification manual provides detailed technical data, including 18-bit data input formats, 8th-order IIR up-sampling filter details, and pin configurations. It is intended for hardware engineers and system designers implementing high-fidelity automotive audio systems.

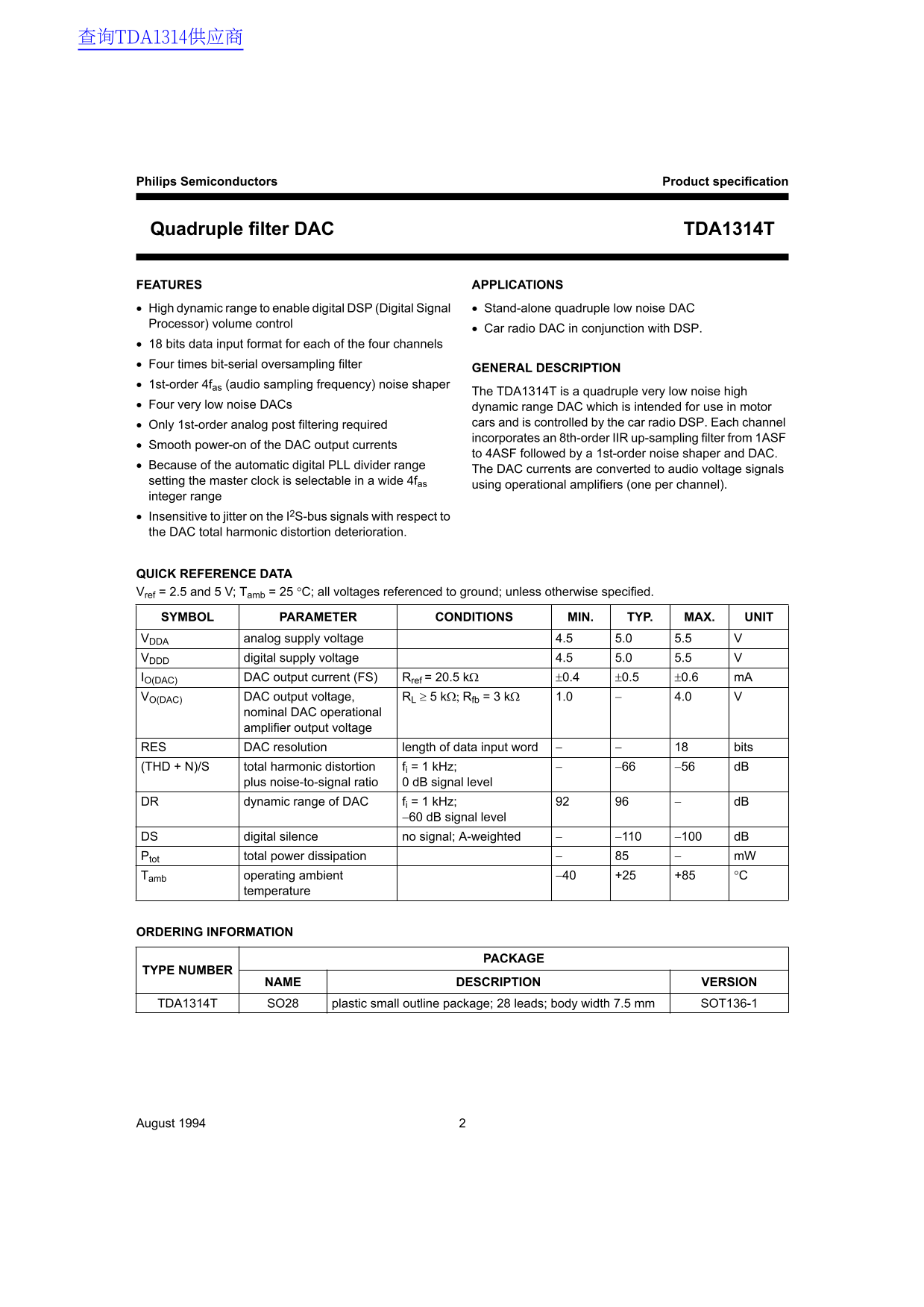

Page 1 Text Content
查询TDA1314供应商
Philips Semiconductors Product specification
Quadruple filter DAC TDA1314T
FEATURES APPLICATIONS High dynamic range to enable digital DSP (Digital Signal Stand-alone quadruple low noise DAC Processor) volume control
Car radio DAC in conjunction with DSP.
bits data input format for each of the four channels Four times bit-serial oversampling filter
GENERAL DESCRIPTION
1st-order 4fas (audio sampling frequency) noise shaper
The TDA1314T is a quadruple very low noise high
Four very low noise DACs dynamic range DAC which is intended for use in motor
Only 1st-order analog post filtering required cars and is controlled by the car radio DSP. Each channel incorporates an 8th-order IIR up-sampling filter from 1ASF
Smooth power-on of the DAC output currents
to 4ASF followed by a 1st-order noise shaper and DAC.
Because of the automatic digital PLL divider range
The DAC currents are converted to audio voltage signals
setting the master clock is selectable in a wide 4fas
using operational amplifiers (one per channel).
integer range Insensitive to jitter on the I2S-bus signals with respect to the DAC total harmonic distortion deterioration.
QUICK REFERENCE DATA Vref 2.5 and V; Tamb °C; all voltages referenced to ground; unless otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT VDDA analog supply voltage 4.5 5.0 5.5 VDDD digital supply voltage 4.5 5.0 5.5 IO(DAC) DAC output current (FS) Rref 20.5 kΩ ±0.4 ±0.5 ±0.6 m A VO(DAC) DAC output voltage, RL kΩ; Rfb kΩ 1.0 4.0
nominal DAC operational amplifier output voltage
RES DAC resolution length of data input word bits (THD + N)/S total harmonic distortion fi k Hz; −66 −56 d B
plus noise-to-signal ratio d B signal level
DR dynamic range of DAC fi k Hz; d B
−60 d B signal level
DS digital silence no signal; A-weighted −110 −100 d B Ptot total power dissipation m W Tamb operating ambient −40 +25 +85 °C
temperature
ORDERING INFORMATION
PACKAGE
TYPE NUMBER
NAME DESCRIPTION VERSION
TDA1314T SO28 plastic small outline package; 28 leads; body width 7.5 mm SOT136-1
August 1994
Page Summary Contents For Philips Semiconductors TDA1314T Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 15 |
| File Size | 136.29 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the intended use for the TDA1314T DAC?
It is a quadruple low noise DAC designed specifically for use in motor cars, typically controlled by a car radio DSP.
How many bits of data does the device support per channel?
The DAC supports an 18-bit data input format for each of its four channels.
Is this chip sensitive to jitter on I²S bus signals?
No, it is specified as being insensitive to jitter on the I²S-bus signals with respect to total harmonic distortion deterioration.
What are the acceptable operating temperature ranges?
The TDA1314T can operate in an ambient temperature range from -40°C to +85°C.
