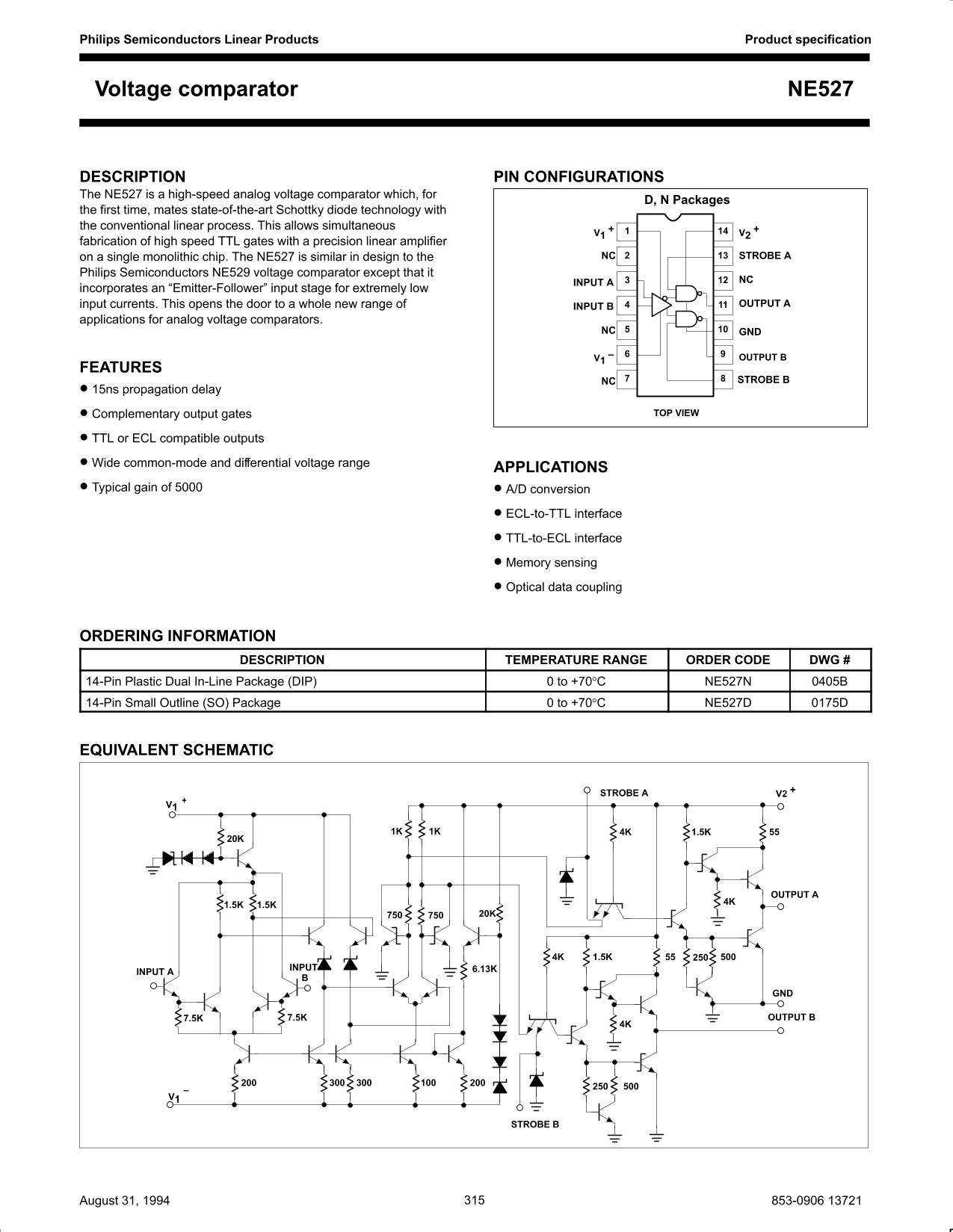

Page 1 Text Content
Philips Semiconductors Linear Products Product specification
NE527Voltage comparator
DESCRIPTION PIN CONFIGURATIONS The NE527 is a high-speed analog voltage comparator which, for
D, N Packages
the first time, mates state-of-the-art Schottky diode technology with the conventional linear process. This allows simultaneous
fabrication of high speed TTL gates with a precision linear amplifier
on a single monolithic chip. The NE527 is similar in design to the NC STROBE A
Philips Semiconductors NE529 voltage comparator except that it
INPUT A NC
incorporates an “Emitter-Follower” input stage for extremely low
input currents. This opens the door to a whole new range of INPUT B OUTPUT A
applications for analog voltage comparators.
NC GND
V1 – OUTPUT B
FEATURES
NC STROBE B
15ns propagation delay
Complementary output gates TOP VIEW
TTL or ECL compatible outputs Wide common-mode and differential voltage range
APPLICATIONS
Typical gain of 5000 A/D conversion
ECL-to-TTL interface TTL-to-ECL interface Memory sensing Optical data coupling
ORDERING INFORMATION
DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #
14-Pin Plastic Dual In-Line Package (DIP) 0 to +70°C NE527N 0405B 14-Pin Small Outline (SO) Package 0 to +70°C NE527D 0175D
EQUIVALENT SCHEMATIC
STROBE A V2 +
OUTPUT A
INPUT 6.13K
INPUT A
7.5K 7.5K OUTPUT B
STROBE B
315August 31, 1994 853-0906 13721
