OMRON Power Supply Other Conductive Level Switch K8DT-LS K8DT-LS Data Sheet
Summary
This conductive level controller system provides precise measurement and control for liquid levels in industrial settings. It features adjustable sensitivity (10 k to 100 kΩ) and an ON-delay timer, ideal for managing fluctuating surfaces and optimizing panel space. The manual serves as a comprehensive guide, detailing various output options (Relay/Transistor), mandatory electrode selection, detailed technical specifications, international safety standards compliance (UL listed), and wiring methods suitable for demanding applications like sewage and industrial water services.

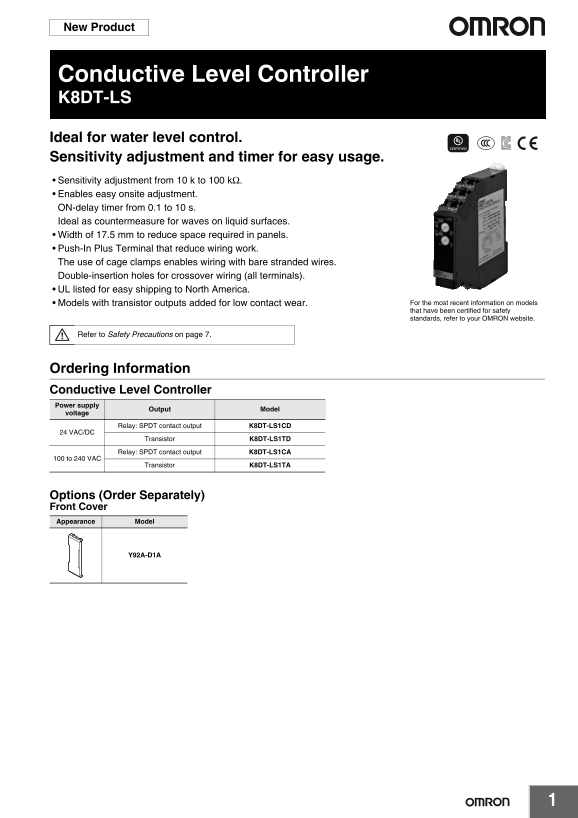

Page 1 Text Content
New Product
Conductive Level Controller K8DT-LS Ideal for water level control. Sensitivity adjustment and timer for easy usage. Sensitivity adjustment from 10 k to 100 kΩ. Enables easy onsite adjustment. ON-delay timer from 0.1 to 10 s. Ideal as countermeasure for waves on liquid surfaces. Width of 17.5 mm to reduce space required in panels. Push-In Plus Terminal that reduce wiring work. The use of cage clamps enables wiring with bare stranded wires. Double-insertion holes for crossover wiring (all terminals). UL listed for easy shipping to North America.
Models with transistor outputs added for low contact wear. For the most recent information on models that have been certified for safety standards, refer to your OMRON website.
Refer to Safety Precautions on page 7.
Ordering Information Conductive Level Controller Power supply
Output Model
voltage
Relay: SPDT contact output K8DT-LS1CD
24 VAC/DC
Transistor K8DT-LS1TD
Relay: SPDT contact output K8DT-LS1CA
100 to 240 VAC
Transistor K8DT-LS1TA
Options (Order Separately) Front Cover Appearance Model
Page Summary Contents For OMRON Power Supply Other Conductive Level Switch K8DT-LS K8DT-LS Data Sheet
Manual Details
| Brand | Omron |
|---|---|
| Pages | 12 |
| File Size | 3.05 MB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How should bare stranded wires be connected at the terminals?
Use cage clamps, and utilize double-insertion holes for crossover wiring at all terminals.
What is the user adjustable range for sensitivity and delay times?
Sensitivity adjusts from 10 kΩ to 100 kΩ, and the ON-delay timer can be adjusted from 0.1 to 10 s.
Does this controller offer options for output type?
The unit is available with either a Relay Output (SPDT contact) or a Transistor Output option.
What are the permissible ambient operating temperature limits?
The device can operate in an ambient range of -20 to 60°C, provided there is no condensation or icing.
