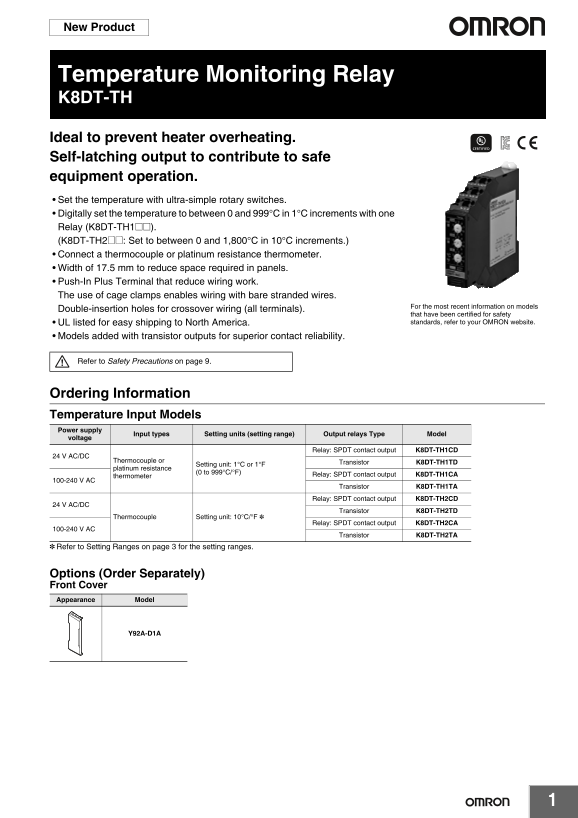

Temperature Monitoring Relay K8DT-TH Ideal to prevent heater overheating. Self-latching output to contribute to safe equipment operation. Set the temperature with ultra-simple rotary switches. Digitally set the temperature to between 0 and 999°C in 1°C increments with one Relay (K8DT-TH1@@). (K8DT-TH2@@: Set to between 0 and 1,800°C in 10°C increments.) Connect a thermocouple or platinum resistance thermometer. Width of 17.5 mm to reduce space required in panels. Push-In Plus Terminal that reduce wiring work. The use of cage clamps enables wiring with bare stranded wires.
For the most recent information on models
Double-insertion holes for crossover wiring (all terminals).
that have been certified for safety UL listed for easy shipping to North America. standards, refer to your OMRON website.
Models added with transistor outputs for superior contact reliability.
Refer to Safety Precautions on page 9.
Ordering Information Temperature Input Models Power supply
Input types Setting units (setting range) Output relays Type Model
voltage
Relay: SPDT contact output K8DT-TH1CD
24 V AC/DC
Thermocouple or Transistor K8DT-TH1TD
Setting unit: 1°C or 1°F
platinum resistance
(0 to 999°C/°F)
thermometer Relay: SPDT contact output K8DT-TH1CA
100-240 V AC
Transistor K8DT-TH1TA
Relay: SPDT contact output K8DT-TH2CD
24 V AC/DC
Transistor K8DT-TH2TD
Thermocouple Setting unit: 10°C/°F *
Relay: SPDT contact output K8DT-TH2CA
100-240 V AC
Transistor K8DT-TH2TA
Refer to Setting Ranges on page 3 for the setting ranges.
Options (Order Separately) Front Cover Appearance Model
