OMRON Power Other Relay Terminal G70D-SOC08 G70D-SOC08 Data Sheet
Summary
This space-saving G70D-SOC08 Relay Terminal provides reliable, eight-point electronic output for industrial automation systems. Designed for ease of use with tools-free relay replacement and enhanced safety features like a protective cover and surge absorption diodes. The comprehensive manual details precise specifications, including electrical ratings, long-term endurance figures, compatible accessories, and setup instructions. It is essential reading for engineers and technicians implementing or servicing high-performance PLC control panels requiring dependable, modular output capacity.
Page 1 Text Content

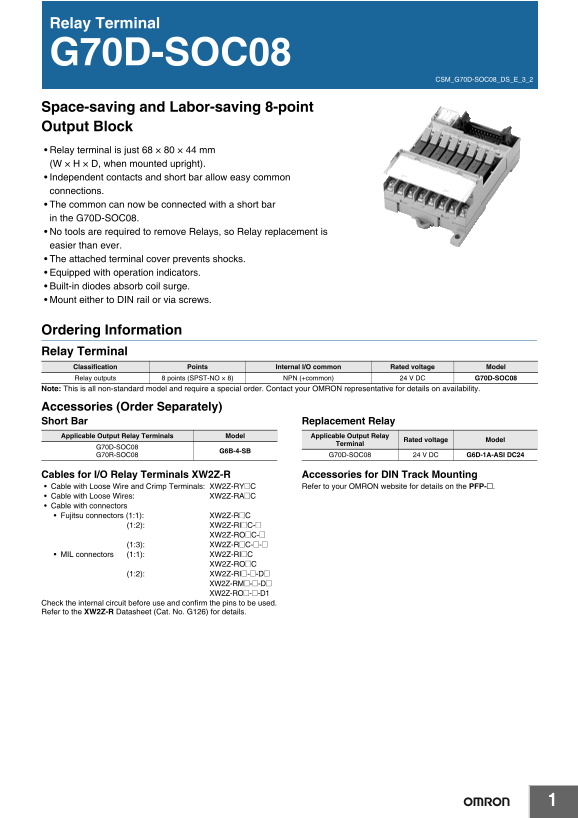

Relay Terminal
G70D-SOC08
CSM_G70D-SOC08_DS_E_3_2
Space-saving and Labor-saving 8-point Output Block Relay terminal is just 68 × 80 × 44 mm (W × H × D, when mounted upright). Independent contacts and short bar allow easy common connections. The common can now be connected with a short bar in the G70D-SOC08. No tools are required to remove Relays, so Relay replacement is easier than ever. The attached terminal cover prevents shocks. Equipped with operation indicators. Built-in diodes absorb coil surge. Mount either to DIN rail or via screws.
Ordering Information Relay Terminal Classification Points Internal I/O common Rated voltage Model
Relay outputs 8 points (SPST-NO × 8) NPN (+common) 24 V DC G70D-SOC08
Note: This is all non-standard model and require a special order. Contact your OMRON representative for details on availability.
Accessories (Order Separately) Short Bar Replacement Relay Applicable Output Relay Terminals Model Applicable Output Relay
Rated voltage Model
Terminal
G70D-SOC08
G6B-4-SB
G70R-SOC08 G70D-SOC08 24 V DC G6D-1A-ASI DC24
Cables for I/O Relay Terminals XW2Z-R Accessories for DIN Track Mounting Cable with Loose Wire and Crimp Terminals: XW2Z-RY@C Refer to your OMRON website for details on the PFP-@. Cable with Loose Wires: XW2Z-RA@C Cable with connectors Fujitsu connectors (1:1): XW2Z-R@C
(1:2): XW2Z-RI@C-@
XW2Z-RO@C-@
(1:3): XW2Z-R@C-@-@
MIL connectors (1:1): XW2Z-RI@C
XW2Z-RO@C
(1:2): XW2Z-RI@-@-D@
XW2Z-RM@-@-D@ XW2Z-RO@-@-D1
Check the internal circuit before use and confirm the pins to be used. Refer to the XW2Z-R Datasheet (Cat. No. G126) for details.
