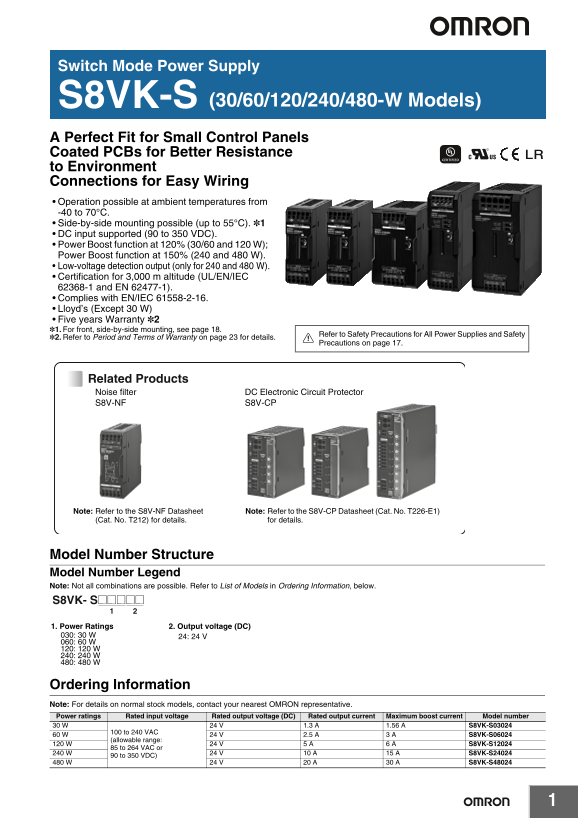

Switch Mode Power Supply
S8VK-S (30/60/120/240/480-W Models) A Perfect Fit for Small Control Panels Coated PCBs for Better Resistance LR to Environment Connections for Easy Wiring Operation possible at ambient temperatures from -40 to 70°C. Side-by-side mounting possible (up to 55°C). *1 DC input supported (90 to 350 VDC). Power Boost function at 120% (30/60 and 120 W); Power Boost function at 150% (240 and 480 W). Low-voltage detection output (only for 240 and 480 W). Certification for 3,000 m altitude (UL/EN/IEC 62368-1 and EN 62477-1). Complies with EN/IEC 61558-2-16. Lloyd’s (Except 30 W) Five years Warranty *2 *1. For front, side-by-side mounting, see page 18.
Refer to Safety Precautions for All Power Supplies and Safety
*2. Refer to Period and Terms of Warranty on page 23 for details.
Precautions on page 17.
Related Products Noise filter DC Electronic Circuit Protector S8V-NF S8V-CP
Note: Refer to the S8V-NF Datasheet Note: Refer to the S8V-CP Datasheet (Cat. No. T226-E1) (Cat. No. T212) for details. for details.
Model Number Structure Model Number Legend Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below. S8VK- S@@@@@
1. Power Ratings 2. Output voltage (DC) 030: 30 W 24: 24 V 060: 60 W 120: 120 W 240: 240 W 480: 480 W
Ordering Information Note: For details on normal stock models, contact your nearest OMRON representative. Power ratings Rated input voltage Rated output voltage (DC) Rated output current Maximum boost current Model number 30 W 24 V 1.3 A 1.56 A S8VK-S03024
100 to 240 VAC
60 W 24 V 2.5 A 3 A S8VK-S06024
(allowable range:
120 W 24 V 5 A 6 A S8VK-S12024
85 to 264 VAC or
240 W 24 V 10 A 15 A S8VK-S24024
90 to 350 VDC)
480 W 24 V 20 A 30 A S8VK-S48024
