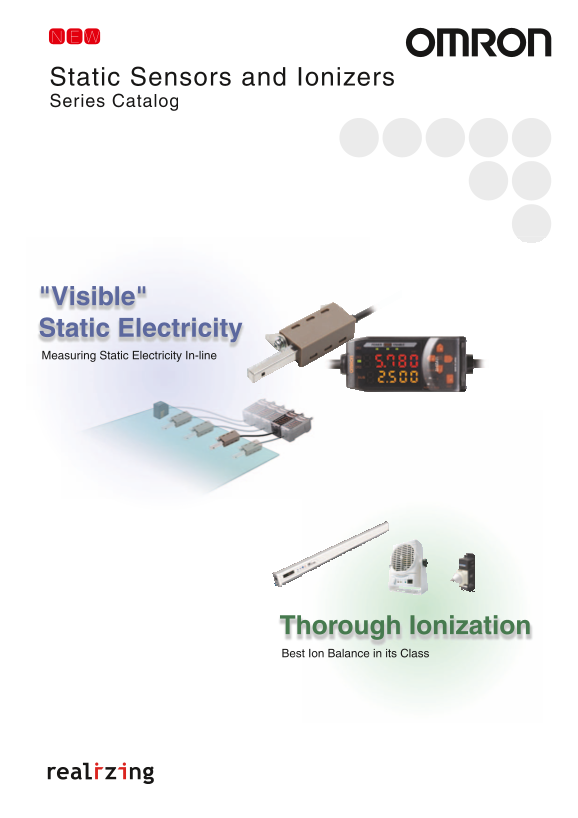

Static Sensors and Ionizers Series Catalog
"Visible" Static Electricity Measuring Static Electricity In-line
Thorough Ionization Best Ion Balance in its Class
Page Summary Contents For OMRON Power Supply Other Static Eliminators (High Performance Fan Type) ZJ-FA10 Static Sensors and Ionizers Series Catalog
Page 1
Static Sensors and Ionizers Series Catalog "Visible" Static Electricity Measuring Static Electricity In-line Thorough Ionization Best Ion Balance in its Class
Page 2
FA Making Static Electricity Visible Direct Display of Static Level ZJ-SD100/ZJ-SDA11 Electrostatic Sensor The compact Sensor Head (6 × 6 × 67 mm) and intelligent Digital Amplifier combine to visually...
Page 3
Making Static Electricity Visible Direct Display of Static Level ZJ-SD100/ZJ-SDA11 Electrostatic Sensor The compact Sensor Head (6 × 6 × 67 mm) and intelligent Digital Amplifier combine to visually di...
Page 4
Best Long-distance, High-precision Measurements in the Industry Smart Electrostatic Sensor ZJ-SD Series The ZJ-SD provides the highest detection accuracy in the industry when combined with a ZX Displa...
Page 5
Best Long-distance, High-precision Measurements in the Industry Smart Electrostatic Sensor ZJ-SD Series The ZJ-SD provides the highest detection accuracy in the industry when combined with a ZX Displa...
Page 6
Ordering Information Electrostatic Sensor Sensor Head Amplifier Appearance Sensing distance Model Appearance Cable length Power supply Output method Model 5 to 100 mm ZJ-SD100 2 m DC NPN output ZJ-SDA...
Page 7
ZJ-SD Li ne ar ity Engineering Data (Reference Value) Measurement Voltage vs. Linearity Measurement Distance vs. Error Measurement voltage (k V) Measurement distance (mm) rr or Measurement object: Cha...
Page 8
Two, R5 ZJ-SD Dimensions (Unit: mm) Electrostatic Sensor Accessories (Order Separately) Sensor Head Preamplifier Mounting Brackets ZJ-SD100 ZX-XBT1 ZX-XBT2 4 × R1.6 Mounting Hole Dimensions Angle 1 Tw...
Page 9
ZJ-SD Dimensions (Unit: mm) Electrostatic Sensor Accessories (Order Separately) Sensor Head Preamplifier Mounting Brackets ZJ-SD100 ZX-XBT1 ZX-XBT2 4 × R1.6 Mounting Hole Dimensions Angle 1 Two, 3.2 d...
Page 10
Ordering Information Ionizer Ionizer Accessories (sold separately) Basic Fan Type Model Appearance Model ZJ-FA20 ZJ-FA20 Replacement Filter ZJ9-FL120N1 (pack of 10) Replacement Discharger Electrode ZJ...
Page 11
Io ni za tio tim (s Ordering Information Ionizer Accessories (sold separately) Model Appearance Model ZJ-FA20 Replacement Filter ZJ9-FL120N1 (pack of 10) Replacement Discharger Electrode ZJ9-NDT06FN1 ...
Page 12
Improving Ease of Use Ionizer Digital Bar Ionizer ZJ-BAS Industry The Digital Ion Display Supports Safe, Reliable Settings. First FA From either the Remote Control or the Ionizer... The Digital Ion Di...
Page 13
Improving Ease of Use Ionizer Digital Bar Ionizer ZJ-BAS Industry The Digital Ion Display Supports Safe, Reliable Settings. First FA From either the Remote Control or the Ionizer... The Digital Ion Di...
Page 14
ZJ-BAS Io ni za tio tim (s Low Running Cost Ratings and Characteristics Ionizer I/O Cable Power Supply Cable M.P.S. Construction Prolongs the Required Maintenance Period by 5 Times ZJ-BAS ZJ-BAS-FC Se...
Page 15
Io ni za tio tim (s ZJ-BAS Low Running Cost Ratings and Characteristics Ionizer I/O Cable Power Supply Cable M.P.S. Construction Prolongs the Required Maintenance Period by 5 Times ZJ-BAS ZJ-BAS-FC Se...
Page 16
Io ni za tio tim (s Io ni za tio tim (s Ratings and Characteristics Ionizer AC Adaptor Item Model ZJ-BAS050 ZJ-BAS058 ZJ-BAS074 ZJ-BAS090 ZJ-BAS130 ZJ-BAS154 Item Model ZJ-BAS-PS01 Ionizer length (mm)...
Page 17
Io ni za tio tim (s Io ni za tio tim (s irf lo (L /m in or Io ni za tio tim (s ZJ-BAS (Units: mm) Dimensions Ratings and Characteristics Dimensional tolerance when not specified: International toleran...
Page 18
Product Configuration Ionizer Air Push Type Nozzles Ionizer KS1 ●Standard Nozzle KS1-AA1T●Tubes KS1-ANNS01 For Standard Nozzle FA KS1-ANNS-@ ●Shower Nozzle KS1-ANSW@@ ●Flat Nozzle Wide Range of Nozzle...
Page 19
Product Configuration Ionizer Air Push Type Nozzles Ionizer KS1 ●Standard Nozzle KS1-AA1T●Tubes KS1-ANNS01 For Standard Nozzle FA KS1-ANNS-@ ●Shower Nozzle KS1-ANSW@@ ●Flat Nozzle Wide Range of Nozzle...
Page 20
is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s Engineering Data (Reference Value) Dimensions (Unit: mm) Ionizer Standard Nozzle 60° Shower Nozzle 90° Shower Nozzle Flat Nozzle...
Page 21
is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is ch ar ge ti (s is...
Page 22
Dimensions MEMO Caps Optional Tubes Flexible Flat Nozzle Cap Flexible Shower Nozzle Caps Optional Tubes for Standard Nozzles KS1-ANDC-FT90 KS1-ANDC-SW@ KS1-ANNS-@ (29.5) ia 11.53 (Double walled) 60°60...
Page 23
Dimensions MEMO Caps Optional Tubes Flexible Flat Nozzle Cap Flexible Shower Nozzle Caps Optional Tubes for Standard Nozzles KS1-ANDC-FT90 KS1-ANDC-SW@ KS1-ANNS-@ (29.5) BC 11.53 (Double walled) 60°60...
Page 24
This document provides information mainly for selecting suitable models. Please read the Instruction Sheet carefully for information that the user must understand and accept before purchase, including...
