OMRON Power Supply Other Switching Power Supplies (15 30 50 100 150 300 600 1,500W Type) S8VM S82Y-FSG-S2[]Bracket for Replacement Instruction Sheet (Mounting Method) (ENG JPN)
Summary
This comprehensive technical manual provides detailed instructions for mounting a specialized replacement bracket designed to fit models within the S8JX and S8VM series. It is essential reading for technicians or engineers needing to ensure proper installation on various compatible industrial equipment. The guide includes extensive tables showing part compatibility, recommended tightening torques (M3/M4), and correct hardware identification, guaranteeing a precise and reliable mounting process every time.

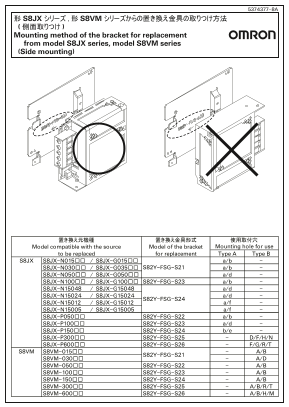

![OMRON Power Supply Other Switching Power Supplies (15 30 50 100 150 300 600 1,500W Type) S8VM S82Y-FSG-S2[]Bracket for Replacement Instruction Sheet (Mounting Method) (ENG JPN) - Page 1](https://img2.seekmanuals.com/20260605/2b34713a77/omron-power-supply-other-switching-power-supplies-15-30-50-100-150-300-600-1-500w-type-s8vm-s82y-fsg/1.png)
Page 1 Text Content
S8JX シリーズ S8VM シリーズからの置き換え金具の取りつけ方法 側面取りつけ
Mounting method of the bracket for replacement from model S8JX series, model S8VM series (Side mounting)
Model compatible with the source Model of the bracket Mounting hole for use to be replaced for replacement Type A Type B
S8JX S8JX-N015□□ S8JX-G015□□ a/b
S8JX-N030□□ S8JX-G035□□ S82Y-FSG-S21 a/b
S8JX-N050□□ S8JX-G050□□ a/d S8JX-N100□□ S8JX-G100□□ S82Y-FSG-S23 a/b S8JX-N15048 S8JX-G15048 a/d S8JX-N15024 S8JX-G15024 a/d
S82Y-FSG-S24
S8JX-N15012 S8JX-G15012 a/f S8JX-N15005 S8JX-G15005 a/f S8JX-P050□□ S82Y-FSG-S22 a/b S8JX-P100□□ S82Y-FSG-S23 a/d S8JX-P150□□ S82Y-FSG-S24 b/e S8JX-P300□□ S82Y-FSG-S25 D/F/H/N S8JX-P600□□ S82Y-FSG-S26 F/G/R/T
S8VM S8VM-015□□ A/B
S82Y-FSG-S21
S8VM-030□□ A/D S8VM-050□□ S82Y-FSG-S22 A/B S8VM-100□□ S82Y-FSG-S23 A/B S8VM-150□□ S82Y-FSG-S24 A/B S8VM-300□□ S82Y-FSG-S25 A/B/R/T S8VM-600□□ S82Y-FSG-S26 A/B/H/M
Page Summary Contents For OMRON Power Supply Other Switching Power Supplies (15 30 50 100 150 300 600 1,500W Type) S8VM S82Y-FSG-S2[]Bracket for Replacement Instruction Sheet (Mounting Method) (ENG JPN)
Manual Details
| Brand | Omron |
|---|---|
| Pages | 2 |
| File Size | 673.68 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I replace the bracket on models S8JX or S8VM?
Replacement instructions vary by specific model, listed with compatible source models (e.g., S82Y-FSG-S21 to S8JX-N015).
What is the recommended tightening torque for different screw sizes?
For M3 screws, use 0.54 N·m; for M4 screws, use 1.2 N·m.
Are screws included for the bracket replacement?
Yes, the manual indicates included screws (同梱ネジ) are provided based on the Type A or Type B application.
What physical mounting method is used for these brackets?
The installation involves side mounting (側面取りつけ).
