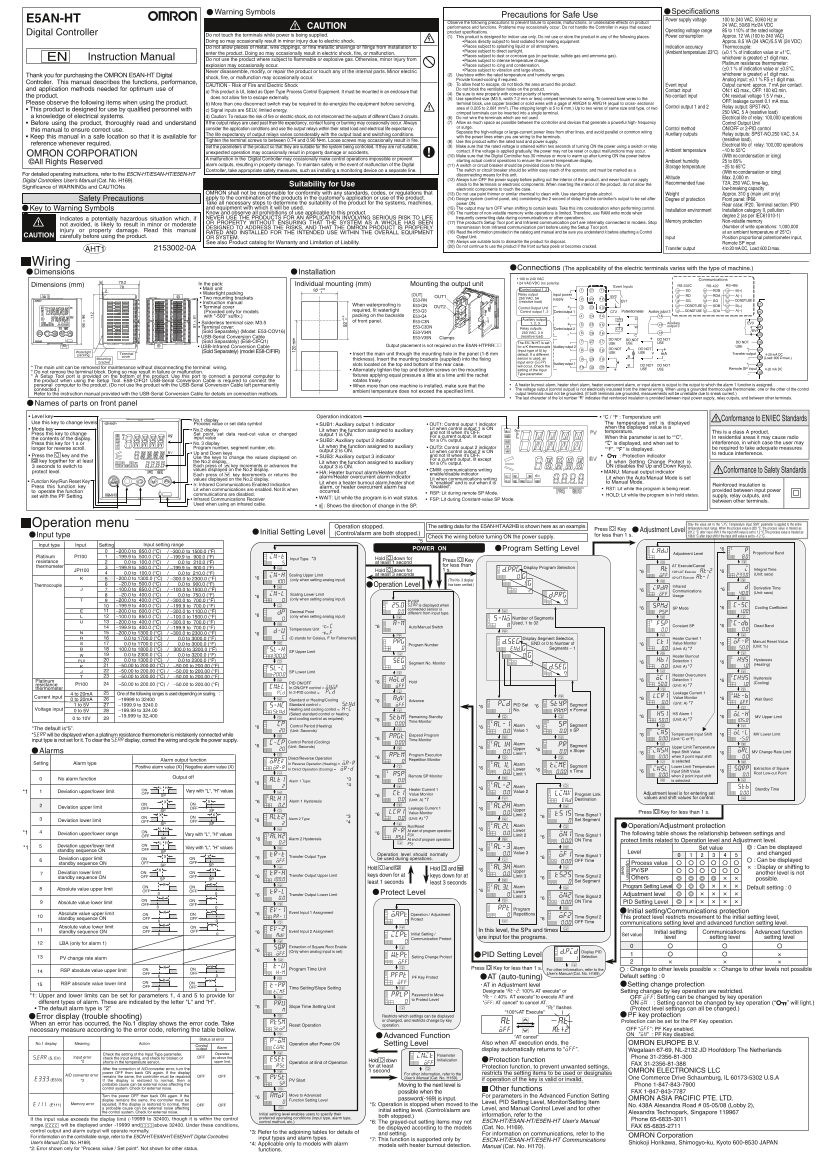

OMRON Timer Counter E5AN-HT E5EN-HT Digital Controller Instruction Sheet (ENG JPN)
Summary
This comprehensive manual provides detailed guidance for integrating, setting up, and safely operating the robust Digital Process Controller unit. It covers essential functions ranging from precise signal monitoring and measurement accuracy specifications to complex wiring procedures and electrical life expectancy guidelines. Designed for qualified industrial personnel, this guide ensures safe implementation of advanced control methods (ON/OFF or 2-PID) across various demanding operational environments, maximizing product reliability and performance.
Manual Details
| Brand | Omron |
|---|---|
| Pages | 2 |
| File Size | 984.54 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the primary safety hazards when using this controller?
The main risks involve electric shock, fire, and malfunction. Always follow precautions regarding voltage and proper wiring.
Can this digital controller be used in various environments?
No; it is designed for indoor use only and should avoid direct sunlight, splashing liquids, or corrosive/explosive gases.
What are the guidelines for connecting the output relays?
Use specified M3.5 crimped terminals with AWG24 to AWG14 wires, and note that relays have an expected life of 100,000 operations.
