Ideal for demanding industrial applications such as AC drive inverters and servo control systems. This high-current IGBT module is designed for reliable power switching at elevated voltages. The accompanying manual provides comprehensive technical data—including electrical ratings, thermal impedance curves, and transient performance characteristics—enabling engineers to optimize integration and ensure robust system design under critical operating conditions.

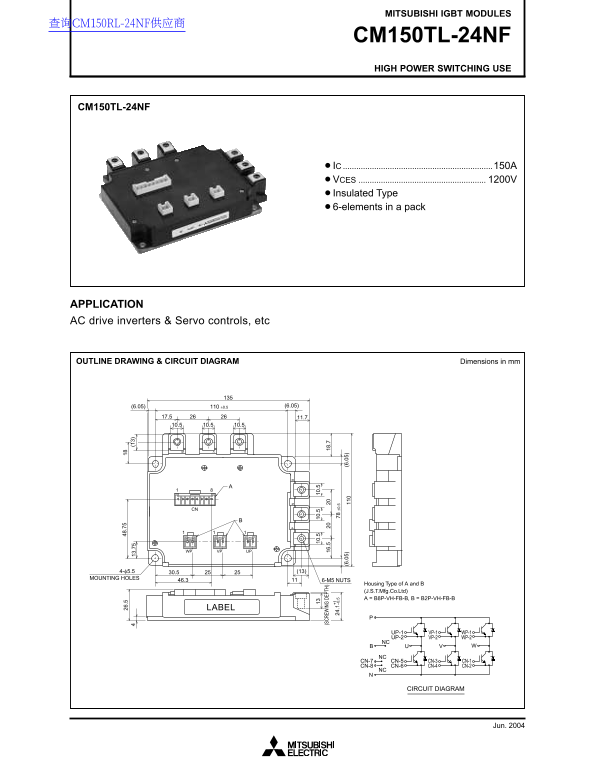

Page 1 Text Content
MITSUBISHI IGBT MODULES
查询CM150RL-24NF供应商
CM150TL-24NF HIGH POWER SWITCHING USE
CM150TL-24NF
¡IC ...................................................................150A ¡VCES 1200V ¡Insulated Type ¡6-elements in a pack
APPLICATION
.5 .5 .5 VW
AC drive inverters & Servo controls, etc
(S CR EW IN EP TH .5 .7
OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm
WP VP UP
MOUNTING HOLES 1146.3
6-M5 NUTS
Housing Type of A and B (J.S.T.Mfg.Co.Ltd) A = B8P-VH-FB-B, B = B2P-VH-FB-B
LABEL
UP-1 VP-1 WP-1 UP-2 VP-2 WP-2 NC
NC CN-7 CN-5 CN-3 CN-1
CN-8 CN-6 CN-4 CN-2
CIRCUIT DIAGRAM
Jun. 2004
Page Summary Contents For MITSUBISHI IGBT MODULES CM150TL-24NF HIGH POWER SWITCHING USE Manual, User Guide
Manual Details
| Brand | High Power |
|---|---|
| Pages | 5 |
| File Size | 58.18 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum rated collector current (IC)?
The absolute maximum rating for the collector current is 300 A (Pulse).
What is the recommended application range for this module?
It is suitable for AC drive inverters, Servo controls, and other applications.
What is the maximum junction temperature allowed during operation?
The junction temperature (Tj) should not increase beyond 150°C.
How is mounting torque recommended?
The required M5 torque strength for both main terminal and mounting holes is 2.5 to 3.5 N·m.
