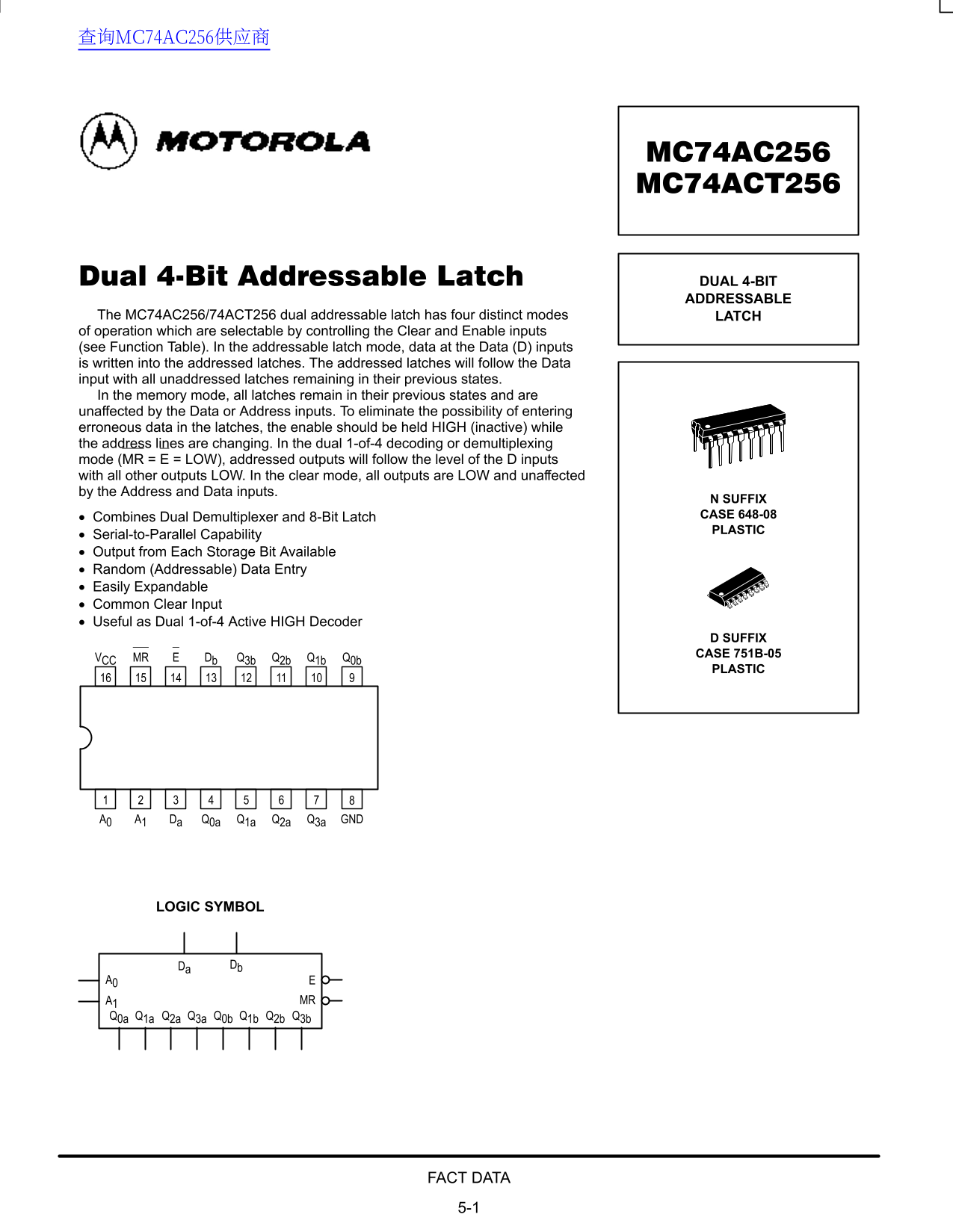

Motorola MC74AC256 MC74ACT256 Data Manual / Handbook

查询MC74AC256供应商

DUAL 4-BIT ADDRESSABLE

The MC74AC256/74ACT256 dual addressable latch has four distinct modes LATCH of operation which are selectable by controlling the Clear and Enable inputs (see Function Table). In the addressable latch mode, data at the Data (D) inputs is written into the addressed latches. The addressed latches will follow the Data input with all unaddressed latches remaining in their previous states. In the memory mode, all latches remain in their previous states and are unaffected by the Data or Address inputs. To eliminate the possibility of entering erroneous data in the latches, the enable should be held HIGH (inactive) while the address lines are changing. In the dual 1-of-4 decoding or demultiplexing mode (MR = E = LOW), addressed outputs will follow the level of the D inputs with all other outputs LOW. In the clear mode, all outputs are LOW and unaffected by the Address and Data inputs.

N SUFFIX Combines Dual Demultiplexer and 8-Bit Latch CASE 648-08 PLASTIC

Serial-to-Parallel Capability Output from Each Storage Bit Available Random (Addressable) Data Entry Easily Expandable Common Clear Input Useful as Dual 1-of-4 Active HIGH Decoder

D SUFFIX CASE 751B-05

VCC MR Db Q3b Q2b Q1b Q0b

PLASTIC

A0 A1 Da Q0a Q1a Q2a Q3a GND

LOGIC SYMBOL

Da Db

A1 MR

FACT DATA 5-1
