This technical manual provides comprehensive specifications for the MC74AC/MC74ACT series of Quad 2-Input AND Gate logic chips. It is designed for electrical engineers and hardware designers needing reliable digital circuit components. The documentation details all critical operational parameters, including voltage ranges, timing characteristics, maximum ratings, and detailed AC/DC performance data to ensure proper application in complex electronic systems.

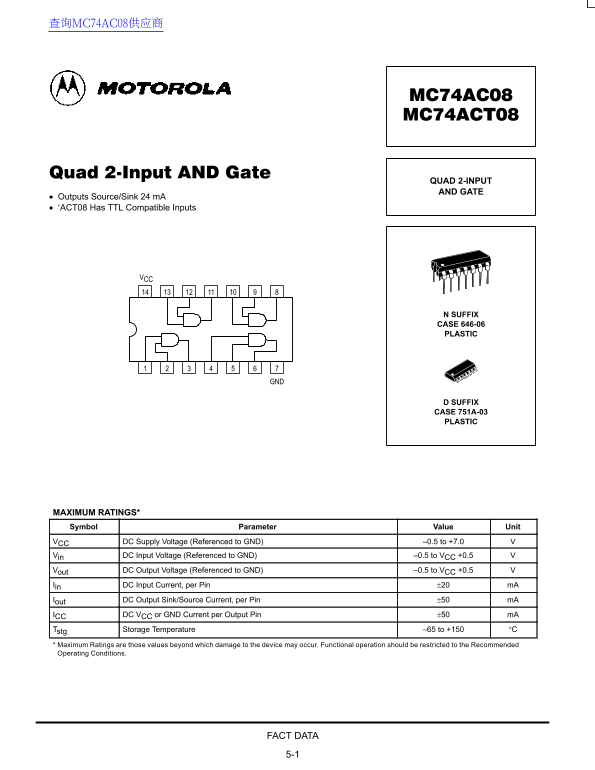

Page 1 Text Content
查询MC74AC08供应商
QUAD 2-INPUT AND GATE
Outputs Source/Sink 24 m A ′ACT08 Has TTL Compatible Inputs
N SUFFIX CASE 646-06 PLASTIC
D SUFFIX CASE 751A-03 PLASTIC
MAXIMUM RATINGS* Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) –0.5 to +7.0 Vin DC Input Voltage (Referenced to GND) –0.5 to VCC +0.5 Vout DC Output Voltage (Referenced to GND) –0.5 to VCC +0.5 Iin DC Input Current, per Pin ±20 m A Iout DC Output Sink/Source Current, per Pin ±50 m A ICC DC VCC or GND Current per Output Pin ±50 m A Tstg Storage Temperature –65 to +150 °C Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
FACT DATA 5-1
Page Summary Contents For Motorola MC74AC08 MC74ACT08 Data Sheet / Manual
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 5 |
| File Size | 130.81 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended supply voltage range for this chip?
The typical supply voltage (VCC) should be between 4.5 V and 5.5 V.
What temperature range can the device operate in?
The operating ambient temperature range is from -40°C to +85°C.
How much current can the output sink or source?
The maximum output current (IOH/IOL) limit is ±24 mA at 5.5 V supply.
Can I use this for signals other than TTL levels?
Yes, it supports Source/Sink outputs and handles various input voltage ranges based on the application.
