This is a high-performance 16:1 multiplexer designed for demanding digital systems requiring exceptional signal integrity. Featuring a differential output and ultra-low skew of only 50ps, it efficiently routes one input from sixteen data sources. The accompanying datasheet provides comprehensive technical documentation, including precise DC/AC electrical characteristics, timing parameters, pinout diagrams, and application guidelines needed for proper integration. It is essential reading for hardware engineers and digital logic designers building high-speed, reliable electronics circuits.

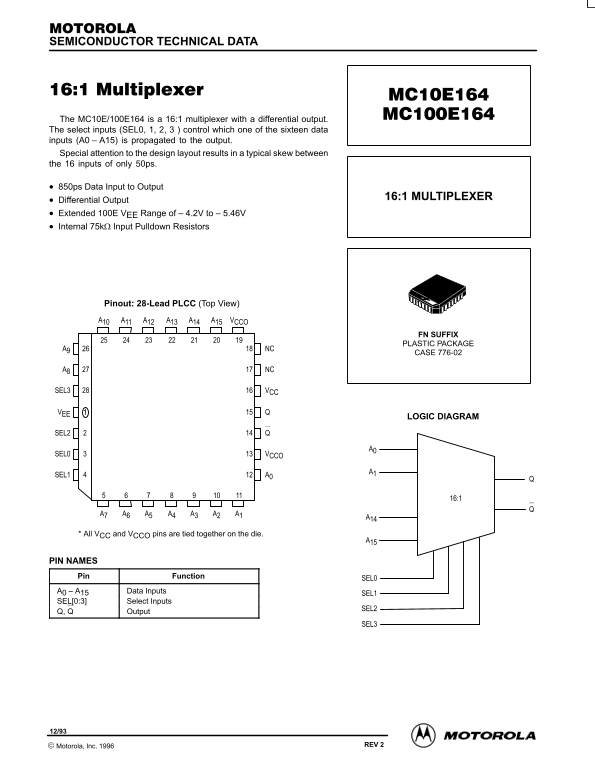

Page 1 Text Content
SEMICONDUCTOR TECHNICAL DATA
The MC10E/100E164 is a 16:1 multiplexer with a differential output. The select inputs (SEL0, 1, 2, 3 ) control which one of the sixteen data inputs (A0 A15) is propagated to the output. Special attention to the design layout results in a typical skew between the 16 inputs of only 50ps.
850ps Data Input to Output
16:1 MULTIPLEXER
Differential Output Extended 100E VEE Range of – 4.2V to – 5.46V Internal 75kΩ Input Pulldown Resistors
Pinout: 28-Lead PLCC (Top View) A10 A11 A12 A13 A14 A15 VCCO
FN SUFFIX PLASTIC PACKAGE
A9 NC
CASE 776-02
A8 NC
SEL3 VCC
LOGIC DIAGRAM
SEL0 VCCO
SEL1 A0
* All VCC and VCCO pins are tied together on the die.
PIN NAMES Pin Function
A0 A15 Data Inputs
SEL[0:3] Select Inputs
Q, Q Output
2–1 REV 2 Motorola, Inc. 1996
Page Summary Contents For Motorola MC10E164 MC100E164 Data Sheet User Manual
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 5 |
| File Size | 63.62 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical internal skew between the data inputs?
The typical within device skew is only 50 ps.
How are the sixteen data inputs selected for the output?
Selection is controlled by the four select inputs (SEL3, SEL2, SEL1, and SEL0).
What specialized warning exists regarding the use of this semiconductor component?
It should not be used in systems intended for surgical implant or to support life/prevent death.
