MOTOROLA Document order number: MC33888

Rev 3.0, 10/2004

SEMICONDUCTOR TECHNICAL DATA

Product Preview

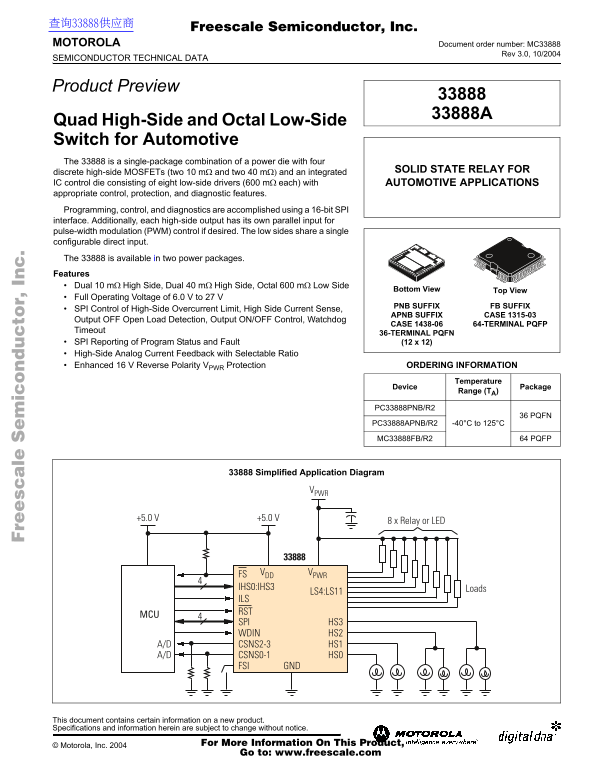

Quad High-Side and Octal Low-Side Switch for Automotive The 33888 is a single-package combination of a power die with four

SOLID STATE RELAY FOR

discrete high-side MOSFETs (two 10 mΩ and two 40 mΩ) and an integrated IC control die consisting of eight low-side drivers (600 mΩ each) with AUTOMOTIVE APPLICATIONS appropriate control, protection, and diagnostic features. Programming, control, and diagnostics are accomplished using a 16-bit SPI interface. Additionally, each high-side output has its own parallel input for pulse-width modulation (PWM) control if desired. The low sides share a single configurable direct input. The 33888 is available in two power packages. Features Dual 10 mΩ High Side, Dual 40 mΩ High Side, Octal 600 mΩ Low Side

Bottom View Top View

Full Operating Voltage of 6.0 V to 27

PNB SUFFIX FB SUFFIX

SPI Control of High-Side Overcurrent Limit, High Side Current Sense,

APNB SUFFIX CASE 1315-03

Output OFF Open Load Detection, Output ON/OFF Control, Watchdog

CASE 1438-06 64-TERMINAL PQFP

Timeout

36-TERMINAL PQFN

SPI Reporting of Program Status and Fault (12 x 12) High-Side Analog Current Feedback with Selectable Ratio

Enhanced 16 V Reverse Polarity VPWR Protection ORDERING INFORMATION

Temperature

Device Package

Range (TA)

PC33888PNB/R2

36 PQFN

PC33888APNB/R2 -40°C to 125°C

MC33888FB/R2 64 PQFP

33888 Simplified Application Diagram

8 x Relay or LED

FS VDD4 VPWR IHS0:IHS3 Loads

LS4:LS11

ILS RST

SPI HS3 WDIN HS2

A/D CSNS2-3 HS1 A/D CSNS0-1 HS0

FSI GND

This document contains certain information on a new product. Specifications and information herein are subject to change without notice.

For More Information On This Product,

© Motorola, Inc. 2004

Go to: www.freescale.com

Page Summary Contents For Motorola 33888 33888A Data Sheet / Manual

Page 1 re sc le ic to r, Freescale Semiconductor, Inc. MOTOROLA Document order number: MC33888 Rev 3.0, 10/2004 SEMICONDUCTOR TECHNICAL DATA Product Preview Quad High-Side and Octal Low-Side Switch for Autom...
Page 2 re sc le ic to r, Freescale Semiconductor, Inc. Table 1. Features Comparison: 33888 and 33888A For details, Parameter Symbol Condition 33888A see page Undervoltage Low-Side Output Shutdown VPWRUV 5.0 ...
Page 3 re sc le ic to r, Freescale Semiconductor, Inc. Transparent Top View of Package CS WDIN SCLK FSI SI RST (Control Die) ILS WAKE GND S3 GND IHS3 IHS1 IHS2 IHS0 Internally Connected to VPWR CSNS2-3 CSNS0...
Page 4 re sc le ic to r, Freescale Semiconductor, Inc. TERMINAL DEFINITIONS FOR PQFN (continued) Functional descriptions of many of these terminals can be found in the System/Application Information section ...
Page 5 re sc le ic to r, Freescale Semiconductor, Inc. TERMINAL DEFINITIONS FOR PQFN (continued) Functional descriptions of many of these terminals can be found in the System/Application Information section ...
Page 6 re sc le ic to r, Freescale Semiconductor, Inc. FSI NC WDIN NC FS NC VPWR HS0 LS4 HS0 GND HS0 LS5 HS0 LS6 HS0 GND HS0 IL LS7 HS0 IH LS8 HS1 IH GND HS1 S2 -3 LS9 HS1 LS10 HS1 GND HS1 LS11 HS1 VDD HS1 S...
Page 7 re sc le ic to r, Freescale Semiconductor, Inc. TERMINAL DEFINITIONS FOR PQFP (continued) Functional descriptions of many of these terminals can be found in the System/Application Information section ...
Page 8 re sc le ic to r, Freescale Semiconductor, Inc. TERMINAL DEFINITIONS FOR PQFP (continued) Functional descriptions of many of these terminals can be found in the System/Application Information section ...
Page 9 re sc le ic to r, Freescale Semiconductor, Inc. MAXIMUM RATINGS All voltages are with respect to ground unless otherwise noted. Rating Symbol Value Unit ELECTRICAL RATINGS Power Supply Voltage VPWR St...
Page 10 re sc le ic to r, Freescale Semiconductor, Inc. MAXIMUM RATINGS (continued) All voltages are with respect to ground unless otherwise noted. Rating Symbol Value Unit THERMAL RATINGS Operating Temperatu...
Page 11 re sc le ic to r, Freescale Semiconductor, Inc. STATIC ELECTRICAL CHARACTERISTICS Characteristics noted under conditions 6.0 V ≤ VPWR ≤ 27 V, 4.5 V ≤ VDD ≤ 5.5 V, -40°C ≤ TJ ≤ 150°C unless otherwise n...
Page 12 re sc le ic to r, Freescale Semiconductor, Inc. STATIC ELECTRICAL CHARACTERISTICS (continued) Characteristics noted under conditions 6.0 V ≤ VPWR ≤ 27 V, 4.5 V ≤ VDD ≤ 5.5 V, -40°C ≤ TJ ≤ 150°C unless...
Page 13 re sc le ic to r, Freescale Semiconductor, Inc. STATIC ELECTRICAL CHARACTERISTICS (continued) Characteristics noted under conditions 6.0 V ≤ VPWR ≤ 27 V, 4.5 V ≤ VDD ≤ 5.5 V, -40°C ≤ TJ ≤ 150°C unless...
Page 14 re sc le ic to r, Freescale Semiconductor, Inc. STATIC ELECTRICAL CHARACTERISTICS (continued) Characteristics noted under conditions 6.0 V ≤ VPWR ≤ 27 V, 4.5 V ≤ VDD ≤ 5.5 V, -40°C ≤ TJ ≤ 150°C unless...
Page 15 re sc le ic to r, Freescale Semiconductor, Inc. STATIC ELECTRICAL CHARACTERISTICS (continued) Characteristics noted under conditions 6.0 V ≤ VPWR ≤ 27 V, 4.5 V ≤ VDD ≤ 5.5 V, -40°C ≤ TJ ≤ 150°C unless...
Page 16 re sc le ic to r, Freescale Semiconductor, Inc. DYNAMIC ELECTRICAL CHARACTERISTICS Characteristics noted under conditions 6.0 V ≤ VPWR ≤ 27 V, 4.5 V ≤ VDD ≤ 5.5 V, -40°C ≤ TJ ≤ 150°C unless otherwise ...
Page 17 re sc le ic to r, Freescale Semiconductor, Inc. DYNAMIC ELECTRICAL CHARACTERISTICS (continued) Characteristics noted under conditions 6.0 V ≤ VPWR ≤ 27 V, 4.5 V ≤ VDD ≤ 5.5 V, -40°C ≤ TJ ≤ 150°C unles...
Page 18 re sc le ic to r, Freescale Semiconductor, Inc. Timing Diagrams Direct input or spi bit Direct Input or SPI Bit VP VPWR VPWR-0.5 V VPWR - 0.5V SRF SRf_slow SLOW SRR_SLOW SRr_slow VPWR-3.0 V VPWR - 3V ...
Page 19 re sc le ic to r, Freescale Semiconductor, Inc. SYSTEM/APPLICATION INFORMATION INTRODUCTION This 33888 is a single-package combination of a power die simplified application diagram, page 2). The devic...
Page 20 re sc le ic to r, Freescale Semiconductor, Inc. SI D15 D1 D2 D3 D4 D5 D6 D7 D8 D9 D14 D13 D12 D11 D10 D0 OD13 OD14 OD15 OD6 OD7 OD8 OD9 OD10 OD11 OD1 OD2 OD3 OD4 OD5 OD0 SO OD12 Notes 1. RST is in a l...
Page 21 re sc le ic to r, Freescale Semiconductor, Inc. Table 2. SI Message Bit Assignment (continued) Table 2. SI Message Bit Assignment Bit Sig SI Msg Bit Message Bit Description Bit Sig SI Msg Bit Message ...
Page 22 re sc le ic to r, Freescale Semiconductor, Inc. Address 110—Watchdog and Current Sense Configuration Address 001—Open Load Configuration Register (OLCR) Register (WDCSCR) The OLCR register allows the ...
Page 23 re sc le ic to r, Freescale Semiconductor, Inc. Table 4. Serial Output Bit Assignment (continued) Table 4. Serial Output Bit Assignment SO Bit Sig Message Bit Description Bit Sig Message Bit Descripti...
Page 24 re sc le ic to r, Freescale Semiconductor, Inc. Default Mode Overtemperature Fault The default mode describes the state of the device after first The 33888 incorporates overtemperature detection and a...
Page 25 re sc le ic to r, Freescale Semiconductor, Inc. LOW = Logic 0 MOSFET OUT OUTPUT VOFD(THRES)LS VTHRES Figure 6. Low-Side Output OFF Open Load Detection Overcurrent Fault Requirements: Low-Side Output N...
Page 26 re sc le ic to r, Freescale Semiconductor, Inc. HIGH = Fault RL MOSFET ON Digital Analog VOFD(THRES)LS VTHRES Figure 7. Low-Side Short Circuit Detection and Analog Current Limit Undervoltage Shutdown ...
Page 27 re sc le ic to r, Freescale Semiconductor, Inc. PACKAGE INFORMATION Soldering Information The maximum peak temperature during the soldering process should not exceed 230°C. The time at maximum The 338...
Page 28 re sc le ic to r, Freescale Semiconductor, Inc. PACKAGE DIMENSIONS PNB SUFFIX APNB SUFFIX 36-TERMINAL PQFN NONLEADED PACKAGE CASE 1438-06 ISSUE E (Top View) PIN 1 INDEX AREA PIN NUMBER REFERENCE ONLY ...
Page 29 re sc le ic to r, Freescale Semiconductor, Inc. FB SUFFIX 64-TERMINAL PQFP PLASTIC PACKAGE CASE 1315-03 ISSUE B PIN ONE ID 2X E2 BOTTOM VIEW b1 4X SECTION W-W NOTES: 1. DIMENSIONS ARE IN MILLIMETERS. ...
Page 30 re sc le ic to r, Freescale Semiconductor, Inc. NOTES MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA For More Information On This Product, Go to: www.freescale.com
Page 31 re sc le ic to r, Freescale Semiconductor, Inc. NOTES MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA For More Information On This Product, Go to: www.freescale.com
Page 32 re sc le ic to r, Freescale Semiconductor, Inc. Information in this document is provided solely to enable system and software implementers to use Motorola products. There are no express or implied cop...
