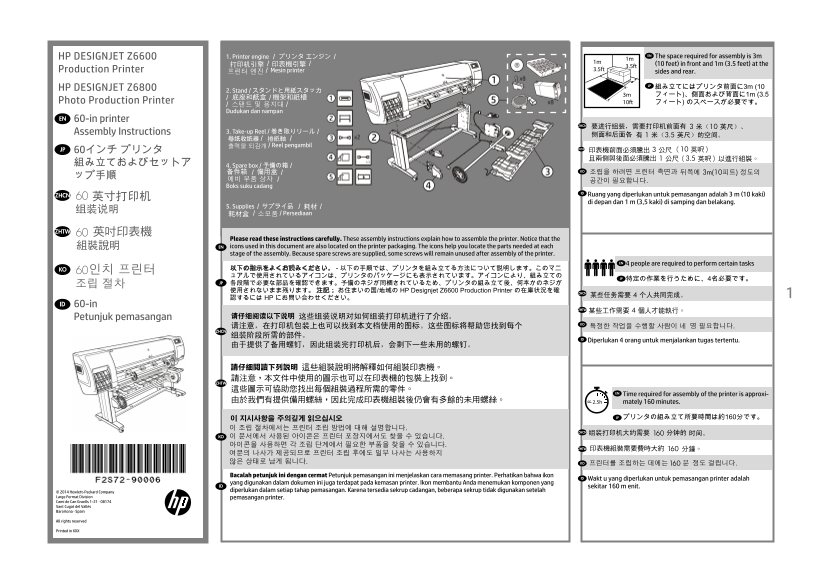

Page 1
1. Printer engine / プリンタ エンジン / EN The space required for assembly is 3m HP DESIGNJET Z6600 1m (10 feet) in front and 1m (3.5 feet) at the 3.5ft Production Printer / Mesin printer 3.5ft sides and rear...
Page 2
EN Remove the packaging JP パッケージの開梱 ZHCN ZHTW Lepaskan kemasan Carefully cut the strap around the boxes. Make Remove the boxes shown. EN sure that the boxes don’t fall when the strap is cut. 図のように箱を取り...
Page 3
EN Assemble the stand JP スタンドの組み立て ZHCN ZHTW Memasang dudukan EN Remove boxes and foam shown. Remove the first tray from the box shown. Lower the left side of the cross-brace onto the box marked L and...
Page 4
Locate the bag of screws and the screwdriver provided. Remove the left leg from the box, and then remove the Lower the left leg onto the left side of the cross-brace. Use four screws on the inside of ...
Page 5
Use two screws on the outside of the left leg to attach Lower the right leg onto the right side of the cross-brace. Use four screws on the inside of the right leg to attach Use two screws on the outsi...
Page 6
EN Use four screws to attach the cross-bar to the legs. Notice that there is anti-slip material around two of the Place a foot on the left leg. There are pins to help you Use four screws to attach the...
Page 7
Position the other foot on the right leg. There are pins Use four screws to attach the foot to the right leg. Roll the stand assembly into its upright position. Attach the left stand spacer to the top...
Page 8
EN Attach the printer engine to the stand JP スタンドへのプリンタ エンジン の取り付け ZHCN ZHTW Pasang mesin printer ke dudukan Attach the right stand spacer to the top of the right leg. Position the left and right leg ...
Page 9
Pull open the protective plastic from the base of the Lift the stand assembly onto the printer engine. The Use one screw to attach the right side of the stand to Use two screws to attach the left side...
Page 10
Place the spare box and the comsumables box against Rotate the printer onto the spare box and the Rotate the printer until the back of the printer rests on Remove the pallet before lifting the printer...
Page 11
EN Assemble the take-up reel JP 巻き取りリールの組み立て x2 ZHCN ZHTW KO Memasang reel pengambil Use the hand holds at the rear of the printer engine Remove the two foam end-packs, and then remove the Remove the ...
Page 12
Identify the four holes on the inside of the right Locate the bag of screws that is included in the Insert two screws into the two front holes. Attach the take-up reel motor to the two screws, EN leg....
Page 13
Use two screws to attach the rear of the take-up Use the serie plug to connect the take-up reel motor to Identify the three holes on the inside of the left Insert two screws into the two front holes. ...
Page 14
Attach the left side of the take-up reel assembly Use one screw to attach the rear of the left side Use four screws to attach the take-up reel At the back of the printer, place one bar with the label ...
Page 15
At the back of the printer, place the 2nd bar with the label IMPORTANT Move the printer to its final location. Once Move the front right wheel so that it faces forward (B), Slide the foot sensor unit ...
Page 16
Attach the cross-brace sensor unit onto the left side of Connect the sensor cable to the rear of the Use the clips provided to attach the sensor cable Remove the take-up reel loading table from the bo...
Page 17
Attach the take-up reel loading table by inserting Attach the grounding cable to the metal plate installed Carefully lift the central core tube. The central Remove the take-up reel spindle from the co...
Page 18
EN Slide the black hub onto the spindle up to the Tighten the plastic nut on the black hub. Loosen the plastic nut on the blue hub. Slide the blue hub onto the spindle. first mark. Tighten the plastic...
Page 19
EN Unpack more components JP その他のコンポーネントの開梱 ZHCN ZHTW Membuka kemasan komponen lain EN Raise the take-up reel deflector to its upright position. Unlock the take-up reel by pushing the spindle lever to...
Page 20
Remove the protective covering from the printer window Remove the packing tapes marked 1 to 7 from the Open the printer window, and then remove the packing Remove the packing tape (1), then remove the...
Page 21
EN Install the ink supplies JP インク サプライ品の取り付け ZHCN ZHTW Memasang persediaan tinta Plug the Gigabit Ethernet cable into the Gigabit Ethernet Pass the Gigabit Ethernet cable through the hook at the Plug...
Page 22
Turn the Power switch to the On position at the If the power light on the front panel remains off, press Wait until this message appears on the front panel (~1 Select your region and press OK to conti...
Page 23
Your region appears highlighted on the map for A message appears to inform you about supported ink Wait until this message appears. The front panel guides To release the ink cartridge drawer, gently p...
Page 24
Shake the ink cartridge vigorously for about 15 seconds. Place the ink cartridge in the ink cartridge drawer. The Push the ink cartridge drawer back into the printer until The printer “beeps” when the...
Page 25
Follow the same instructions to insert the other seven Open the printer window, and then remove the packing Remove the packing tape that is holding down the Pull up and release the blue latch on top o...
Page 26
Remove the big yellow label that covers the setup Open the window. When the above question on the front panel of your Open window and printhead cover to access printheads. EN purgers. Ensure Setup pur...
Page 27
Lower the blue latch to close the printhead cover. Select: Wait until this message appears on the front panel. Pull open the maintenance cartridge door, which is EN Pull down to lock the blue latch on...
Page 28
Remove the transparent shipping tray. Wait until this message appears on the front panel Remove all the setup purgers. Remove the two protective covers on the new printhead. Insert the maintenance car...
Page 29
Lower all of the printheads vertically into their correct Make sure that the printheads are correctly seated. If a “Reseat” message appears on the front panel, check Close the carriage assembly cover....
Page 30
Make sure that the blue latch is correctly engaged, and Close the printer window. Wait until the Ready for paper message appears on the Select the altitude where the printer is located. To select then...
Page 31
EN Load the paper JP 用紙の取り付け ZHCN ZHTW Isikan kertas EN Lift the spindle lock lever. Remove the spindle from the printer. Unlock and remove the blue hub from the left end of the spindle. Keep the spin...
Page 32
Place a roll of paper in the middle of the take up reel Make sure that the black hub on the right side of the The right hub of the spindle has two positions: one for Slide the blue hub onto the spindl...
Page 33
With the blue hub on the left, lift the take-up reel From the front panel, select the paper icon and then Select Load roll and then press the OK button. Insert the lead-edge of the paper into the prin...
Page 34
Macintosh* Windows** Confim the type and length of the paper roll that you On the front panel, select the paper type and paper The printer automatically aligns the printheads and Please do not try to ...
Page 35
EN ZHCN ZHTWJP Note for MAC & Windows: Mac および Windows MAC 和 Windows MAC 和 Windows 的注意事項： You must fist install the printer driver software on the に関する注記： 最初に、プリンタ ドライバ ソフトウェアを 注意事项： 必须先在计算机上安装打印机...
Page 36
Mac 및 Windows 참고: Catatan untuk MAC & Windows: 먼저 프린터 드라이버 소프트웨어를 컴퓨터에 Anda harus terlebih dulu menginstal perangkat lunak 설치합니다. (컴퓨터가 인터넷에 연결되어 있는지 driver printer di komputer (pastikan komputer ...
