Page 1

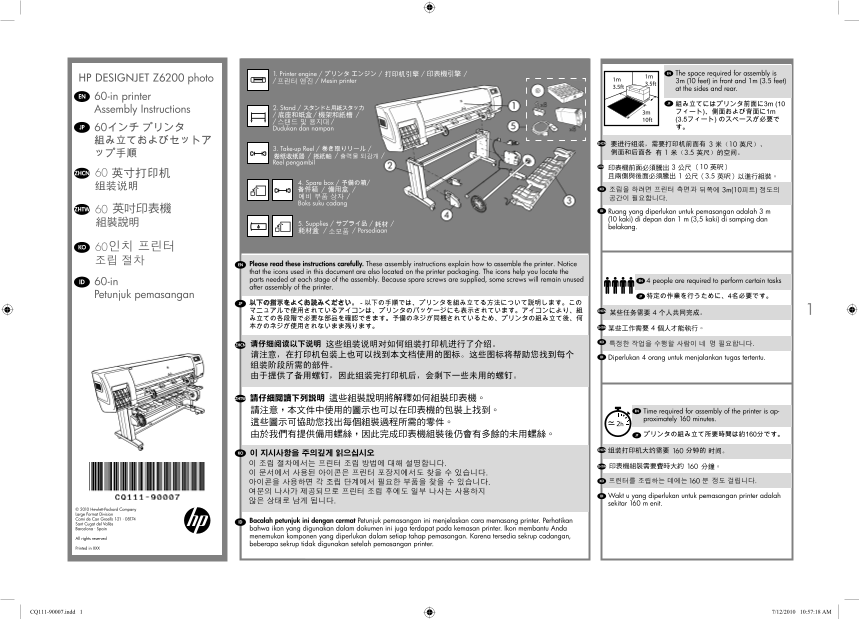

1. Printer engine / プリンタ エンジン / / / EN The space required for assembly is HP DESIGNJET Z6200 photo / / Mesin printer 1m 3m (10 feet) in front and 1m (3.5 feet) 3.5ft 3.5ft at the sides and rear. EN 60...
Page 2
EN Remove the packaging JP パッケージの開梱 ZHCN ZHTW Lepaskan kemasan Carefully cut the strap around the boxes. Make Remove the boxes shown. sure that the boxes don’t fall when the strap is EN cut. 図のように箱を取り...
Page 3
EN Assemble the stand JP スタンドの組み立て ZHCN ZHTW Memasang dudukan EN Remove boxes and foam shown. Remove the first tray from the box shown. Lower the left side of the cross-brace onto the box marked L and...
Page 4
Locate the bag of screws and the screwdriver Remove the left leg from the box, and then remove the Lower the left leg onto the left side of the cross-brace. Use four screws on the inside of the left l...
Page 5
Use two screws on the outside of the left leg to attach Lower the right leg onto the right side of the cross- Use four screws on the inside of the right leg to attach Use two screws on the outside of ...
Page 6
EN Use four screws to attach the cross-bar to the legs. Notice that there is anti-slip material around two of the Place a foot on the left leg. There are pins to help you Use four screws to attach the...
Page 7
Position the other foot on the right leg. There are pins Use four screws to attach the foot to the right leg. Roll the stand assembly into its upright position. Attach the left stand spacer to the top...
Page 8
EN Attach the printer engine to the stand JP スタンドへのプリンタ エンジン の取り付け ZHCN ZHTW KO Pasang mesin printer ke dudukan Attach the right stand spacer to the top of the right Position the left and right leg co...
Page 9
Pull open the protective plastic from the base of the Lift the stand assembly onto the printer engine. The Use one screw to attach the right side of the stand to Use two screws to attach the left side...
Page 10
Place the spare box and the comsumables box against Rotate the printer onto the spare box and the Rotate the printer until the back of the printer rests Remove the pallet before lifting the printer to...
Page 11
EN Assemble the take-up reel JP 巻き取りリールの組み立て x2 ZHCN ZHTW KO Memasang reel pengambil Use the hand holds at the rear of the printer engine Remove the two foam end-packs, and then remove the Remove the ...
Page 12
Identify the four holes on the inside of the right Locate the bag of screws that is included in the Insert two screws into the two front holes. Attach the take-up reel motor to the two screws, EN leg....
Page 13
Use two screws to attach the rear of the take-up Use the serie plug to connect the take-up reel motor to Identify the three holes on the inside of the left Insert two screws into the two front holes. ...
Page 14
Attach the left side of the take-up reel assembly Use one screw to attach the rear of the left side Use four screws to attach the take-up reel IMPORTANT Move the printer to its final location. to the ...
Page 15
Move the front right wheel so that it faces forward (B), Slide the foot sensor unit onto the right foot, and then Attach the cross-brace sensor unit onto the left side of Connect the sensor cable to t...
Page 16
Use the clips provided to attach the sensor cable Remove the take-up reel loading table from the box. Attach the take-up reel loading table by inserting Attach the grounding cable to the metal plate i...
Page 17
Carefully lift the central core tube. The central Remove the take-up reel spindle from the core. Slide the black hub onto the spindle up to the first Tighten the plastic nut on the black hub. EN core ...
Page 18
EN Loosen the plastic nut on the blue hub. Slide the blue hub onto the spindle. Raise the take-up reel deflector to its upright position. Unlock the take-up reel by pushing the spindle lever to Tighte...
Page 19
EN Unpack more components JP その他のコンポーネントの開梱 ZHCN ZHTW Membuka kemasan komponen lain Load the take-up reel spindle into the printer by Remove the protective covering from the printer Remove the packing...
Page 20
Open the printer window, and then remove the Remove the packing tape (1), then remove the packing Plug the Gigabit Ethernet cable into the Gigabit Pass the Gigabit Ethernet cable through the hook at p...
Page 21
EN Install the ink supplies JP インク サプライ品の取り付け ZHCN ZHTW Memasang persediaan tinta Plug the power cable into the rear of the printer, and Turn the Power switch to the On position at the If the power li...
Page 22
Wait until this message appears on the front panel (~1 Wait until this message appears. The front panel To release the ink cartridge drawer, gently pull Shake the ink cartridge vigorously for about 15...
Page 23
Place the ink cartridge in the ink cartridge drawer. The Push the ink cartridge drawer back into the printer The printer “beeps” when the cartridge is correctly Follow the same instructions to insert ...
Page 24
EN Open the window. When the above question on the front panel of your Open the printer window, and then remove the Remove the packing tape that is holding down the printer, you must follow steps 85 t...
Page 25
Pull up and release the blue latch on top of the Before removing the setup printheads, look at each Lower the blue latch to close the printhead cover. Select: EN carriage assembly. printhead and verif...
Page 26
Wait until this message appears on the front panel. Pull open the maintenance cartridge door, which is Remove the transparent shipping tray. Wait until this message appears on the front panel EN locat...
Page 27
EN Remove all of the setup printheads. Remove the two protective covers on the new Lower all of the printheads vertically into their correct Make sure that the printheads are correctly seated. printhe...
Page 28
If a “Reseat” message appears on the front panel, Close the carriage assembly cover. Make sure that the blue latch is correctly engaged, Close the printer window. check that all of the protective tape...
Page 29
EN Load the paper JP 用紙の取り付け ZHCN ZHTW Isikan kertas Wait until the Ready for paper message appears on Select the altitude where the printer is located. Lift the spindle lock lever. the front panel. T...
Page 30
EN Remove the spindle from the printer. Unlock and remove the blue hub from the left end of Place one of the two rolls of paper that came Make sure that the black hub on the right side of the the spin...
Page 31
The right hub of the spindle has two positions: one Slide the blue hub onto the spindle. Make sure that the With the blue hub on the left, lift the take-up reel From the front panel, select the paper ...
Page 32
EN Select Load roll and then press the OK button. Insert the lead-edge of the paper into the printer, Confim the type and length of the paper roll that you On the front panel, select the paper type an...
Page 33
Macintosh* Windows** Please do not try to stop the paper advance; it is The printer automatically aligns the printheads and necessary to ensure successful printhead alignment. performs a color calibra...
Page 34
EN ZHCN ZHTWJP Note for MAC & Windows USB Mac および Windows の USB 接続 MAC 和 Windows USB 连接注意事 請注意，當 MAC 與 Windows connection: に関する注記： 项： USB 連線時： 請不要急著將電腦連接到印表機。您必須先在 Do not connect the computer to t...
Page 35
MAC 및 Windows USB 연결을 Catatan tentang sambungan USB 위한 안내 untuk MAC & Windows: Jangan sambungkan dulu komputer ke printer. Anda 아직 컴퓨터를 프린터에 연결하지 마십시오. harus terlebih dulu menginstal perangkat lun...
Page 36
