HP DesignJet T1600 Printer Series - HP DesignJet T1600 Printer Assembly Manual

Summary

This comprehensive guide provides detailed, step-by-step instructions for assembling your HP DesignJet T1600 Printer Series. It helps users successfully set up their large format printer, defining prerequisites such as necessary assembly space and tools. Whether you are a professional or technician looking to install this advanced printing solution, the manual ensures a smooth process by guiding you through component identification, stand construction, and final setup procedures.

📄 Preview ‹ PAGE OF 28 ›

‹

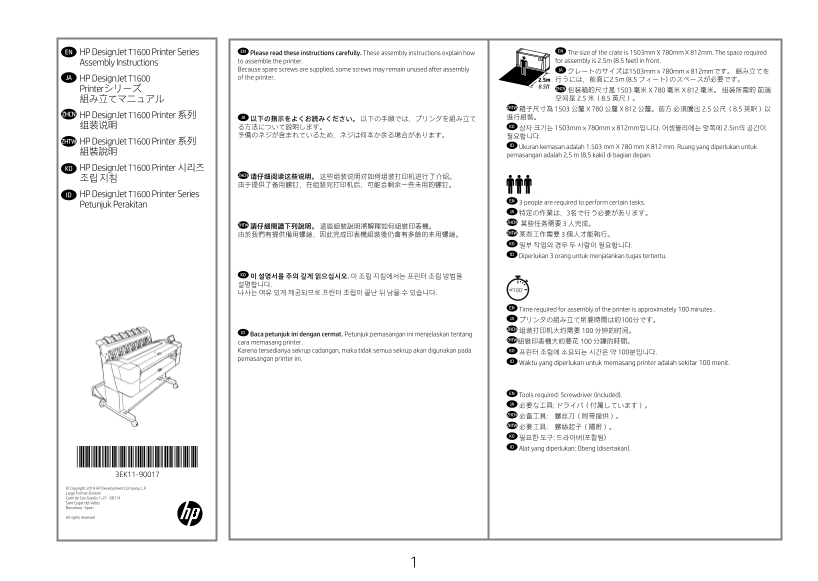

HP DesignJet T1600 Printer Series - HP DesignJet T1600 Printer Assembly Manual - Page 1

›

Page 1 Text Content

EN EN EN HP Design Jet T1600 Printer Series Please read these instructions carefully. These assembly instructions explain how The size of the crate is 1503mm X 780mm X 812mm. The space required to assemble the printer. for assembly is 2.5m (8.5 feet) in front.

Assembly Instructions

Because spare screws are supplied, some screws may remain unused after assembly JA

クレートのサイズは1503mm x 780mm x 812mmです。組み立てを

JA HP Design Jet T1600 of the printer.

2.5m 行うには、前面に2.5m (8.5 フィート) のスペースが必要です。 8.5ft ZHCN

Printerシリーズ包装箱的尺寸是 1503 毫米 X 780 毫米 X 812 毫米。组装所需的前端

ZHTW 箱子尺寸為 1503 公釐 X 780 公釐 X 812 公釐。前方必須騰出 2.5 公尺（8.5 英呎）以

ZHCN HP Design Jet T1600 Printer 系列

JA 進行組裝。以下の指示をよくお読みください。以下の手順では、プリンタを組み立て

组装说明る方法について説明します。 KO 상자 크기는 1503mm x 780mm x 812mm입니다. 어셈블리에는 앞쪽에 2.5m의 공간이

ZHTW HP Design Jet T1600 Printer 系列

ID Ukuran kemasan adalah 1.503 mm X 780 mm X 812 mm. Ruang yang diperlukan untuk

pemasangan adalah 2,5 m (8,5 kaki) di bagian depan.

KO HP Design Jet T1600 Printer 시리즈

ZHCN 조립 지침 请仔细阅读这些说明。这些组装说明对如何组装打印机进行了介绍。由于提供了备用螺钉，在组装完打印机后，可能会剩余一些未用的螺钉。

ID HP Design Jet T1600 Printer Series

EN 3 people are required to perform certain tasks.

Petunjuk Perakitan

JA 特定の作業は、3名で行う必要があります。 ZHCN ZHTW 請仔細閱讀下列說明。這些組裝說明將解釋如何組裝印表機。某些任务需要 3 人完成。 ZHTW 某些工作需要 3 個人才能執行。

KO 일부 작업의 경우 두 사람이 필요합니다. ID Diperlukan 3 orang untuk menjalankan tugas tertentu.

KO 이 설명서를 주의 깊게 읽으십시오. 이 조립 지침에서는 프린터 조립 방법을 설명합니다.

EN Time required for assembly of the printer is approximately 100 minutes . JA プリンタの組み立て所要時間は約100分です。 ZHCN ID 组装打印机大约需要 100 分钟的时间。

Baca petunjuk ini dengan cermat. Petunjuk pemasangan ini menjelaskan tentang

ZHTW組裝印表機大約要花 100 分鐘的時間。

cara memasang printer.

Karena tersedianya sekrup cadangan, maka tidak semua sekrup akan digunakan pada KO 프린터 조립에 소요되는 시간은 약 100분입니다.

pemasangan printer ini.

ID Waktu yang diperlukan untuk memasang printer adalah sekitar 100 menit.

EN Tools required: Screwdriver (included). JA 必要な工具: ドライバ（付属しています）。 ZHCN 必备工具：螺丝刀（附带提供）。 ZHTW 必要工具：螺絲起子（隨附）。

KO 필요한 도구: 드라이버(포함됨) ID Alat yang diperlukan: Obeng (disertakan).

Page Summary Contents For HP DesignJet T1600 Printer Series - HP DesignJet T1600 Printer Assembly Manual

Page 1 EN EN EN HP Design Jet T1600 Printer Series Please read these instructions carefully. These assembly instructions explain how The size of the crate is 1503mm X 780mm X 812mm. The space required to ass...

Page 2 EN Crate contents ZHTW 箱內包含 1. Documentation: Assembly Instructions, 1. 說明文件：組裝 Introductory information 說明、簡介資訊 2. Stacker accessory 2. 堆疊器附件 3. Printer 3. 印表機 4. Basket 4. 承接槽 5. Stand accessory p...

Page 3 EN Assemble the stand JA スタンドの組み立て组装支架組裝機架 KO 스탠드 조립 ID Memasang dudukan EN Important: Do not cut the internal straps until requested. Locate the stand pieces: Place the crossbar on the floor; with ...

Page 4 EN Slot the two legs onto the crossbar. Fix the crossbar to the left leg with 5 screws, do not tighten Fix the crossbar to the right leg with 5 screws, do not Fully tighten all 10 screws: left and rig...

Page 5 EN Rotate the product 90° JA 製品を90度回転させます将产品旋转 90 度將產品旋轉 90 度 KO 제품을 90도 회전시킵니다 ID Putar posisi produk 90 derajat. EN Turn the stand 180° into the upright position. Remove the components tray. Remov...

Page 6 EN Remove the stacker cover. Open the bottom cover of the box. Carefully roll the box 90° onto the floor. Remove the end cap covers by sliding them inwards, and Slide the box forward on the pallet to ...

Page 7 EN Attach the printer body to the stand assembly JA スタンドアセンブリへのプリンタ本体の取り付け将打印机主体连接到支架组件將印表機機身裝到機架組件上 KO 프린터 본체를 스탠드 어셈블리에 장착합니다 ID Pasang badan printer ke unit dudukan EN Remove the tape, and open...

Page 8 EN Fix the stand assembly to the printer body with 2 screws Check the 4 wheels are locked. Rotate the printer 90° into the upright position. Cut the 2 straps. each side. Remove the 2 end caps. JA 2本のネ...

Page 9 EN Remove the plastic cover. Remove all the orange tapes. Remove the screws from the stacker. Unfold the stacker. JA プラスチックのカバーを取り外します。オレンジ色のテープをすべて取り外します。スタッカからネジを取り外します。スタッカを開きます。 ZHCN 拆除塑料盖。撕掉所...

Page 10 EN Fix the stacker with 2 stacker screws. Remove the carton piece and attach the stacker cover by Open the printer cover (1) and remove the carton piece (2). IMPORTANT: in the following step you must ...

Page 11 EN Assemble the basket JA バスケットの取り付け装配纸筐組裝承接槽 KO 바스켓 조립 ID Memasang keranjang EN Carefully remove the carriage retainer without touching the Close the window. Locate the basket pieces and connect th...

Page 12 EN Slot the basket arms into the feet until they click into place. Remove the tape, and feed the basket through to the front Slot the bar through the basket. Slot the basket into place. of the printer...

Page 13 EN Set up the printer JA プリンタをセットアップする设置打印机設定印表機 KO 프린터 설치 ID Membuat pengaturan awal printer EN Make sure the basket is open; this indicates the amount of Unlock the wheels. Move the printer to its...

Page 14 IMPORTANT: Attach the cables into the clamps: route the Power cables attached to the right. Note: make sure that the cables do not hang out in order to IMPORTANT: Connect the LAN and power cable. Swit...

Page 15 EN Select your language on the touch screen, and confirm it. The front panel will ask you to install the ink cartridges. Open the ink cartridge covers (left and right). Shake all the ink cartridges. J...

Page 16 Insert the ink cartridges: black, gray, and matte black on the Close the ink cartridge covers (left and right). The printer will now prepare the ink system for use. When When prompted, open the window...

Page 17 EN Lift up the printhead cover handle. Pull the blue handle up as far as it will go. Open the printhead cover by pulling the handle down. Remove the orange caps from inside the carriage. JA プリントヘッドカバ...

Page 18 EN Insert the printhead. Check the printhead is correctly alligned. Lift the printhead cover handle. Push the handle down to clip the cover to the bar. Note: do not insert the nozzles yet. JA プリントヘッドを...

Page 19 EN Pull the handle down to close the cover. Push down to close the cover completely. Close the window and press OK. The tubes will now fill. This will take about 10 minutes; please wait until complete...

Page 20 EN Load the paper JA 用紙の取り付け装入纸张裝入紙張 KO 용지 넣기 ID Isikan kertas EN Push the latch, and open the upper front roll cover. Remove the spindle and remove the orange tape and carton Unlock (1), and remove...

Page 21 EN Load the paper (1), replace, and lock the blue hub (2). Replace the spindle. Insert the paper edge into the printer. Feed the paper into the printer. JA 用紙を取り付け (1)、青色のハブを元の位置に戻してスピンドルを元の位置に戻します。 ...

Page 22 EN Roll the paper in. Follow steps 65 - 71 for the 2nd roll. When the roll/rolls are loaded, the printer will align the printheads. This process involves printing, and needs the paper to have a straig...

Page 23 EN ZHTWConnectivity and Mobile Printing 連線與行動列印 1 - Make sure that your printer is correctly connected to the Internet. 2 - Enable the services during initial setup of the printer, or later following ...

Page 24 hp.com/go/Design Jetclick EN The connectivity wizard will now start and take you Install the product software on your computer. Radically simplify the printing experience: step by step through connect...

Page 25 EN ZHTWPrint from your smartphone or tablet - i OS users can print through Airprint (no installation is required), or download HP Smart App for enhanced printing capabilities. - i OS 使用者可以透過 Airprint（...

Page 26 Optional: Managing printer security in HP Connected. When you enable web services the printer is in unlock mode meaning everyone who knows the printer’s email You can now, or at some later time, color...

Page 28 EN © Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express war...

Manual Details

Brand	HP
Pages	28
File Size	10.51 MB
Published	June 05, 2026

55 views

Enter the captcha to get the download link:

Frequently Asked Questions

What minimum space is needed for printer assembly?

You require a clear space of at least 2.5 meters (8.5 feet) directly in front for setup.

Are rolls or networking cables included in the box?

No, the crate contents specifically note that roll media and LAN cables are not included.

When assembling the stand, what initial caution is given?

Important: Do not cut the internal straps until you are requested to do so during assembly.
