HP Color LaserJet CM6049f Series HP LaserJet CM6049f MFP - Software Installation Guide
Summary
This comprehensive guide provides detailed, multilingual instructions for installing software and drivers for your LaserJet MFP device. Designed for users setting up or troubleshooting their multi-function printer, this manualwalks you through fetching necessary utilities from HP's official website. It covers multiple operating systems (Windows/Mac), ensuring seamless installation of core driver functions while offering critical notes on optimal hardware setup and connectivity best practices to guarantee efficient performance.
Page 1 Text Content
Laser Jet MFP
EN Software Installation Guide
CN 软件安装指南 JA ソフトウェア インストール ガイド KO 소프트웨어 설치 설명서 TW 軟體安裝指南
Page Summary Contents For HP Color LaserJet CM6049f Series HP LaserJet CM6049f MFP - Software Installation Guide

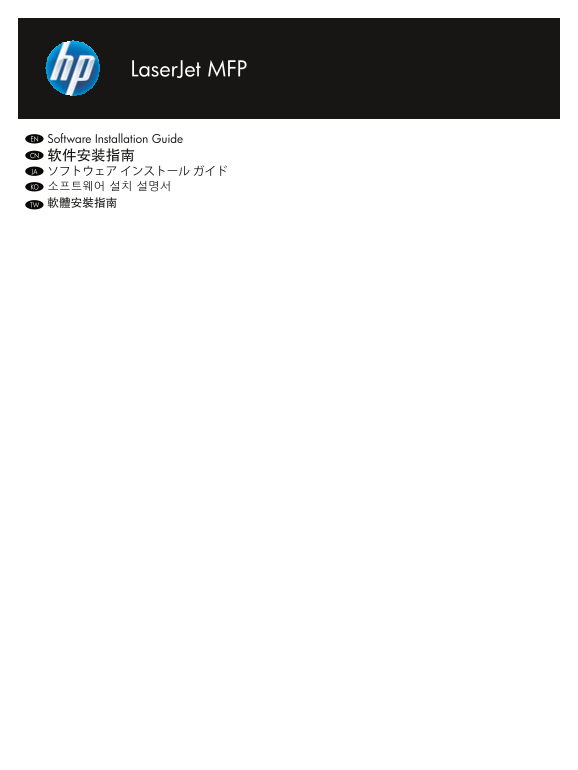

Page 1
Laser Jet MFP EN Software Installation Guide CN 软件安装指南 JA ソフトウェア インストール ガイド KO 소프트웨어 설치 설명서 TW 軟體安裝指南
Page 2
EN CN Install software 安装软件 JA KO TW 安裝軟體 EN Go to step 1. CN 转至步骤 1。 JA 手順 1 に進みます。 KO 단계 1로 이동합니다. TW 請移至步驟 1。 EN Mac:� Go to step �. CN Mac： 转至步骤 3。 JA Mac の場合： 手順 3 に進みます。 KO Mac: 단계 3으로 이동합니다. TW...
Page 3
EN Note: Do not connect a USB cable until prompted during the software installation. 注： 在软件安装期间出现提示之前，不要连接 USB 电缆。 JA 注記： ソフトウェアのインストール中は、プロンプトが表示されるまで USB ケーブルを接続しないでください。 KO 주: 소프트웨어를 설치하는 동안 메시지가 나...
Page 4
EN Install software. Software URLs: www.hp.com/go/cljcm609mfp_software A) To access the printer drivers, go to the software URL for your product. B) Select Download drivers and software. C) Select th...
Page 5
EN CN Install Mac software 安装 Mac 软件 JA KO Mac ソフトウェアの Mac 소프트웨어 설치 インストール TW 安裝 Mac 軟體 EN Note: Do not connect a USB cable until software installation is complete. 注： 在软件安装完成之前，不要连接 USB 电缆。 JA 注記： ソフ...
Page 6
EN Software URLs: www.hp.com/go/cljcm609mfp_software A) To download a printer driver, go to the software URL for your product. B) Select Download drivers and software. C) Select the model number, the...
Page 7
EN From Apple System Preferences (available from under the Apple pull-down menu or in the dock), click on the Print & Fax icon, then click on the Printing tab at the top of the window. CN 从 Apple ...
Page 8
From the Printer Browser window, select the HP printer from the Printer Name section. For Mac OS X v10.:� If HP software is installed, EN the printer software should be automatically configured. Make...
Page 9
EN Click Add to create a printer queue. You may be prompted to manually configure the installable options. 单击添加以创建打印机队列。 系统可能会提示您手动配置可安装选项。 JA [追加] をクリックしてプリンタ キューを作成します。 インストール可能なオプションを手動で設定するよう求めるプロ...
Page 10
EN Software URLs: www.hp.com/go/cljcm609mfp_software Download the Scan Setup Wizard. A) Go to the software URL for your product and select Software and Driver Downloads. B) Type the product model num...
Page 11
EN Use Scan Setup Wizard to set up Send to Folder. A) Open the embedded Web server by opening a Web browser and typing the product IP address or hostname in the URL window. The IP address can be found...
Page 12
Set up the embedded digital send features 设置内嵌式数字发送功能CN 内蔵デジタル送信のセットアップJA 내장 디지털 전송 기능 설정KO 設定嵌入式數位傳送功能TW EN Support URLs: www.hp.com/support/cljcm609mfp The HP embedded Web server (EWS) provides an ...
Page 13
EN Print a configuration page. From the control panel, A) scroll to and touch Administration. B) Touch Information. C) Touch Configuration/Status Pages. D) Touch Configuration Page. E) Touch Print. CN...
Page 14
EN Open the embedded Web server. A) Open a web browser. B) Type the product IP address or hostname (found on the embedded Jetdirect configuration page) in the URL window. 打开内嵌式 Web 服务器。 A) 打开 Web 浏览器。...
Page 15
EN Note:� Complete this step only if you did not run the Scan Setup Wizard or if you need to send files to a folder on a network drive. Set up Send to Folder. A) To set up a Shared folder on your comp...
Page 16
EN Note:� Complete this step only if you did not configure e-mail from the device control panel. Set up E-mail Settings. A) Open the embedded Web server by opening a Web browser and typing the product...
Page 17
EN CN Troubleshooting 故障排除 JA KO EN EN EN Area CN CN CN 区域 Symptom 症状 Cause/Remedy 原因/解决方法 JA JA JA 領域 KO KO KO 영역 問題 증상 原因/対処方法 원인/해결책 TW TW TW 區域 症狀 原因/修理方式 EN EN EN Control-panel display. Blank 1) ...
Page 18
EN EN Button on the touch screen appears gray 1) Make sure that the scanner lock is unlocked. with “!” markers ) Turn off the device, and then turn it on again. CN CN 触摸屏上的按钮显示为灰色并带 1) 确保扫描仪锁未锁定。 有“!”...
Page 19
EN EN Does not respond or there is an incorrect 1) Turn off the device. response to touch ) Hold down the # and C keys while turning on the device. �) Release the keys when a small square appears at t...
Page 20
KO KO 응답하지 않거나 응답이 올바르지 않 1) 장치를 끄십시오. 습니다 ) 장치를 켠 상태에서 #와 C 키를 누르고 있으십시 TW TW 無回應或觸碰之後出現錯誤的反應 1) 關閉裝置電源。
Page 21
Print. EN EN EN Not printing 1) Check the network or USB cable. ) If you are printing over a network, print CN 打印。 a configuration page and make sure that the JA 印刷 IP address is correct. KO 인쇄 �) Rei...
Page 22
KO KO 용지 걸림 1) 주황색 포장용 테이프 및 포장지가 제거되었는지 확인하십시오. ) 지원되는 용지를 사용하고 있는지 확인하십시오. 자세한 내용은 CD의 사용 설명서를 참조하십시오. �) 용지가 올바르게 적재되었는지 확인하십시오. TW TW 卡紙 1) 請確認橘色包裝膠帶與厚紙板已經除去。 EN EN EN Buttons on the touch screen ...
Page 23
EN EN E-mail Gateway Not Responding 1) The SMTP gateway address might be incorrect. appears on the control-panel display Contact you IT administrator to obtain the correct when attempting to send an e...
Page 24
EN EN The “from” address cannot be changed The “Prevent Device User from changing the e-mail in Send to E-mail address” feature in the EWS might be selected, or “Device Authentication” is enabled. CN ...
Page 25
You want to change the file type or the EN EN On the control-panel e-mail feature, select More color setting for e-mail attachments Options to change the image file format before sending the e-mail. 您...
Page 26
JA JA 文書をスキャンして電子メールに送信 1) テスト用の電子メールを送信し、電子メール ア すると、メッセージ「ジョブが失敗し ドレスが正しいことを確認してください。 ました」を受信する ) スキャンした文書が、SMTP ゲートウェイの許容 される最大添付ファイル サイズを超えていない かどうか、確認してください。 超えている場合 は、EWS を使用し、[デジタル送信] および [電 子メ...
Page 27
www.hp.com/support/ljm9059mfp www.hp.com/support/ljm4349mfp www.hp.com/support/cljcm6049mfp
Page 28
© 010 Hewlett-Packard Development Company, L.P. www.hp.com http://www.hp.com/support/ljm4349mfp Edition 1, /010 http://www.hp.com/go/ljm4349mfp_software http://www.hp.com/go/ljm4349mfp_firmware htt...
Manual Details
| Brand | HP |
|---|---|
| Pages | 28 |
| File Size | 1.54 MB |
| Published | June 06, 2026 |
69 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I find the IP address for network setup?
The IP address can be found on the Configuration Page printed in Step 1.
What are my options if the software installation fails?
If the installation fails, you should either reinstall the software or consult the 'Solve Problems' section of the User Guide.
Can I use a USB hub for network services?
No, the text notes that the USB connection does not support MFP network features and utilities, and HP advises against using hubs.
Where can I download printer drivers?
You can download drivers from the specific software URL for your product on www.hp.com/go/cljcm60...mfp_software.
