HITACHI 2SJ248 Silicon P-Channel MOS FET Data Sheet

Summary

The 2SJ248 is a high-performance Silicon P-Channel MOS FET engineered for reliable, high-speed power switching applications. Featuring low on-resistance and minimal drive current, it is ideally suited for robust designs like DC-DC converters and switching regulators. This comprehensive technical manual provides detailed specifications, including absolute maximum ratings, full electrical characteristics tables, and thermal derating curves. It serves as an essential resource for electrical engineers and design professionals integrating demanding power electronics into sophisticated systems.

📄 Preview ‹ PAGE OF 6 ›

‹

HITACHI 2SJ248 Silicon P-Channel MOS FET Data Sheet - Page 1

›

Page 1 Text Content

查询2SJ248供应商

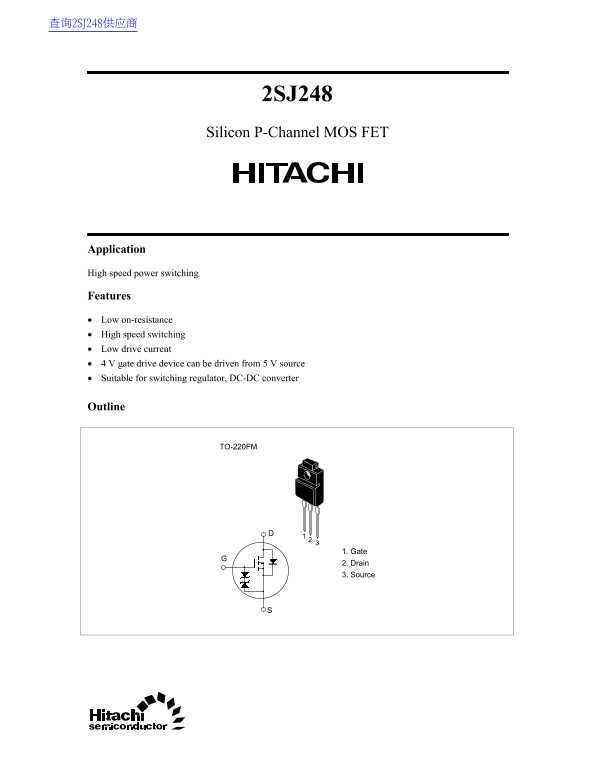

2SJ248 Silicon P-Channel MOS FET

Application

High speed power switching

Features

• Low on-resistance • High speed switching • Low drive current • 4 V gate drive device can be driven from 5 V source • Suitable for switching regulator, DC-DC converter

Outline

TO-220FM

1. Gate 2. Drain 3. Source

Page Summary Contents For HITACHI 2SJ248 Silicon P-Channel MOS FET Data Sheet

Page 1 查询2SJ248供应商 2SJ248 Silicon P-Channel MOS FET Application High speed power switching Features • Low on-resistance • High speed switching • Low drive current • 4 V gate drive device can be driven from 5...

Page 2 2SJ248 Absolute Maximum Ratings (Ta = 25°C) Item Symbol Ratings Unit Drain to source voltage VDSS –100 Gate to source voltage VGSS ±20 Drain current ID –8 Drain peak current ID(pulse)* –32 Body to dra...

Page 3 2SJ248 Electrical Characteristics (Ta = 25°C) Item Symbol Min Typ Max Unit Test conditions Drain to source breakdown V(BR)DSS –100 ID = –10 m A, VGS = 0 voltage Gate to source breakdown V(BR)GSS ±20 I...

Page 4 2SJ248 ha nn el is si pa tio ch Power vs. Temperature Derating Maximum Safe Operation Area or al iz ed ra ns ie nt he rm al Im pe da nc t) –10 PW = 10 ms (1shot) DC Operation (Tc = 25°C) –1 Operation ...

Page 5 10.0 ± 0.3 2.8 ± 0.2 Unit: mm Hitachi Code TO-220FM JEDEC EIAJ Conforms Weight (reference value) 1.8 g

Page 6 Cautions 1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent, copyright, trademark, or other intellectual property rights for information contained i...
