HITACHI 2SJ175 Silicon P-Channel MOS FET Data Sheet
Summary
A high-performance P-Channel MOS FET, the 2SJ175 is engineered for reliable, high-speed power switching applications, including motor drives, DC-DC converters, and solenoid systems. This technical manual serves as a comprehensive guide for circuit designers, detailing absolute maximum ratings, full electrical characteristics (such as low on-resistance values), transient thermal models, and power derating curves to ensure optimal system integration and reliability.
Page 1 Text Content
查询2SJ175供应商

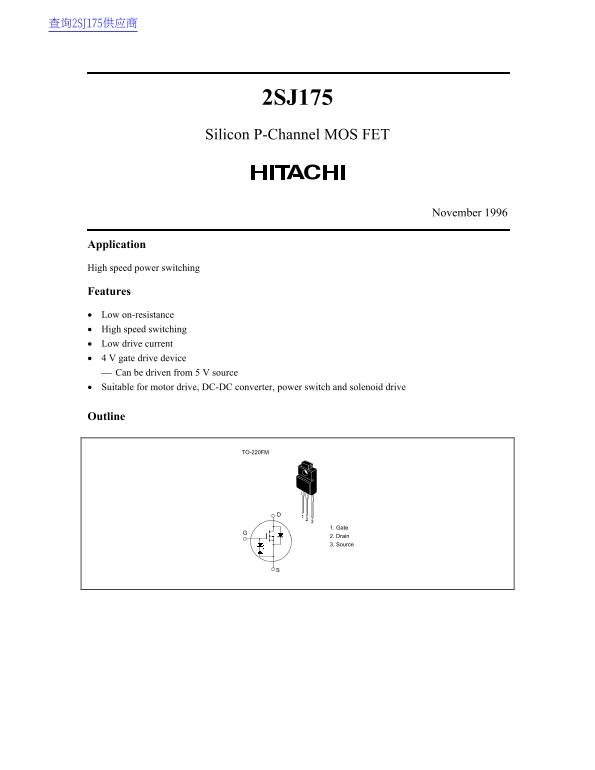

2SJ175 Silicon P-Channel MOS FET
November 1996
Application High speed power switching
Features • Low on-resistance • High speed switching • Low drive current • 4 V gate drive device Can be driven from 5 V source • Suitable for motor drive, DC-DC converter, power switch and solenoid drive
Outline
TO-220FM
1. Gate 2. Drain 3. Source
