Fairchild NZT751 PNP Current Driver Transistor Data Sheet
Summary
This PNP Current Driver Transistor is an essential component designed for high-speed power amplification, regulation, and switching circuits. It features a SOT-223 package suitable for demanding electrical applications. The accompanying manual provides comprehensive technical data, including detailed absolute maximum ratings, thermal characteristics curves, and full operational specifications (DC/AC typical graphs). This guide is crucial for engineers selecting or integrating the NZT751 into robust power management systems, ensuring optimal performance across varying duty cycles and ambient temperatures.

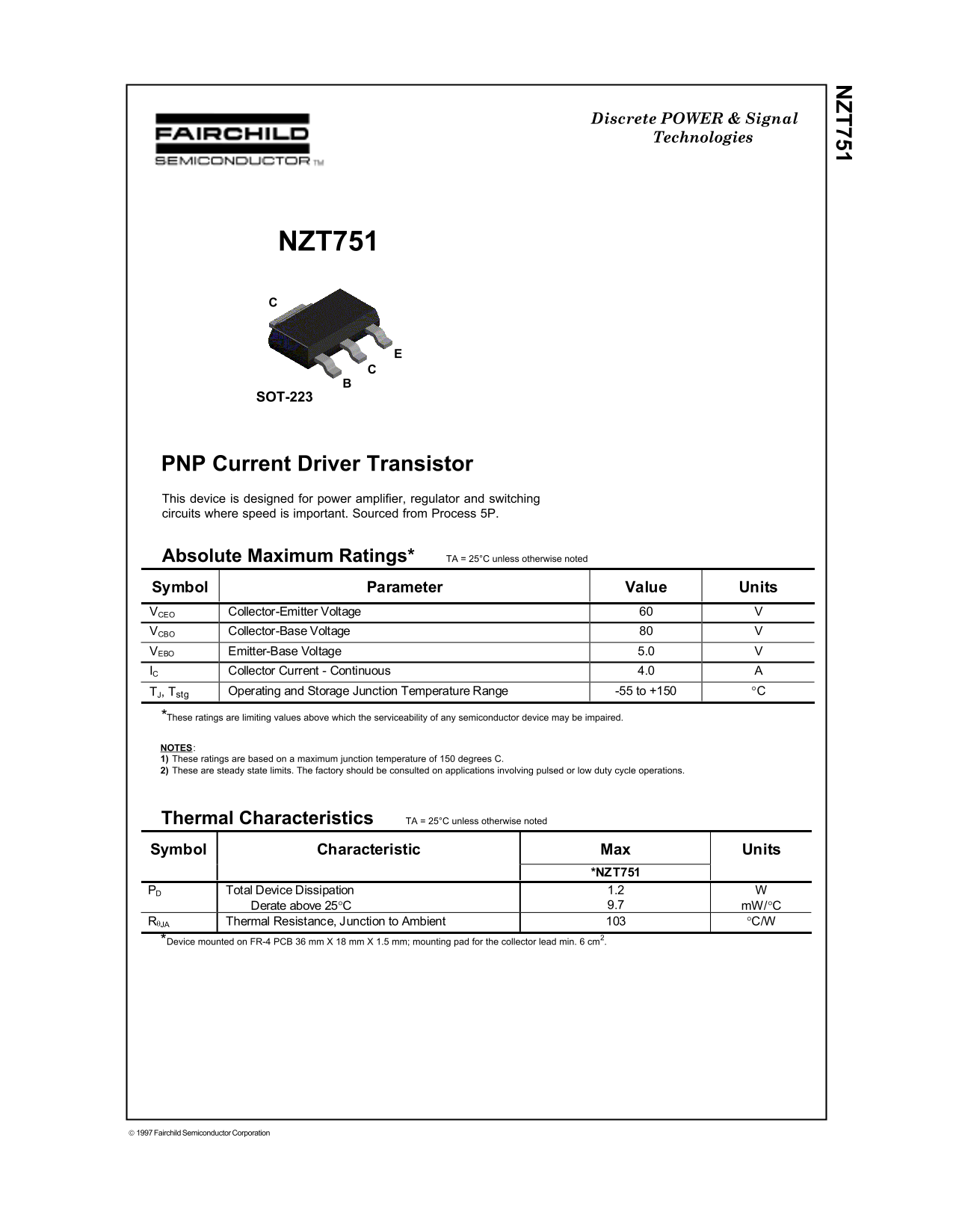

Page 1 Text Content
Discrete POWER & Signal Technologies
NZT751
SOT-223
PNP Current Driver Transistor This device is designed for power amplifier, regulator and switching circuits where speed is important. Sourced from Process 5P.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VCEO Collector-Emitter Voltage VCBO Collector-Base Voltage VEBO Emitter-Base Voltage 5.0 IC Collector Current - Continuous 4.0
TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics TA = 25°C unless otherwise noted Symbol Characteristic Max Units
*NZT751
PD Total Device Dissipation 1.2
Derate above 25°C 9.7 m W/°C
RθJA Thermal Resistance, Junction to Ambient °C/W *Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm2.
1997 Fairchild Semiconductor Corporation
