Fairchild SS9012 PNP Epitaxial Silicon Transistor Data Sheet
Summary
This PNP epitaxial silicon transistor serves as a robust output amplifier, specifically designed for Class B push-pull operation in audio circuits like radios. Comprehensive specifications cover performance ratings, electrical characteristics, and saturation voltages essential for high-fidelity amplification tasks. This technical resource is mandatory reading for electrical engineers and electronics designers who require detailed operational data to precisely integrate and optimize the SS9012 into their audio equipment designs.

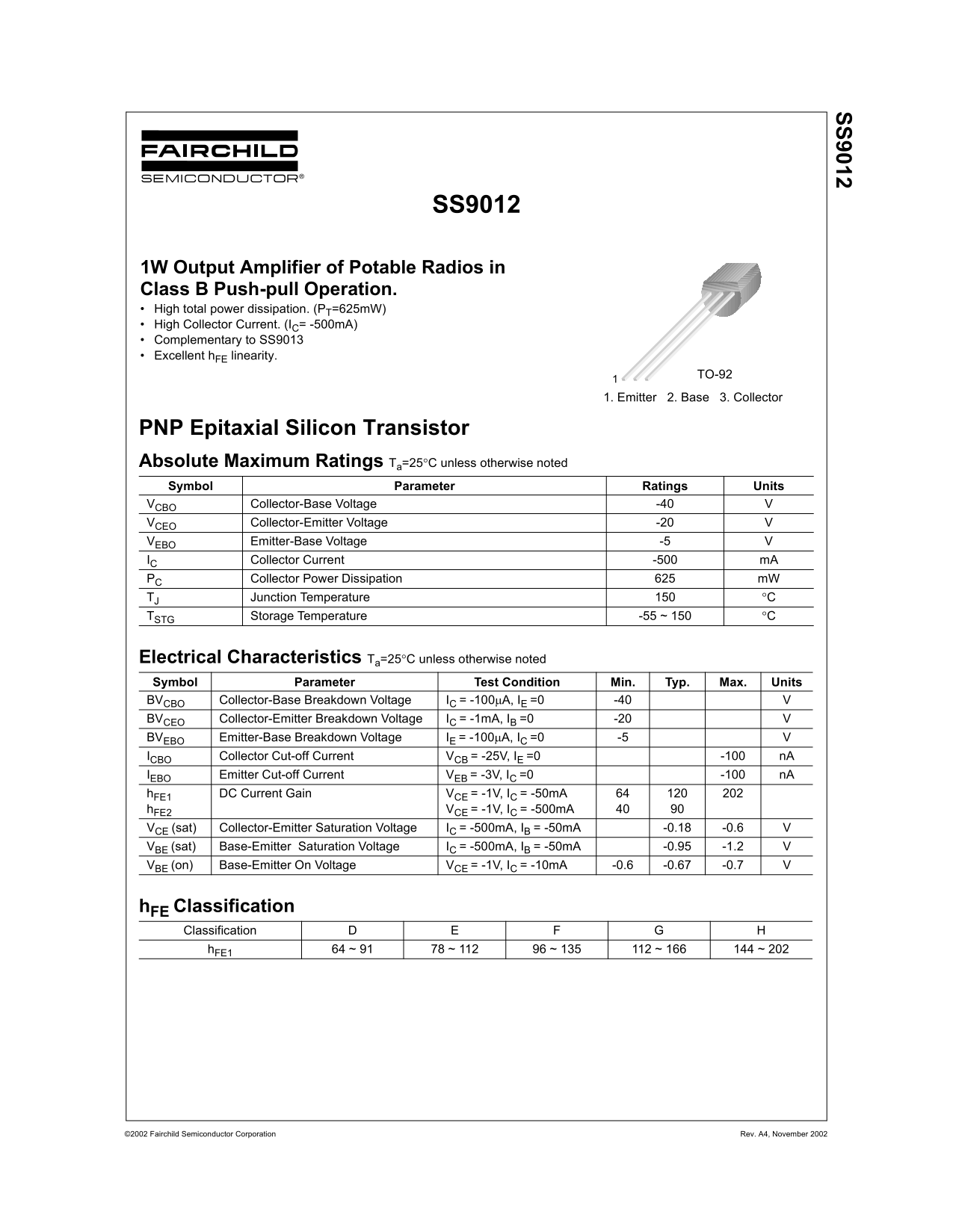

Page 1 Text Content
SS9012
SS9012
1W Output Amplifier of Potable Radios in Class B Push-pull Operation. High total power dissipation. (PT=625m W) High Collector Current. (IC= -500m A) Complementary to SS9013 Excellent h FE linearity.
TO-921
1. Emitter 2. Base 3. Collector
PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter Ratings Units
VCBO Collector-Base Voltage -40
VCEO Collector-Emitter Voltage -20
VEBO Emitter-Base Voltage -5 IC Collector Current -500 m A PC Collector Power Dissipation m W
TJ Junction Temperature °C
TSTG Storage Temperature -55 ~ 150 °C
Electrical Characteristics Ta=25°C unless otherwise noted Symbol Parameter Test Condition Min. Typ. Max. Units
BVCBO Collector-Base Breakdown Voltage IC = -100µA, IE =0 -40 BVCEO Collector-Emitter Breakdown Voltage IC = -1m A, IB =0 -20
BVEBO Emitter-Base Breakdown Voltage IE = -100µA, IC =0 -5
ICBO Collector Cut-off Current VCB = -25V, IE =0 -100 n A IEBO Emitter Cut-off Current VEB = -3V, IC =0 -100 n A h FE1 DC Current Gain VCE = -1V, IC = -50m A
h FE2 VCE = -1V, IC = -500m A
VCE (sat) Collector-Emitter Saturation Voltage IC = -500m A, IB = -50m A -0.18 -0.6 VBE (sat) Base-Emitter Saturation Voltage IC = -500m A, IB = -50m A -0.95 -1.2 VBE (on) Base-Emitter On Voltage VCE = -1V, IC = -10m A -0.6 -0.67 -0.7
h FE Classification Classification
h FE1 64 ~ 91 78 ~ 112 96 ~ 135 112 ~ 166 144 ~ 202
©2002 Fairchild Semiconductor Corporation Rev. A4, November 2002
Page Summary Contents For Fairchild SS9012 PNP Epitaxial Silicon Transistor Data Sheet
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 4 |
| File Size | 35.97 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum collector power dissipation?
The absolute maximum rating for collector power dissipation (Pc) is 625 mW.
Is this device safe for life support systems?
No, Fairchild's products are not authorized for use as critical components in life support devices without express written approval.
What type of packaging does the SS9012 use?
The SS9012 is provided in a TO-92 package.
How are the terminals labeled?
The terminals are labeled: 1. Emitter, 2. Base, and 3. Collector.
