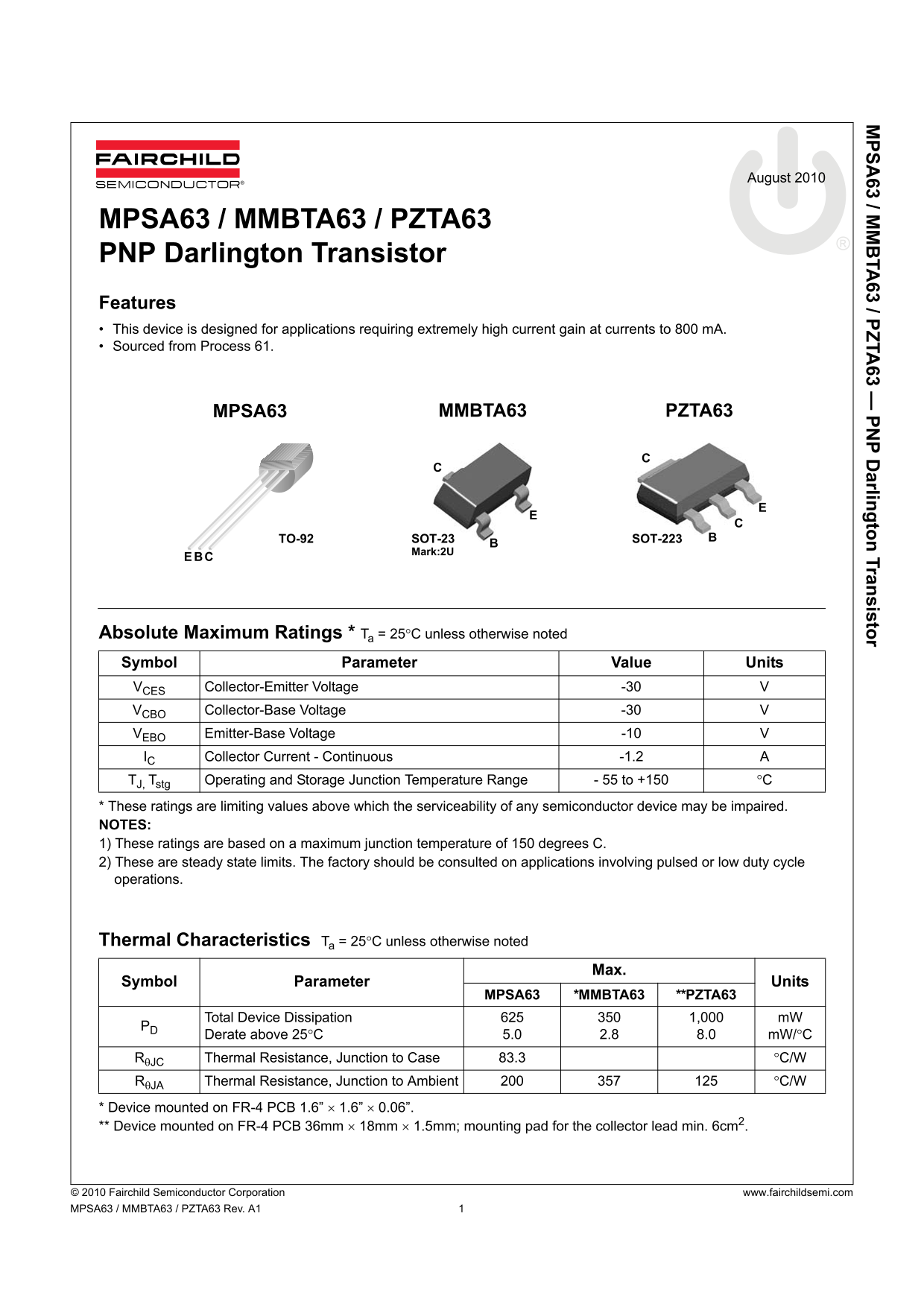

Page 1 Text Content
PSA 63 / M TA 63 / PZTA 63 — PN P D arlington Transistor
August 2010
MPSA63 / MMBTA63 / PZTA63 PNP Darlington Transistor Features This device is designed for applications requiring extremely high current gain at currents to 800 m A. Sourced from Process 61.
MPSA63 MMBTA63 PZTA63
TO-92 SOT-23 SOT-223
Mark:2U
Absolute Maximum Ratings * Ta = 25°C unless otherwise noted Symbol Parameter Value Units VCES Collector-Emitter Voltage -30
VCBO Collector-Base Voltage -30 VEBO Emitter-Base Voltage -10 IC Collector Current - Continuous -1.2 TJ, Tstg Operating and Storage Junction Temperature Range - 55 to +150 °C
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics Ta = 25°C unless otherwise noted
Symbol Parameter Units
MPSA63 *MMBTA63 **PZTA63
Total Device Dissipation 1,000 m W
Derate above 25°C 5.0 2.8 8.0 m W/°C RθJC Thermal Resistance, Junction to Case 83.3 °C/W RθJA Thermal Resistance, Junction to Ambient °C/W
* Device mounted on FR-4 PCB 1.6” × 1.6” × 0.06”. ** Device mounted on FR-4 PCB 36mm × 18mm × 1.5mm; mounting pad for the collector lead min. 6cm2.
© 2010 Fairchild Semiconductor Corporation www.fairchildsemi.com MPSA63 / MMBTA63 / PZTA63 Rev. A1
