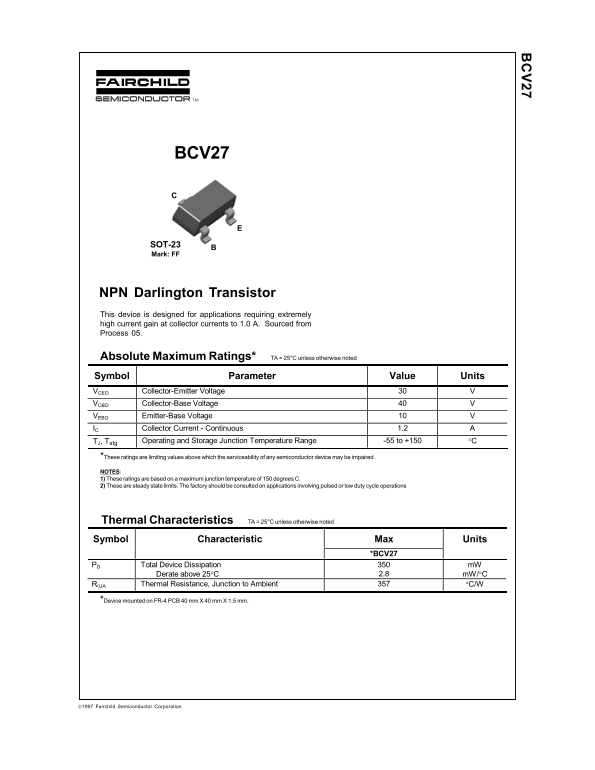

Fairchild BCV27 NPN Darlington Transistor User's Guide

BCV27

SOT-23 Mark: FF

NPN Darlington Transistor This device is designed for applications requiring extremely high current gain at collector currents to 1.0 A. Sourced from Process 05.

Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VCEO Collector-Emitter Voltage VCBO Collector-Base Voltage VEBO Emitter-Base Voltage IC Collector Current - Continuous 1.2

TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations

Thermal Characteristics TA = 25°C unless otherwise noted Symbol Characteristic Max Units

*BCV27

PD Total Device Dissipation m W

Derate above 25°C 2.8 m W/°C

RθJA Thermal Resistance, Junction to Ambient °C/W

*Device mounted on FR-4 PCB 40 mm X 40 mm X 1.5 mm.

1997 Fairchild Semiconductor Corporation
