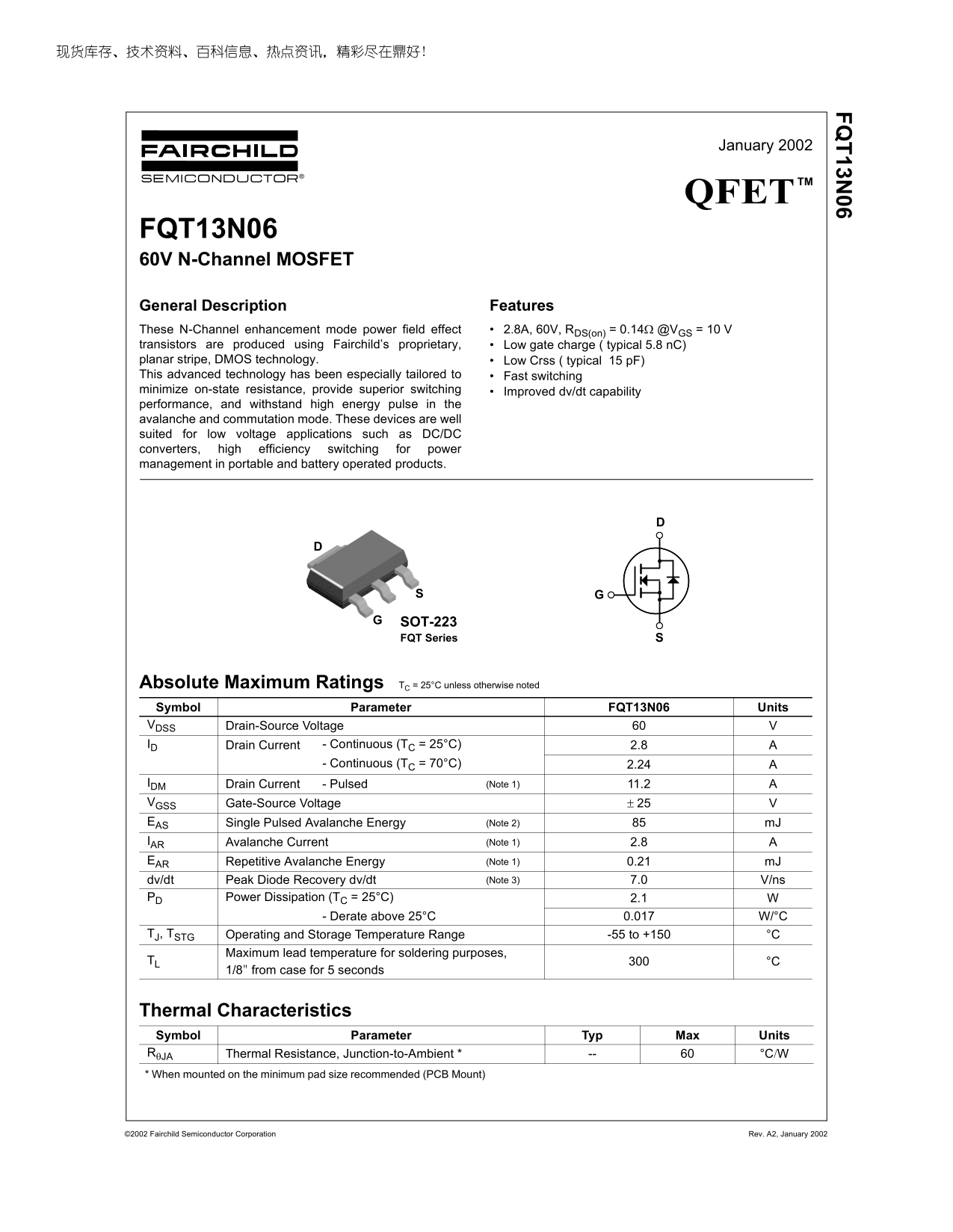

FQ T13N 06QFET
January 2002
FQT13N06 60V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 2.8A, 60V, RDS(on) = 0.14Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 5.8 n C) planar stripe, DMOS technology. Low Crss ( typical 15 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching Improved dv/dt capability performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for low voltage applications such as DC/DC converters, high efficiency switching for power management in portable and battery operated products.
SOT-223 FQT Series
Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQT13N06 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 2.8
- Continuous (TC = 70°C) 2.24
IDM Drain Current - Pulsed (Note 1) 11.2 VGSS Gate-Source Voltage ± 25 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 2.8 EAR Repetitive Avalanche Energy (Note 1) 0.21 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 7.0 V/ns
PD Power Dissipation (TC = 25°C) 2.1
- Derate above 25°C 0.017 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C
Maximum lead temperature for soldering purposes,
TL °C
1/8" from case for 5 seconds
Thermal Characteristics Symbol Parameter Typ Max Units RθJA Thermal Resistance, Junction-to-Ambient * °C/W * When mounted on the minimum pad size recommended (PCB Mount)
©2002 Fairchild Semiconductor Corporation Rev. A2, January 2002
