FA 8301 — 2A , 16V, N on-Synchronous, Step-D ow n, D /D egulator
November 2008
FAN8301 2A, 16V, Non-Synchronous, Step-Down, DC/DC Regulator Features Description
2A Output Current The FAN8301 is a monolithic, non-synchronous, step- down (buck) regulator with internal power MOSFETs. It
0.22Ω Internal Power MOSFET Switch
achieves 2A continuous output current over a wide input supply range with excellent load and line regulation.
Wide 4.75V to 16V Operating Input Range
Current-mode operation provides fast transient
Output Adjustable from 0.6 to 14V response and eases loop stabilization. Fault condition
protection includes cycle-by-cycle current limiting and
Stable with Low-ESR Output Ceramic Capacitors
thermal shutdown. The regulator draws less than 20µA
Up to 90% Efficiency shutdown current. The FAN8301 requires a minimum
number of readily available standard external
Less than 20µA Shutdown Current
components.
Fixed 370k Hz Frequency
External compensation, enable, and programmable
Thermal Shutdown with Hysteresis soft-start features allow design optimization and
flexibility. Cycle-by-cycle current limit, frequency
Cycle-by-Cycle Over-Current Protection
foldback, and thermal shutdown provide protection
Available in 8-Pin SOIC Package against shorted outputs.
Applications Set-Top Boxes DSL and Cable Modems Distributed Power Systems Consumer Appliances (DVD) Auxiliary Supplies

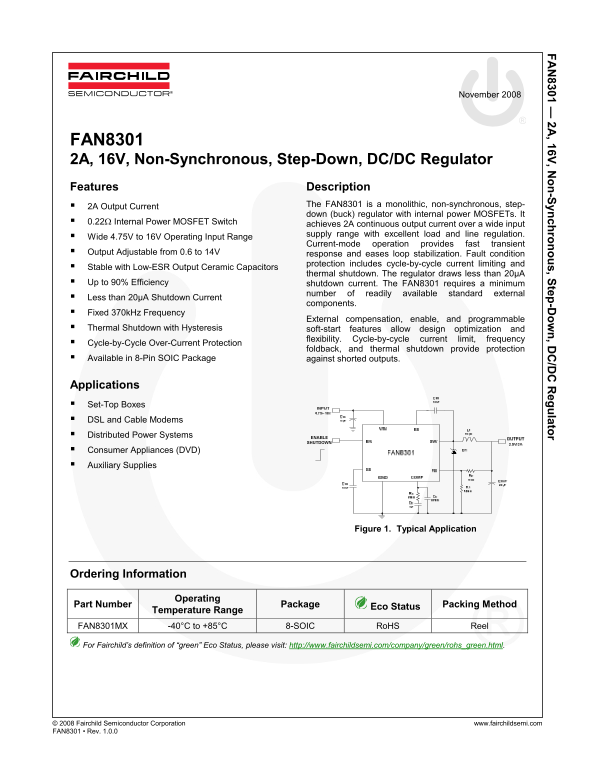

Figure 1. Typical Application
Ordering Information
Part Number Operating
Temperature Range Package Eco Status Packing Method
FAN8301MX -40°C to +85°C 8-SOIC Ro HS Reel
