Fairchild FDMF6705V Product Specifications Sheet

Summary

Engineered for high-density power requirements, this ultra-compact DrMOS module provides a next-generation, integrated solution for demanding DC-DC conversion. It delivers exceptional efficiency and robust power handling in an ultra-small footprint (6x6mm). The accompanying manual details comprehensive technical specifications, application circuit diagrams, pin definitions, and optimal integration methods. Ideal for high-performance clients including gaming motherboards, blade servers, workstations, and networking infrastructure requiring clean voltage waveforms and reliable high-current power delivery.

📄 Preview PAGE OF 18

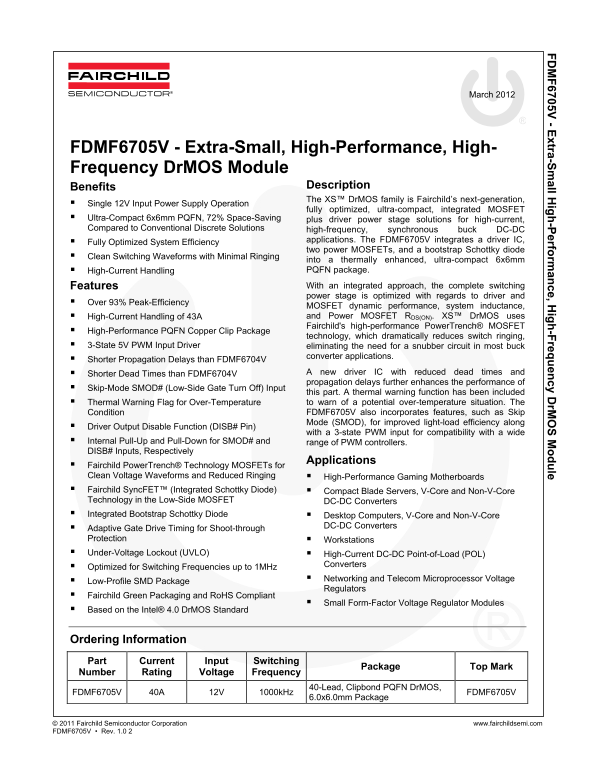

Page 1 Text Content

6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le

March 2012

FDMF6705V - Extra-Small, High-Performance, High- Frequency Dr MOS Module

Benefits Description The XS™ Dr MOS family is Fairchild’s next-generation,

 Single 12V Input Power Supply Operation

fully optimized, ultra-compact, integrated MOSFET

 Ultra-Compact 6x6mm PQFN, 72% Space-Saving plus driver power stage solutions for high-current, Compared to Conventional Discrete Solutions high-frequency, synchronous buck DC-DC

 Fully Optimized System Efficiency applications. The FDMF6705V integrates a driver IC, two power MOSFETs, and a bootstrap Schottky diode

 Clean Switching Waveforms with Minimal Ringing

into a thermally enhanced, ultra-compact 6x6mm  High-Current Handling PQFN package. Features With an integrated approach, the complete switching power stage is optimized with regards to driver and

 Over 93% Peak-Efficiency

MOSFET dynamic performance, system inductance,  High-Current Handling of 43A and Power MOSFET RDS(ON). XS™ Dr MOS uses Fairchild's high-performance Power Trench® MOSFET

 High-Performance PQFN Copper Clip Package

technology, which dramatically reduces switch ringing,

 3-State 5V PWM Input Driver eliminating the need for a snubber circuit in most buck

converter applications.

 Shorter Propagation Delays than FDMF6704V

 Shorter Dead Times than FDMF6704V A new driver IC with reduced dead times and propagation delays further enhances the performance of

 Skip-Mode SMOD# (Low-Side Gate Turn Off) Input

this part. A thermal warning function has been included  Thermal Warning Flag for Over-Temperature to warn of a potential over-temperature situation. The Condition FDMF6705V also incorporates features, such as Skip Mode (SMOD), for improved light-load efficiency along

 Driver Output Disable Function (DISB# Pin)

with a 3-state PWM input for compatibility with a wide

 Internal Pull-Up and Pull-Down for SMOD# and range of PWM controllers. DISB# Inputs, Respectively

Applications

 Fairchild Power Trench® Technology MOSFETs for Clean Voltage Waveforms and Reduced Ringing  High-Performance Gaming Motherboards  Fairchild Sync FET™ (Integrated Schottky Diode)  Compact Blade Servers, V-Core and Non-V-Core Technology in the Low-Side MOSFET DC-DC Converters  Integrated Bootstrap Schottky Diode  Desktop Computers, V-Core and Non-V-Core

 Adaptive Gate Drive Timing for Shoot-through DC-DC Converters

Protection  Workstations  Under-Voltage Lockout (UVLO)  High-Current DC-DC Point-of-Load (POL)

 Optimized for Switching Frequencies up to 1MHz Converters  Low-Profile SMD Package  Networking and Telecom Microprocessor Voltage Regulators

 Fairchild Green Packaging and Ro HS Compliant

 Small Form-Factor Voltage Regulator Modules

 Based on the Intel® 4.0 Dr MOS Standard

Ordering Information Part Current Input Switching

Package Top Mark

Number Rating Voltage Frequency

40-Lead, Clipbond PQFN Dr MOS,

FDMF6705V 40A 12V 1000k Hz FDMF6705V

6.0x6.0mm Package

© 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com FDMF6705V • Rev. 1.0 2

Page Summary Contents For Fairchild FDMF6705V Product Specifications Sheet

Page 1 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le March 2012 FDMF6705V - Extra-Small, High-Performance, High- Frequency Dr MOS Module Benefits Description The XS™ Dr MOS family is...
Page 2 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Typical Application Circuit VIN 3V to15 V THWN# VIN VDRV = 8V to 15 V Temp CVIN VDRV Sense 5 V Linear Reg . DBoot C VDRV BOOT CVC...
Page 3 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Pin Configuration Figure 3. Bottom View Figure 4. Top View Pin Definitions Pin # Name Description When SMOD#=HIGH, the low-side d...
Page 4 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be...
Page 5 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Electrical Characteristics Typical values are VIN=12V, VDRV=12V, and TA=+25°C unless otherwise noted. Symbol Parameter Condition ...
Page 6 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Electrical Characteristics (Continued) Typical values are VIN=12V, VDRV=12V, and TA=+25°C unless otherwise noted. Symbol Paramete...
Page 7 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le V IH_PWM IL_PWM GH to VSWH t D_TIMEOUT ( 250ns Timeout) t PD t PD PLGHL PHGLL t D_DEADOFF t D_DEADON Figure 5. PWM Timing Diagram...
Page 8 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Typical Performance Characteristics Test Conditions: VIN=12V, VOUT=1.0V, VDRV=12V, LOUT=320n H, TA=25°C, and natural convection c...
Page 9 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Typical Performance Characteristics (Continued) Test Conditions: VIN=12V, VOUT=1.0V, VDRV=12V, LOUT=320n H, TA=25°C, and natural ...
Page 10 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Typical Performance Characteristics (Continued) Test Conditions: VIN=12V, VOUT=1.0V, VDRV=12V, LOUT=320n H, TA=25°C, and natural ...
Page 11 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Functional Description ic ta te The FDMF6705V is a driver-plus-FET module optimized 3-State PWM Input for the synchronous buck co...
Page 12 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le To preclude overlap during the HIGH-to-LOW transition Adaptive Gate Drive Circuit (Q1 off to Q2 on), the adaptive circuitry monit...
Page 13 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Skip Mode (SMOD) The SMOD function allows for higher converter Table 2. SMOD Logic efficiency under light-load conditions. During...
Page 14 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Application Information bootstrap resistor would be needed for specific Supply Capacitor Selection applications to improve switch...
Page 15 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le PCB Layout Guidelines Figure 27 provides an example of a proper layout for the 7. The layout should include the option to insert ...
Page 16 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Bottom View Top View Figure 27. PCB Layout Example © 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com FDMF6705V • R...
Page 17 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le Physical Dimensions PIN#1 0.10 INDICATOR TOP VIEW 0.60 SEE 0.35 DETAIL 'A' 0.50 TYP LAND PATTERN RECOMMENDATION FRONT VIEW 0.10 4...
Page 18 6705V - E xtra-S all H ig -P erfo rm an ce, H ig -F req en cy D r M le © 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com FDMF6705V • Rev. 1.0.2 18

Manual Details

Brand Fairchild
Pages 18
File Size 1.80 MB
Published June 01, 2026
70 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the peak efficiency of the FDMF6705V module?

The module boasts an over 93% peak-efficiency power stage.

What kind of capacitors should be used for the VCIN input?

A minimum 1µF ceramic capacitor must be connected as close as possible from the VCIN pin to CGND.

Does this DrMOS module require a snubber circuit in typical applications?

No, the 3-State PWM Input eliminates the need for a snubber circuit in most buck converter applications.

How does it improve efficiency during light load conditions?

It incorporates Skip Mode Control (SMOD) for improved light-load efficiency.
