Fairchild FQPF3N80 Product Specifications Sheet

Summary

The FQPF3N80 is a high-performance N-Channel MOSFET specialized for demanding switching applications up to 800V and 1.8A. Designed with advanced planar stripe DMOS technology, it offers superior efficiency via minimized on-state resistance and lightning-fast switching capabilities. This comprehensive datasheet is essential reference material for electrical engineers and hardware designers building high-efficiency switch mode power supplies. It provides detailed thermal, absolute maximum ratings, and dynamic characteristics required for accurate system prototyping and robust circuit design.

📄 Preview PAGE OF 8

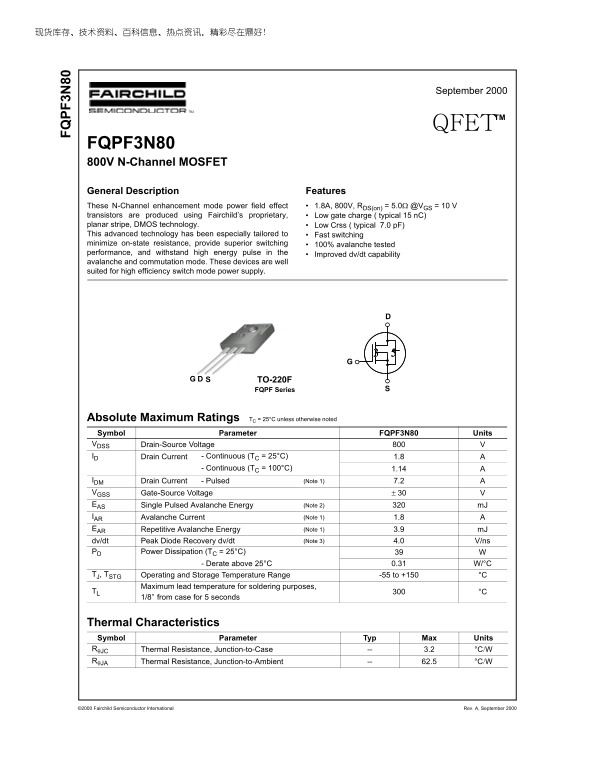

Page 1 Text Content

September 2000

QFETTM

FQPF3N80 800V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 1.8A, 800V, RDS(on) = 5.0Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 15 n C) planar stripe, DMOS technology. Low Crss ( typical 7.0 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF3N80 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 1.8

- Continuous (TC = 100°C) 1.14

IDM Drain Current - Pulsed (Note 1) 7.2 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 1.8 EAR Repetitive Avalanche Energy (Note 1) 3.9 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.31 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 3.2 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A, September 2000

Page Summary Contents For Fairchild FQPF3N80 Product Specifications Sheet

Page 1 September 2000 QFETTM FQPF3N80 800V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 1.8A, 800V, RDS(on) = 5.0Ω @VGS = 10 V transistors are produced us...
Page 2 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS Br...
Page 3 Typical Characteristics ap ac ita nc [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom : 5.5 V ※ Notes : ※ Notes : 1. 250μs Pulse Test 1. V =...
Page 4 Typical Characteristics (Continued) BV SS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V GS = 0 V ※ Notes : 1. V GS = 10 V 2. I = 1.5 A , Junction Temper...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Rev. A, September 2000©2000 Fairchild Semiconductor International
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...

Manual Details

Brand Fairchild
Pages 8
File Size 654.98 KB
Published June 03, 2026
27 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the continuous drain current at 25°C?

The continuous drain current (IC) at 25°C is rated at 1.8 A.

Does this device handle high energy pulses?

Yes, it features 100% avalanche tested performance and can withstand a single pulsed avalanche energy of 320 mJ.

What are the safe operating temperatures for the MOSFET?

The operating temperature range is -55°C to +150°C.

How does the power dissipation derate above 25°C?

Power dissipation must be derated by 0.31 W/°C above 25°C.
