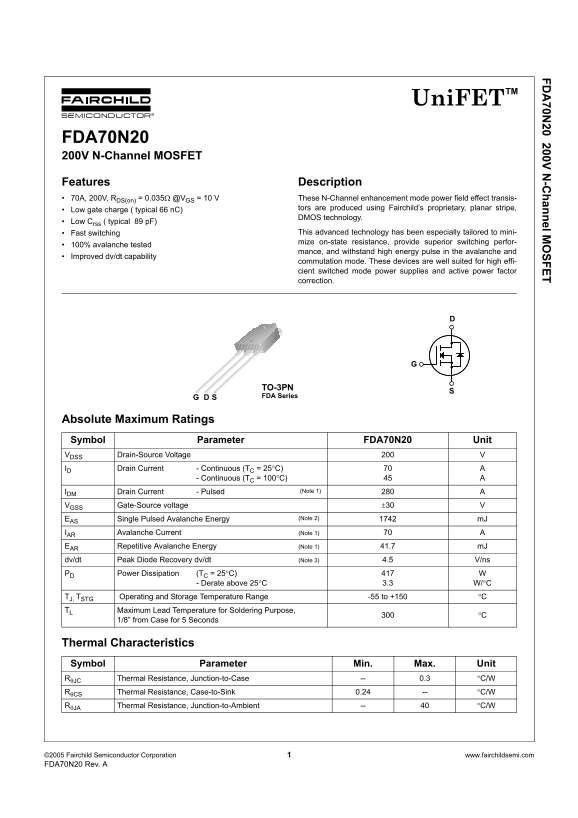

Fairchild FDA70N20 Product Specification Sheet

FD 70N 20 200V N -C hannel M SFET

Uni FETTM

FDA70N20 200V N-Channel MOSFET Features Description 70A, 200V, RDS(on) = 0.035Ω @VGS = 10 V These N-Channel enhancement mode power field effect transis-

tors are produced using Fairchild’s proprietary, planar stripe,

Low gate charge ( typical 66 n C)

DMOS technology.

Low Crss ( typical 89 p F)

Fast switching This advanced technology has been especially tailored to mini- mize on-state resistance, provide superior switching perfor-

100% avalanche tested

mance, and withstand high energy pulse in the avalanche and

Improved dv/dt capability

commutation mode. These devices are well suited for high effi- cient switched mode power supplies and active power factor correction.

TO-3PN SD FDA Series

Absolute Maximum Ratings Symbol Parameter FDA70N20 Unit VDSS Drain-Source Voltage

ID Drain Current - Continuous (TC = 25°C)

- Continuous (TC = 100°C)

IDM Drain Current - Pulsed (Note 1)

VGSS Gate-Source voltage ±30

EAS Single Pulsed Avalanche Energy (Note 2) m J

IAR Avalanche Current (Note 1)

EAR Repetitive Avalanche Energy (Note 1) 41.7 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 3.3 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

TL Maximum Lead Temperature for Soldering Purpose,

1/8” from Case for 5 Seconds

Thermal Characteristics Symbol Parameter Min. Max. Unit RθJC Thermal Resistance, Junction-to-Case 0.3 °C/W RθCS Thermal Resistance, Case-to-Sink 0.24 °C/W

RθJA Thermal Resistance, Junction-to-Ambient °C/W
