Fairchild FQPF7N10 Product Specification Sheet

Summary

The FQPF7N10 is a high-performance 100V N-Channel MOSFET optimized for low on-resistance and superior fast switching capabilities. This comprehensive datasheet provides detailed technical specifications, covering absolute maximum ratings, electrical characteristics, thermal parameters, and turn-on/off timing diagrams. It is an essential resource for design engineers building high-efficiency power systems, including DC/DC converters, audio amplifiers, and robust motor control circuits.

📄 Preview PAGE OF 8

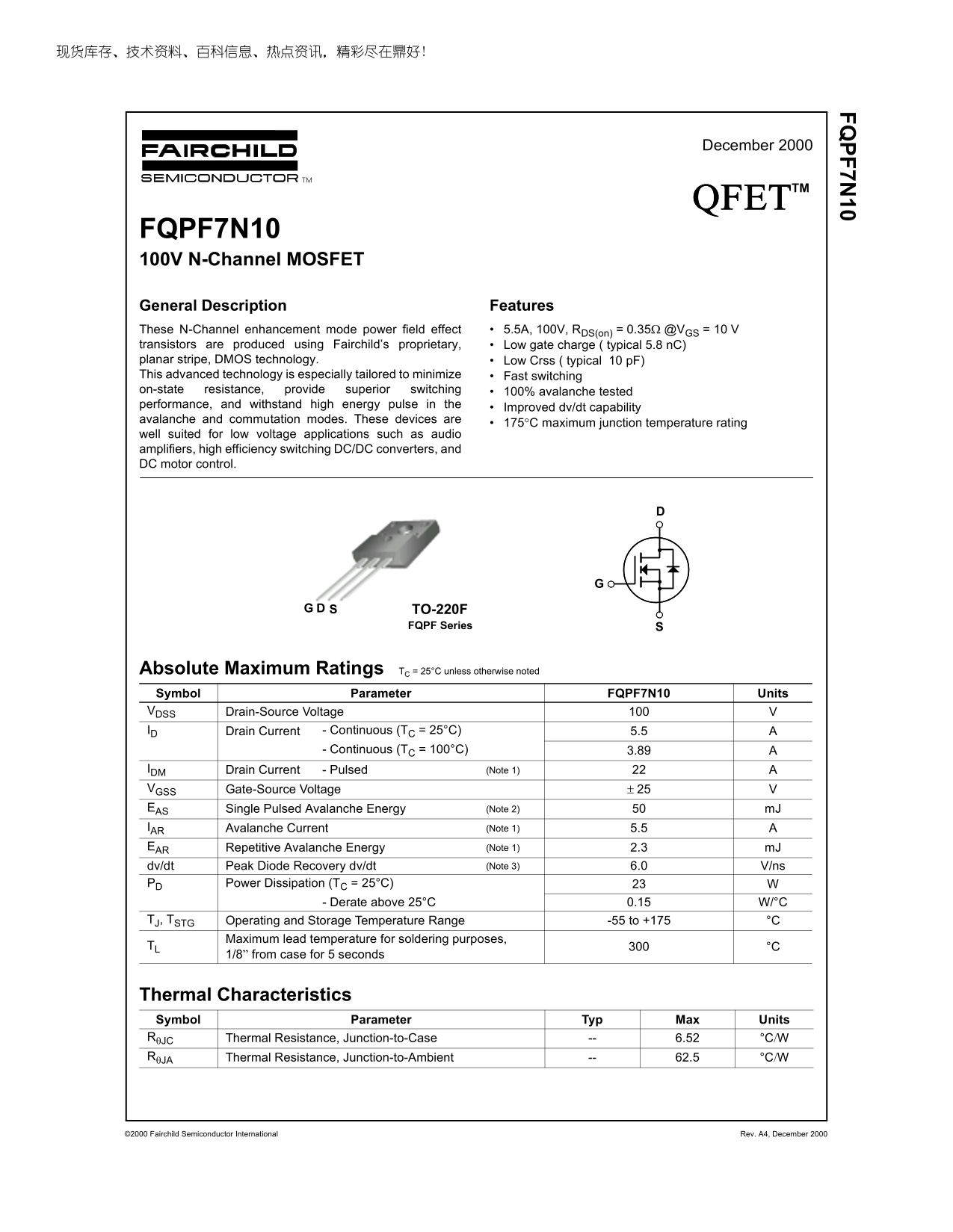

Page 1 Text Content

0QFETTM

December 2000

FQPF7N10 100V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 5.5A, 100V, RDS(on) = 0.35Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 5.8 n C) planar stripe, DMOS technology. Low Crss ( typical 10 p F) This advanced technology is especially tailored to minimize Fast switching on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation modes. These devices are

175°C maximum junction temperature rating

well suited for low voltage applications such as audio amplifiers, high efficiency switching DC/DC converters, and DC motor control.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF7N10 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 5.5

- Continuous (TC = 100°C) 3.89

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ± 25 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 5.5 EAR Repetitive Avalanche Energy (Note 1) 2.3 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 6.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.15 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8” from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 6.52 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A4, December 2000

Page Summary Contents For Fairchild FQPF7N10 Product Specification Sheet

Page 1 0QFETTM December 2000 FQPF7N10 100V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 5.5A, 100V, RDS(on) = 0.35Ω @VGS = 10 V transistors are produced u...
Page 2 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS Br...
Page 3 Typical Characteristics ap ac ita nc [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A VGS Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.0 V 5.5 V 5.0 V Bottom : 4.5 V ※ Notes : ※ Notes : 1. 250μs Pulse T...
Page 4 Typical Characteristics (Continued) BV SS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V GS = 0 V ※ Notes : 1. V GS = 10 V 2. ID = 3.65 A , Junction Temp...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Rev. A4, December 2000©2000 Fairchild Semiconductor International
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ Hi S...
