Fairchild FQPF140N03L Specifications

Summary

The FQPF140N03L is a high-performance N-Channel power MOSFET engineered for demanding low voltage applications requiring superior switching efficiency. Ideal for designing DC/DC converters and advanced power management circuitry in portable or battery-operated devices, this transistor features low on-resistance and exceptional handling of high-energy pulses. This comprehensive datasheet provides essential technical specifications, including absolute maximum ratings, detailed electrical characteristics, and switching timelines, enabling engineers to reliably integrate optimized and highly efficient power solutions into their designs.

📄 Preview PAGE OF 9

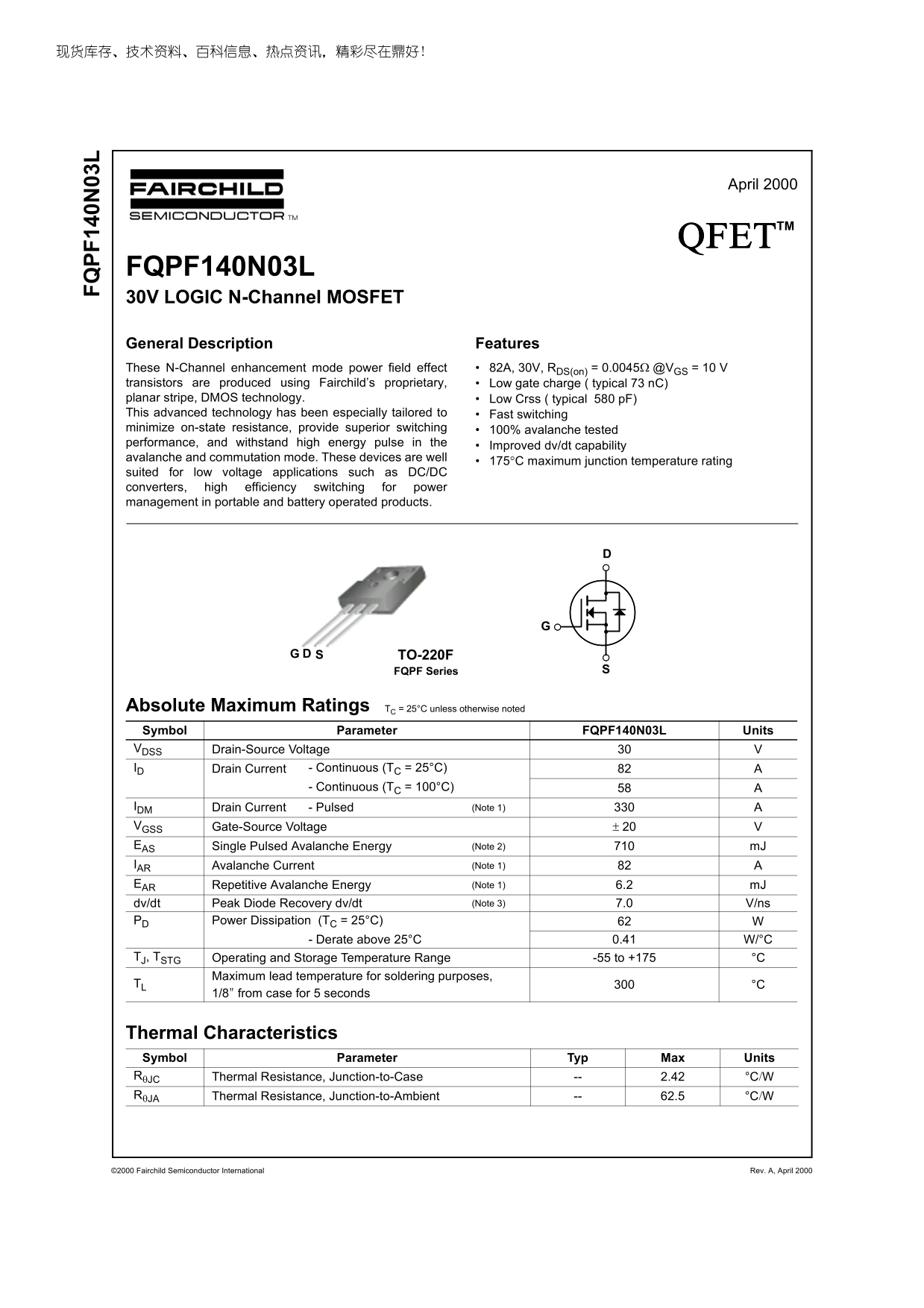

Page 1 Text Content

April 2000

QFETTM

FQPF140N03L 30V LOGIC N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 82A, 30V, RDS(on) = 0.0045Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 73 n C) planar stripe, DMOS technology. Low Crss ( typical 580 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well

175°C maximum junction temperature rating

suited for low voltage applications such as DC/DC converters, high efficiency switching for power management in portable and battery operated products.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF140N03L Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C)

- Continuous (TC = 100°C)

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ±20 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) EAR Repetitive Avalanche Energy (Note 1) 6.2 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 7.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.41 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8 from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 2.42 °CW RθJA Thermal Resistance, Junction-to-Ambient 62.5 °CW

©2000 Fairchild Semiconductor International Rev. A, April 2000

Page Summary Contents For Fairchild FQPF140N03L Specifications

Page 1 April 2000 QFETTM FQPF140N03L 30V LOGIC N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 82A, 30V, RDS(on) = 0.0045Ω @VGS = 10 V transistors are produc...
Page 2 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS Br...
Page 3 ap ac ita nc [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A Typical Characteristics Top : 10.0 V 8.0 V 6.0 V 5.0 V 4.5 V 4.0 V 3.5 V Bottom : 3.0 V Notes : Notes : 1. V = 15V 1. 250s Pulse...
Page 4 BV DS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge Typical Characteristics (Continued) Notes : 1. V GS = 0 V 0.5 Notes : 1. V GS = 10 V 2. I = 70 A TJ, Junction Temperatu...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ©2000 Fairchild Semiconductor International Rev. A, April 2000
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ Hi S...
Page 9 This datasheet has been download from: www.datasheetcatalog.com Datasheets for electronics components.
