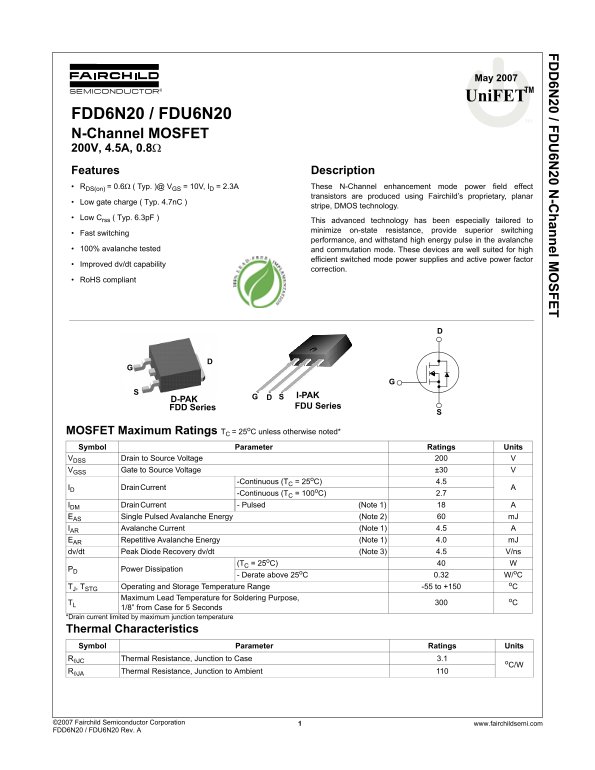

FD 6N 20 / FD 6N 20 N -C hannel M SFET
May 2007
Uni FETTM
FDD6N20 / FDU6N20
N-Channel MOSFET 200V, 4.5A, 0.8Ω Features Description RDS(on) = 0.6Ω ( Typ. )@ VGS = 10V, ID = 2.3A These N-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary, planar
Low gate charge ( Typ. 4.7n C )
stripe, DMOS technology.
Low Crss ( Typ. 6.3p F )
This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching
Fast switching
performance, and withstand high energy pulse in the avalanche
100% avalanche tested and commutation mode. These devices are well suited for high
efficient switched mode power supplies and active power factor
Improved dv/dt capability
correction.
Ro HS compliant
I-PAK
D-PAK
FDD Series FDU Series
MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter Ratings Units
VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±30
-Continuous (TC = 25o C) 4.5
ID Drain Current
-Continuous (TC = 100o C) 2.7
IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 4.5 EAR Repetitive Avalanche Energy (Note 1) 4.0 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns
(TC = 25o C)
PD Power Dissipation
- Derate above 25o C 0.32 W/o C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C
1/8” from Case for 5 Seconds
*Drain current limited by maximum junction temperature
Thermal Characteristics Symbol Parameter Ratings Units RθJC Thermal Resistance, Junction to Case 3.1
RθJA Thermal Resistance, Junction to Ambient 110
©2007 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDD6N20 / FDU6N20 Rev. A
