Fairchild FQA9P25 Specifications manual

Summary

This P-Channel MOSFET is engineered for demanding high-efficiency switching applications, making it ideal for designers building DC/DC converters and power supply systems. The accompanying datasheet provides comprehensive technical details, covering absolute maximum ratings, thermal performance, dynamic electrical characteristics (Ciss, Coss), and precise timing parameters needed for optimal circuit design. Use this robust component when reliable, fast-switching performance is critical.

📄 Preview PAGE OF 8

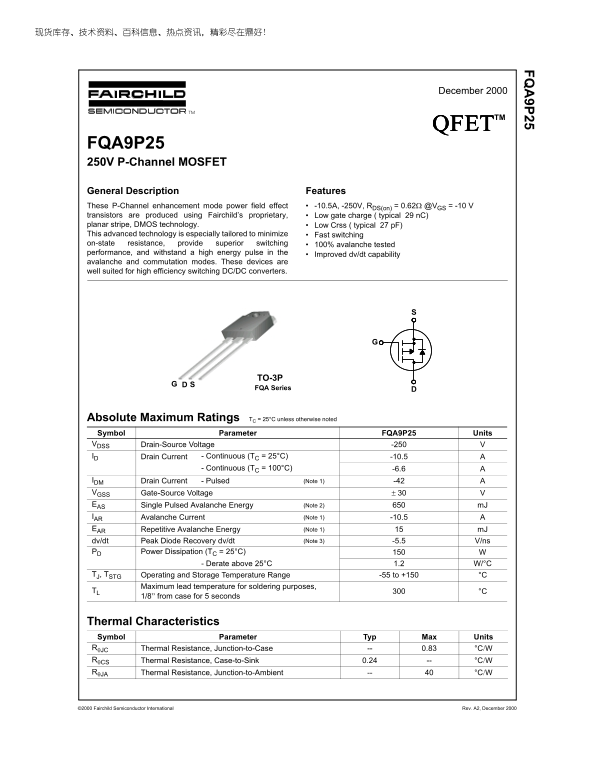

Page 1 Text Content

5QFETTM

December 2000

FQA9P25 250V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -10.5A, -250V, RDS(on) = 0.62Ω @VGS = -10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 29 n C) planar stripe, DMOS technology. Low Crss ( typical 27 p F) This advanced technology is especially tailored to minimize Fast switching on-state resistance, provide superior switching 100% avalanche tested performance, and withstand a high energy pulse in the

Improved dv/dt capability

avalanche and commutation modes. These devices are well suited for high efficiency switching DC/DC converters.

TO-3P

FQA Series G

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQA9P25 Units VDSS Drain-Source Voltage -250 ID Drain Current - Continuous (TC = 25°C) -10.5

- Continuous (TC = 100°C) -6.6

IDM Drain Current - Pulsed (Note 1) -42 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) -10.5 EAR Repetitive Avalanche Energy (Note 1) m J

dv/dt Peak Diode Recovery dv/dt (Note 3) -5.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 1.2 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8” from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 0.83 °C/W RθCS Thermal Resistance, Case-to-Sink 0.24 °C/W RθJA Thermal Resistance, Junction-to-Ambient °C/W

©2000 Fairchild Semiconductor International Rev. A2, December 2000

Page Summary Contents For Fairchild FQA9P25 Specifications manual

Page 1 5QFETTM December 2000 FQA9P25 250V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -10.5A, -250V, RDS(on) = 0.62Ω @VGS = -10 V transistors are produce...
Page 2 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = -250 µA -250 ∆BV...
Page 3 Typical Characteristics ap ac ita nc [p F] -I , D ra in ur re nt [A ra in -S ou rc n- es is ta nc Top : -15.0 V -10.0 V -8.0 V -7.0 V -6.5 V -6.0 V Bottom : -5.5 V ※ Notes : ※ Notes : 1. 250μs Pulse T...
Page 4 Typical Characteristics (Continued) -B SS , ( or al iz ed -I , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : ※ Notes : 1. V GS = 0 V 0.5 1. V GS = -10 V , Junction Temperature...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS on off td(on) tr td(off) tf VDD Unclamped Inductive Switching Test Circuit ...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Compliment of DUT (N-Channel) VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ...
Page 7 Package Dimensions TO-3P 5.45TYP 5.45TYP [5.45 ±0.30] [5.45 ±0.30] ©2000 Fairchild Semiconductor International Rev. A2, December 2000
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ Hi S...
