Fairchild FDB039N06 Specifications

Summary

This high-performance N-Channel PowerTrench MOSFET is engineered for robust, efficient power conversion in demanding applications such as DC/DC converters and synchronous rectifiers. The accompanying technical manual provides comprehensive data covering electrical characteristics, maximum current ratings (up to 174A), thermal metrics, switching performance curves, and deep application insights. This guide is essential for power electronics engineers and designers who require reliable components for compact, high-power management systems.

📄 Preview PAGE OF 8

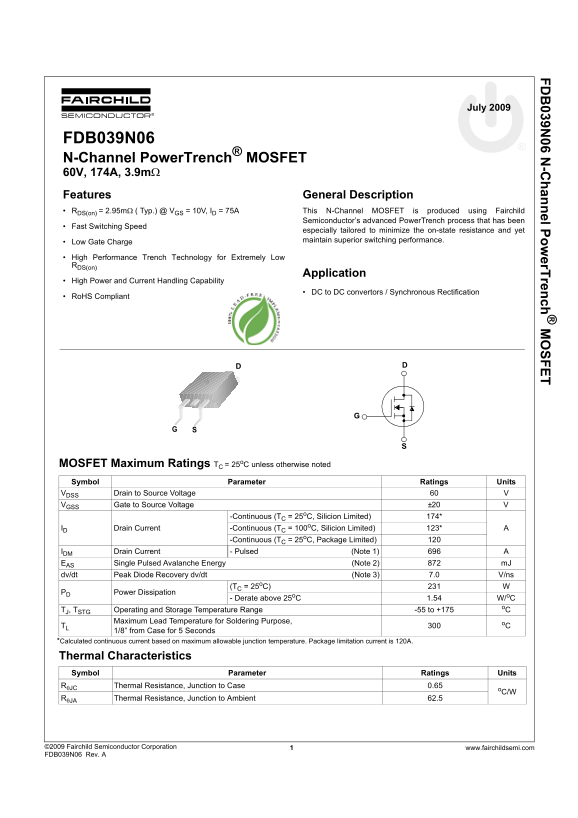

Page 1 Text Content

039N 06 N -C an el P er T ren ch

July 2009

FDB039N06 N-Channel Power Trench® MOSFET 60V, 174A, 3.9mΩ Features General Description RDS(on) = 2.95mΩ ( Typ.) @ VGS = 10V, ID = 75A This N-Channel MOSFET is produced using Fairchild

Semiconductor’s advanced Power Trench process that has been

Fast Switching Speed

especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Low Gate Charge

High Performance Trench Technology for Extremely Low RDS(on)

Application

High Power and Current Handling Capability

DC to DC convertors / Synchronous Rectification

Ro HS Compliant

MOSFET Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±20

-Continuous (TC = 25o C, Silicion Limited) 174*

ID Drain Current 123* A-Continuous (TC = 100o C, Silicion Limited)

-Continuous (TC = 25o C, Package Limited)

IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J dv/dt Peak Diode Recovery dv/dt (Note 3) 7.0 V/ns

(TC = 25o C)

PD Power Dissipation

- Derate above 25o C 1.54 W/o C

TJ, TSTG Operating and Storage Temperature Range -55 to +175

Maximum Lead Temperature for Soldering Purpose, o C

1/8” from Case for 5 Seconds

*Calculated continuous current based on maximum allowable junction temperature. Package limitation current is 120A.

Thermal Characteristics Symbol Parameter Ratings Units RθJC Thermal Resistance, Junction to Case 0.65

RθJA Thermal Resistance, Junction to Ambient 62.5

©2009 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDB039N06 Rev. A

Page Summary Contents For Fairchild FDB039N06 Specifications

Page 1 039N 06 N -C an el P er T ren ch July 2009 FDB039N06 N-Channel Power Trench® MOSFET 60V, 174A, 3.9mΩ Features General Description RDS(on) = 2.95mΩ ( Typ.) @ VGS = 10V, ID = 75A This N-Channel MOSFET i...
Page 2 039N 06 N -C an el P er T ren ch Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDB039N06 FDB039N06 TO-263 Tube Electrical Characteristics TC = 25...
Page 3 039N 06 N -C an el P er T ren ch ap ac it an ce [p (O ) [ ΩΩ ,D ra in rr en t[ ra in -S rc -R es is ta ce Typical Performance Characteristics Figure 1. On-Region Characteristics Figure 2. Transfer Cha...
Page 4 039N 06 N -C an el P er T ren ch , [ rm al iz ed , D ra in rr en [A ra in -S rc re ak lt ag Typical Performance Characteristics (Continued) Figure 7. Breakdown Voltage Variation Figure 8. On-Resistanc...
Page 5 039N 06 N -C an el P er T ren ch Gate Charge Test Circuit & Waveform Resistive Switching Test Circuit & Waveforms Unclamped Inductive Switching Test Circuit & Waveforms FDB039N06 Rev. A ww...
Page 6 039N 06 N -C an el P er T ren ch Peak Diode Recovery dv/dt Test Circuit & Waveforms FDB039N06 Rev. A www.fairchildsemi.com6
Page 7 039N 06 N -C an el P er T ren ch Mechanical Dimensions D2PAK Dimensions in Millimeters FDB039N06 Rev. A www.fairchildsemi.com7
Page 8 TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not intended to be an exhaustive lis...

Manual Details

Brand Fairchild
Pages 8
File Size 538.62 KB
Published June 18, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum Drain to Source Breakdown Voltage (VDSS) rating?

The Drain to Source Voltage rating is 60 V.

Can this MOSFET handle high continuous current loads?

Yes, it has a continuous drain current capacity of 174 A at T = 25°C.

Where should I purchase this component to guarantee authenticity and warranty coverage?

Product must be purchased directly from Fairchild or through Authorized Fairchild Distributors.
