Fairchild FQAF12P20 Specifications

Summary

A high-performance P-Channel MOSFET designed for demanding power switching applications. Featuring advanced DMOS technology, this component offers superior efficiency due to low on-state resistance and extremely fast switching capabilities. The manual provides comprehensive technical specifications, including absolute maximum ratings, detailed electrical characteristics (On/Off/Dynamic), and thermal performance guidelines. It is ideal for electronics designers building high-efficiency DC/DC converters or systems requiring robust handling of avalanche and commutation modes.

📄 Preview PAGE OF 8

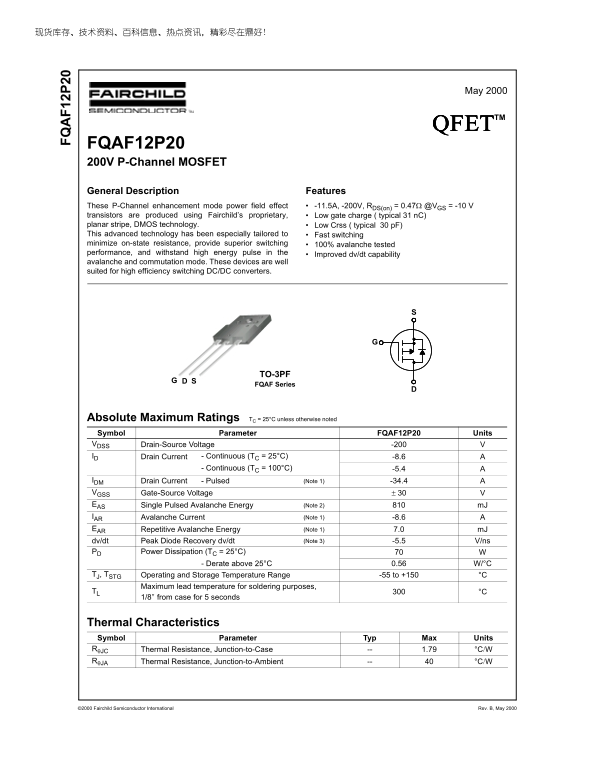

Page 1 Text Content

May 2000

QFETTM

FQAF12P20 200V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -11.5A, -200V, RDS(on) = 0.47Ω @VGS = -10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 31 n C) planar stripe, DMOS technology. Low Crss ( typical 30 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters.

TO-3PF

FQAF Series G

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQAF12P20 Units VDSS Drain-Source Voltage -200 ID Drain Current - Continuous (TC = 25°C) -8.6

- Continuous (TC = 100°C) -5.4

IDM Drain Current - Pulsed (Note 1) -34.4 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) -8.6 EAR Repetitive Avalanche Energy (Note 1) 7.0 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) -5.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.56 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 1.79 °C/W RθJA Thermal Resistance, Junction-to-Ambient °C/W

©2000 Fairchild Semiconductor International Rev. B, May 2000

Page Summary Contents For Fairchild FQAF12P20 Specifications

Page 1 May 2000 QFETTM FQAF12P20 200V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -11.5A, -200V, RDS(on) = 0.47Ω @VGS = -10 V transistors are produced us...
Page 2 Elerical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = -250 µA -200 ∆BVDS...
Page 3 Typical Characteristics ap ac ita nc [p F] ra in -S ou rc n- es is ta nc -I , D ra in ur re nt [A Top : -15.0 V -10.0 V -8.0 V -7.0 V -6.5 V -6.0 V Bottom : -5.5 V ※ Notes : ※ Notes : 1. 250μs Pulse T...
Page 4 Typical Characteristics (Continued) -B SS , ( or al iz ed -I , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V = 0 V 0.5 ※ Notes : 2. I = -250 μA 1. V GS = -10 V 2. I = -5....
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS on off td(on) tr td(off) tf VDD Unclamped Inductive Switching Test Circuit ...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Compliment of DUT (N-Channel) VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ...
Page 7 Package Dimensions TO-3PF .5 ±0 .2 5.45TYP 5.45TYP ©2000 Fairchild Semiconductor International Rev. B, May 2000
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
