The FDN371N is a high-performance 20V N-Channel MOSFET optimized for demanding power management applications. Built using advanced PowerTrench technology, this component is designed for reliability, featuring low gate charge and fast switching capabilities. This datasheet provides comprehensive technical documentation, detailing the device's absolute maximum ratings, complete electrical characteristics, thermal parameters, and performance curves. It is essential reference material for electronics engineers and designers selecting components for demanding power control systems.

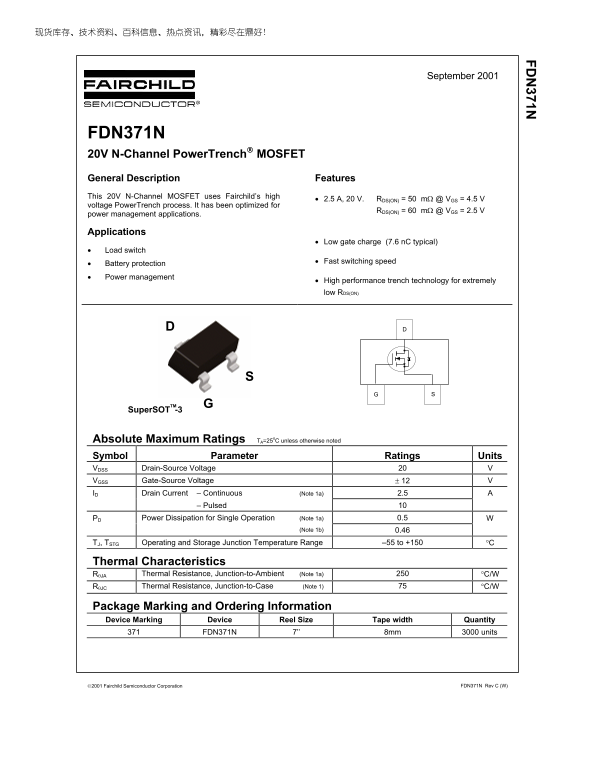

Page 1 Text Content
FD 371N
September 2001
FDN371N 20V N-Channel Power Trench MOSFET General Description Features This 20V N-Channel MOSFET uses Fairchild’s high
• 2.5 A, 20 V. RDS(ON) = 50 mΩ @ VGS = 4.5 V
voltage Power Trench process. It has been optimized for
RDS(ON) = 60 mΩ @ VGS = 2.5 V
power management applications.
Applications
• Low gate charge (7.6 n C typical)
• Load switch
• Fast switching speed
• Battery protection • Power management
• High performance trench technology for extremely low RDS(ON)
Super SOT -3TM
Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage ± 12 ID Drain Current – Continuous (Note 1a) 2.5
– Pulsed
Power Dissipation for Single Operation (Note 1a) 0.5PD
(Note 1b) 0.46
TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C
Thermal Characteristics
RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W
Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity
FDN371N 7’’ 8mm 3000 units
2001 Fairchild Semiconductor Corporation FDN371N Rev C (W)
