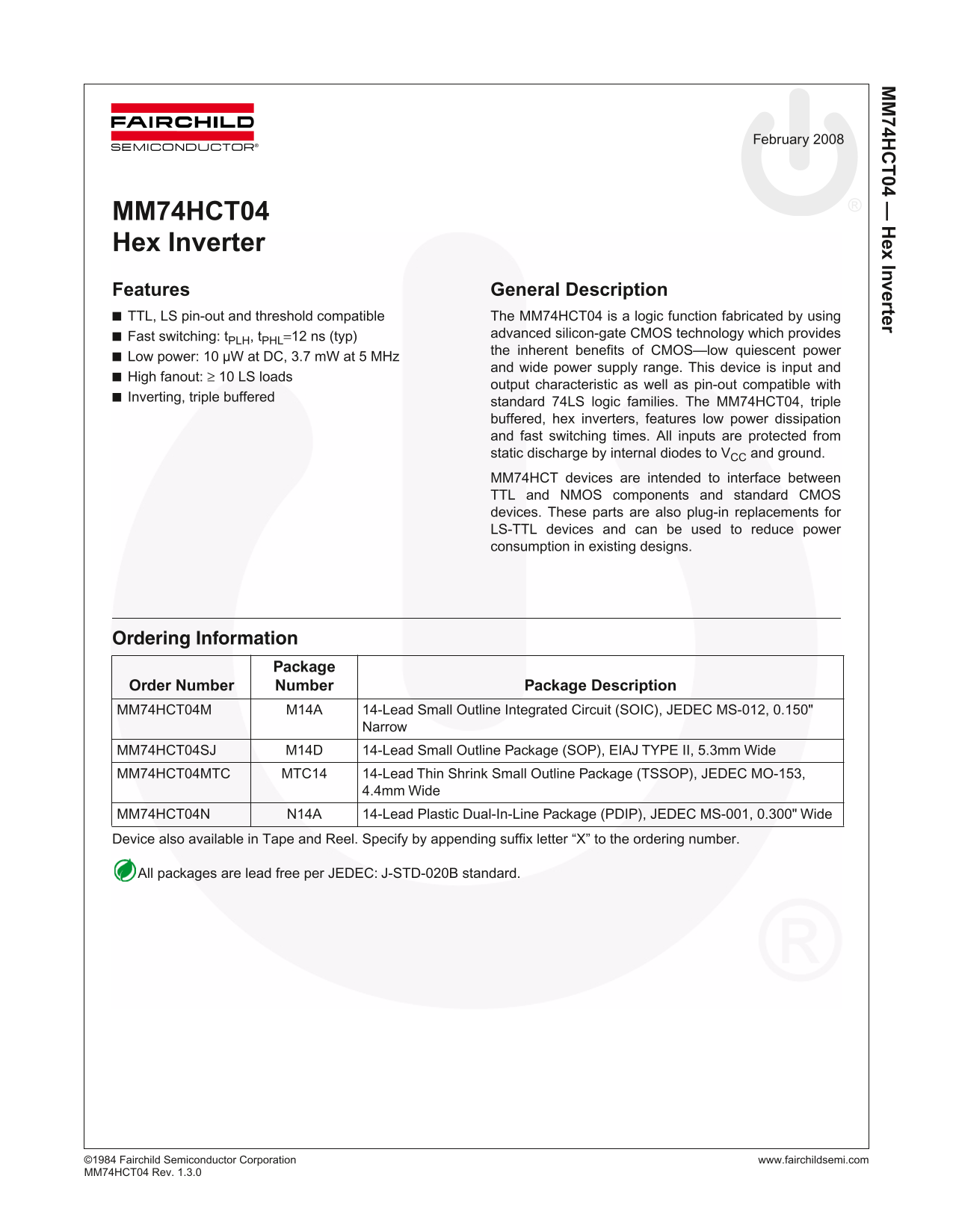

74H 04 — ex Inverter
February 2008
MM74HCT04 Hex Inverter Features General Description TTL, LS pin-out and threshold compatible The MM74HCT04 is a logic function fabricated by using
Fast switching: t PLH, t PHL=12 ns (typ) advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS—low quiescent power
Low power: 10 µW at DC, 3.7 m W at 5 MHz
and wide power supply range. This device is input and
High fanout: ≥ 10 LS loads
output characteristic as well as pin-out compatible with
Inverting, triple buffered
standard 74LS logic families. The MM74HCT04, triple buffered, hex inverters, features low power dissipation and fast switching times. All inputs are protected from static discharge by internal diodes to VCC and ground. MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug-in replacements for LS-TTL devices and can be used to reduce power consumption in existing designs.
Ordering Information
Package
Order Number Number Package Description MM74HCT04M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150"
Narrow
MM74HCT04SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide MM74HCT04MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
4.4mm Wide
MM74HCT04N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.
All packages are lead free per JEDEC: J-STD-020B standard.
©1 984 Fairchild Semiconductor Corporation www.fairchildsemi.com MM 74HCT04 Rev. 1.3.0
