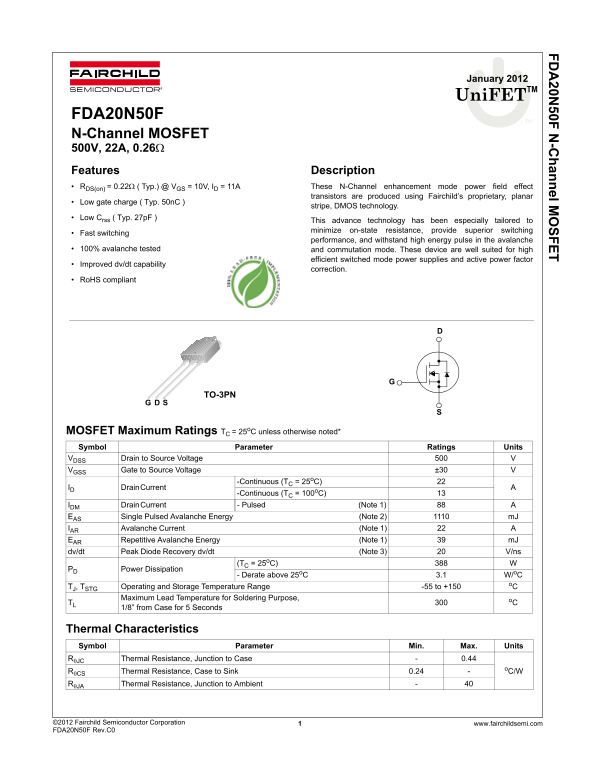

Page 1 Text Content
FD 20N 50F N -C hannel M SFET
January 2012
Uni FET TM
FDA20N50F
N-Channel MOSFET 500V, 22A, 0.26Ω Features Description RDS(on) = 0.22Ω ( Typ.) @ VGS = 10V, ID = 11A These N-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary, planar
Low gate charge ( Typ. 50n C )
stripe, DMOS technology.
Low Crss ( Typ. 27p F )
This advance technology has been especially tailored to minimize on-state resistance, provide superior switching
Fast switching
performance, and withstand high energy pulse in the avalanche
100% avalanche tested and commutation mode. These device are well suited for high
efficient switched mode power supplies and active power factor
Improved dv/dt capability
correction.
Ro HS compliant
TO-3PN
MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter Ratings Units
VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±30
-Continuous (TC = 25o C)
ID Drain Current
-Continuous (TC = 100o C)
IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) EAR Repetitive Avalanche Energy (Note 1) m J
dv/dt Peak Diode Recovery dv/dt (Note 3) V/ns
(TC = 25o C)
PD Power Dissipation
- Derate above 25o C 3.1 W/o C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C
1/8” from Case for 5 Seconds
Thermal Characteristics Symbol Parameter Min. Max. Units RθJC Thermal Resistance, Junction to Case - 0.44
o C/WRθCS
Thermal Resistance, Case to Sink 0.24 RθJA Thermal Resistance, Junction to Ambient -
