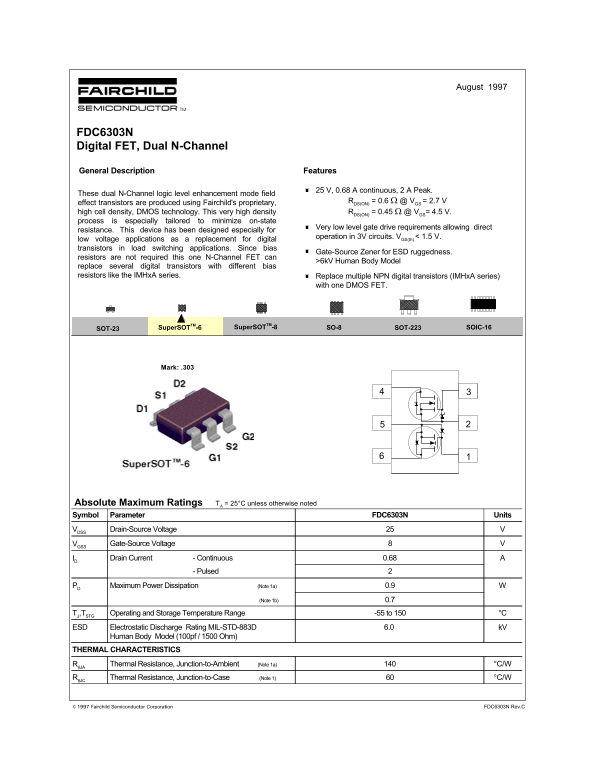

Page 1 Text Content
August 1997
FDC6303N Digital FET, Dual N-Channel
General Description Features
25 V, 0.68 A continuous, 2 A Peak.
These dual N-Channel logic level enhancement mode field
effect transistors are produced using Fairchild's proprietary, RDS(ON) = 0.6 Ω @ VGS = 2.7 V
high cell density, DMOS technology. This very high density RDS(ON) = 0.45 Ω @ VGS= 4.5 V. process is especially tailored to minimize on-state
Very low level gate drive requirements allowing direct
resistance. This device has been designed especially for
operation in 3V circuits. VGS(th) < 1.5 V.
low voltage applications as a replacement for digital transistors in load switching applications. Since bias
Gate-Source Zener for ESD ruggedness.
resistors are not required this one N-Channel FET can
>6k V Human Body Model
replace several digital transistors with different bias resistors like the IMHx A series. Replace multiple NPN digital transistors (IMHx A series)
with one DMOS FET.
SOT-23 Super SOTTM-8 SOT-223Super SOTTM-6 SOIC-16SO-8
Mark: .303
Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter FDC6303N Units VDSS Drain-Source Voltage
VGSS Gate-Source Voltage
ID Drain Current - Continuous 0.68
- Pulsed
PD Maximum Power Dissipation (Note 1a) 0.9
(Note 1b) 0.7
TJ,TSTG Operating and Storage Temperature Range -55 to 150 °C
ESD Electrostatic Discharge Rating MIL-STD-883D 6.0 k V
Human Body Model (100pf / 1500 Ohm)
THERMAL CHARACTERISTICS
RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W
RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W
© 1997 Fairchild Semiconductor Corporation FDC6303N Rev.C
