The MM74HCU04 is a reliable and high-speed Hex Inverter integrated circuit designed for digital logic applications. Built using advanced CMOS technology, this unbuffered chip provides robust signal inversion with low power consumption and stable operation across specified temperature ranges. This manual offers comprehensive technical documentation, including absolute maximum ratings, detailed electrical characteristics, and recommended operating conditions. It serves as an essential guide for electronic engineers and designers selecting components that require fast, reliable, and efficient signal conditioning or logic implementation.

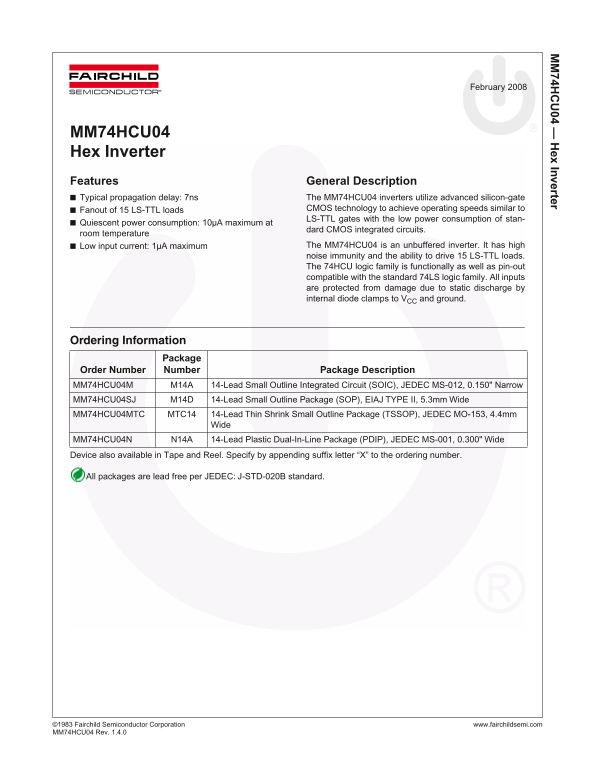

Page 1 Text Content
74H 04 — ex Inverter
February 2008
MM74HCU04 Hex Inverter Features General Description Typical propagation delay: 7ns The MM74HCU04 inverters utilize advanced silicon-gate
Fanout of 15 LS-TTL loads CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of stan-
Quiescent power consumption: 10µA maximum at
dard CMOS integrated circuits.
room temperature
Low input current: 1µA maximum The MM74HCU04 is an unbuffered inverter. It has high noise immunity and the ability to drive 15 LS-TTL loads. The 74HCU logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Ordering Information
Package
Order Number Number Package Description MM74HCU04M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow MM74HCU04SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide MM74HCU04MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm
MM74HCU04N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.
All packages are lead free per JEDEC: J-STD-020B standard.
©1 983 Fairchild Semiconductor Corporation www.fairchildsemi.com MM 74HCU04 Rev. 1.4.0
Page Summary Contents For Fairchild MM74HCU04 Hex Inverter Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 363.11 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What logic family is the MM74HCU04 compatible with?
It is functionally and pin-out compatible with the standard 74LS logic family.
What are the recommended operating temperature limits?
The device operates optimally between –40°C and +85°C.
How much power does the chip consume when idle at room temperature?
Quiescent power consumption is limited to a maximum of 10µA.
What physical packages are available for ordering this inverter?
Available packages include SOIC, SOP, TSSOP, and PDIP.
