Fairchild 74LCX06 Low Voltage Hex Inverter Buffer with Open Drain Outputs Data Manual
Summary
This datasheet covers the Fairchild Semiconductor 74LCX06 low voltage hex inverter/buffer with open drain outputs, fabricated with advanced CMOS technology. The device features 5V tolerant inputs that accept voltages up to 7V, enabling interface between 5V and 3V systems, with VCC specifications from 2.3V to 3.6V. Key performance includes a propagation delay of 3.7ns typical at 3.3V, 24mA output drive capability, and maximum quiescent current of 10μA. The open drain outputs support active LOW wi

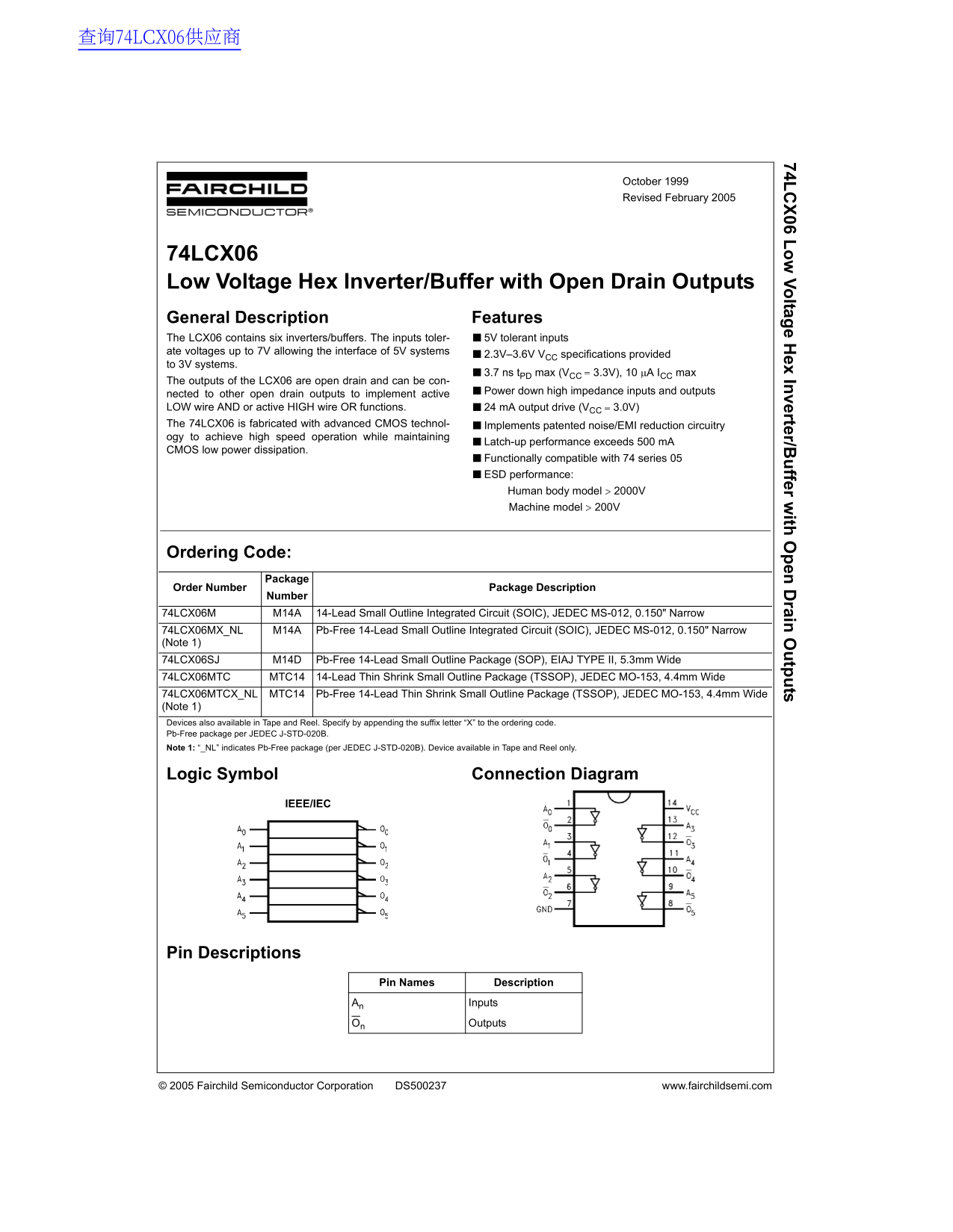

Page 1 Text Content
查询74LCX06供应商
74L 06 L ltag e H ex In verter/B ffer w ith en rain tp ts
October 1999 Revised February 2005
74LCX06 Low Voltage Hex Inverter/Buffer with Open Drain Outputs General Description Features The LCX06 contains six inverters/buffers. The inputs toler- ■5V tolerant inputs ate voltages up to 7V allowing the interface of 5V systems
■2.3V–3.6V VCC specifications provided
to 3V systems.
■3.7 ns t PD max (VCC 3.3V), 10 PA ICC max
The outputs of the LCX06 are open drain and can be con-
nected to other open drain outputs to implement active ■Power down high impedance inputs and outputs
LOW wire AND or active HIGH wire OR functions. ■24 m A output drive (VCC 3.0V) The 74LCX06 is fabricated with advanced CMOS technol- Implements patented noise/EMI reduction circuitry ogy to achieve high speed operation while maintaining
■Latch-up performance exceeds 500 m A
CMOS low power dissipation.
■Functionally compatible with 74 series 05 ■ESD performance: Human body model ! 2000V Machine model ! 200V
Ordering Code:
Package
Order Number Package Description
Number
74LCX06M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow 74LCX06MX_NL M14A Pb-Free 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow (Note 1) 74LCX06SJ M14D Pb-Free 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74LCX06MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide 74LCX06MTCX_NL MTC14 Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide (Note 1) Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code. Pb-Free package per JEDEC J-STD-020B. Note 1: “_NL” indicates Pb-Free package (per JEDEC J-STD-020B). Device available in Tape and Reel only.
Logic Symbol Connection Diagram
IEEE/IEC
Pin Descriptions
Pin Names Description
An Inputs
On Outputs
© 2005 Fairchild Semiconductor Corporation DS500237 www.fairchildsemi.com
Page Summary Contents For Fairchild 74LCX06 Low Voltage Hex Inverter Buffer with Open Drain Outputs Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 7 |
| File Size | 91.40 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What type of output configuration does the 74LCX06 use?
The outputs are open drain, which allows implementing active LOW wire AND or active HIGH wire OR functions by connecting them to other open drain outputs.
What voltage range can this inverter tolerate for inputs?
It tolerates high voltages up to 7V on inputs, allowing interfacing between 5V systems and those running at 2.3V–3.6V.
Which physical packages are available for ordering?
Available packages include SOIC (M14A), SOP (M14D), or TSSOP (MTC14). Pb-Free options use the suffix _NL or _LX_NL.
What is the ESD performance of this device?
The electrostatic discharge (ESD) performance is 2000V for the human body model and 200V for the machine model.
