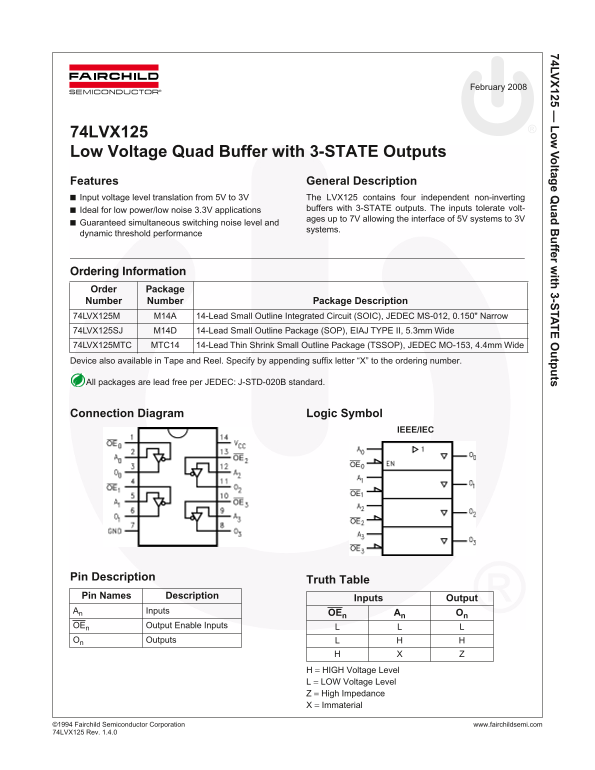

74LVX125 Low Voltage Quad Buffer with 3-STATE Outputs Features General Description Input voltage level translation from 5V to 3V The LVX125 contains four independent non-inverting

Ideal for low power/low noise 3.3V applications buffers with 3-STATE outputs. The inputs tolerate volt- ages up to 7V allowing the interface of 5V systems to 3V

Guaranteed simultaneous switching noise level and

systems.

dynamic threshold performance

Ordering Information Order Package Number Number Package Description 74LVX125M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow 74LVX125SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74LVX125MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

Connection Diagram Logic Symbol

IEEE/IEC

Pin Description

Truth Table

Pin Names Description

Inputs Output

An Inputs OEn An On OEn Output Enable Inputs

On Outputs

H = HIGH Voltage Level L = LOW Voltage Level Z = High Impedance X = Immaterial

©1 994 Fairchild Semiconductor Corporation www.fairchildsemi.com 74L VX125 Rev. 1.4.0
