These hex inverter buffers/drivers are essential components for engineers designing mixed-voltage digital logic circuits. Operating reliably between 1.65V and 3.6V, they feature open-drain outputs, enabling efficient active-low wired-OR or wired-AND functionality. Their ability to function as a signal translator across both 3.3V and 5V systems makes them highly valuable for versatile system integration. This manual provides comprehensive documentation, including wide temperature specifications, package options, and detailed electrical requirements needed for seamless circuit implementation.
Page 1 Text Content

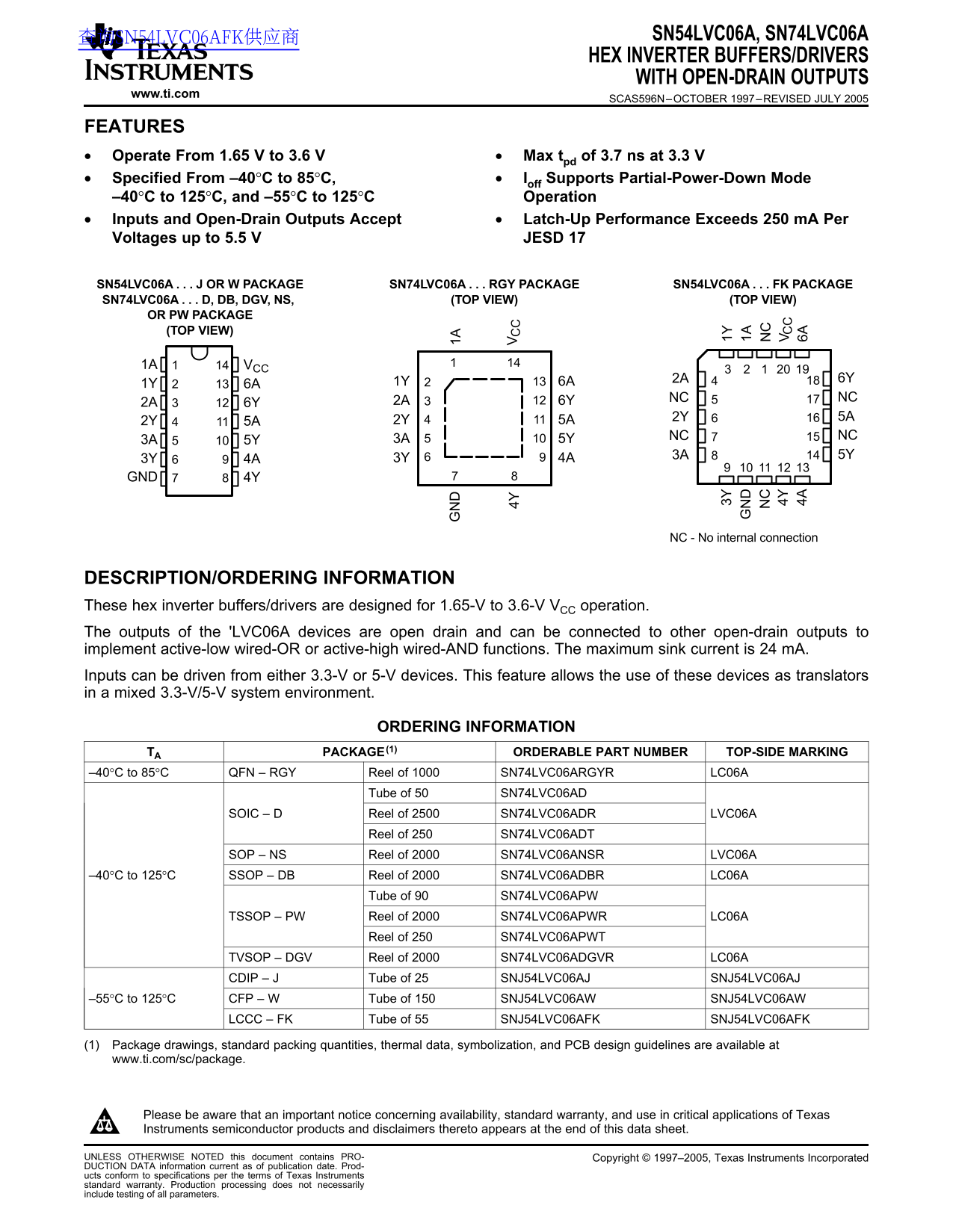

查询SN54LVC06AFK供应商 SN54LVC06A, SN74LVC06A
HEX INVERTER BUFFERS/DRIVERS
WITH OPEN-DRAIN OUTPUTS
www.ti.com
SCAS596N–OCTOBER 1997–REVISED JULY
FEATURES
Operate From 1.65 to 3.6 Max tpd of 3.7 ns at 3.3
Specified From –40°C to 85°C, Ioff Supports Partial-Power-Down Mode
–40°C to 125°C, and –55°C to 125°C Operation
Inputs and Open-Drain Outputs Accept Latch-Up Performance Exceeds m A Per
Voltages up to 5.5 JESD
SN54LVC06A J OR W PACKAGE SN74LVC06A RGY PACKAGE SN54LVC06A FK PACKAGE SN74LVC06A D, DB, DGV, NS, (TOP VIEW) (TOP VIEW)
OR PW PACKAGE (TOP VIEW)
1A VCC
2A 6Y NC NC
3A 5Y NC NC
3Y 4A GND 4Y
4Y NC - No internal connection
DESCRIPTION/ORDERING INFORMATION
These hex inverter buffers/drivers are designed for 1.65-V to 3.6-V VCC operation.
The outputs of the 'LVC06A devices are open drain and can be connected to other open-drain outputs to
implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is m A.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators
in mixed 3.3-V/5-V system environment.
ORDERING INFORMATION 3Y 1Y
TA PACKAGE ORDERABLE PART NUMBER TOP-SIDE MARKING
–40°C to 85°C QFN RGY Reel of SN74LVC06ARGYR LC06A
Tube of SN74LVC06AD
SOIC Reel of SN74LVC06ADR LVC06A
Reel of SN74LVC06ADT
SOP NS Reel of SN74LVC06ANSR LVC06A
–40°C to 125°C SSOP DB Reel of SN74LVC06ADBR LC06A
Tube of SN74LVC06APW
TSSOP PW Reel of SN74LVC06APWR LC06A
Reel of SN74LVC06APWT
TVSOP DGV Reel of SN74LVC06ADGVR LC06A
CDIP Tube of SNJ54LVC06AJ SNJ54LVC06AJ
–55°C to 125°C CFP Tube of SNJ54LVC06AW SNJ54LVC06AW
LCCC FK Tube of SNJ54LVC06AFK SNJ54LVC06AFK
(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
UNLESS OTHERWISE NOTED this document contains PRO- Copyright 1997–2005, Texas Instruments Incorporated
DUCTION DATA information current as of publication date. Prod-
ucts conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily
include testing of all parameters.
Page Summary Contents For Texas Instruments SN54LVC06A, SN74LVC06A Hex Inverter Buffers Drivers with Open-Drain Outputs Data Sheet Manual User Guide
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 15 |
| File Size | 359.28 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range for this device?
It can operate from 1.65 V to 3.6 V.
Can I connect it in a mixed 3.3-V/5-V system?
Yes, inputs can be driven from either 3.3-V or 5-V devices, allowing use as a translator.
What is the maximum sink current of the open-drain outputs?
The maximum sink current is 24 mA.
Does it support high temperatures and power-down modes?
Yes, some versions support partial-power-down mode down to –55°C or up to 125°C. The specified operating range is –40°C to 85°C.
