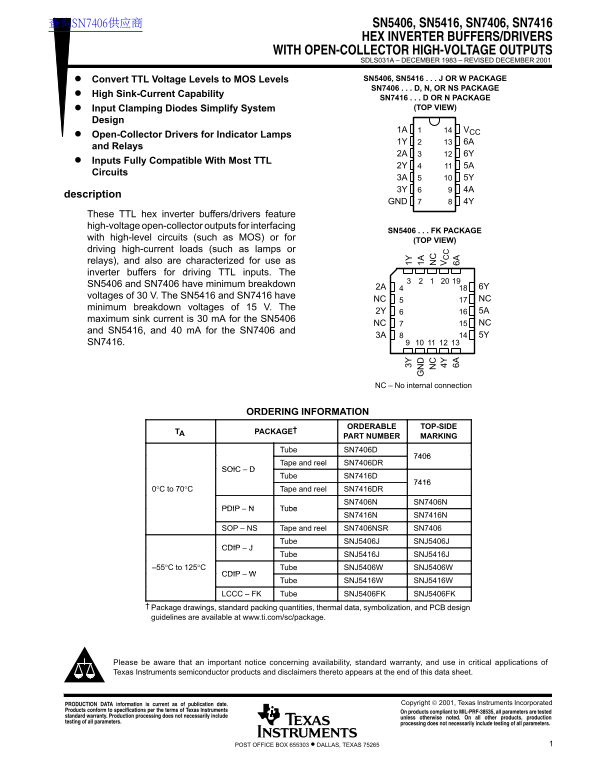

Texas Instruments SN5406, SN5416, SN7406, SN7416 Hex Inverter Buffers Drivers with Open-Collector High-Voltage Outputs Data Manual

查询SN7406供应商 SN5406, SN5416, SN7406, SN7416

HEX INVERTER BUFFERS/DRIVERS

WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS

SDLS031A – DECEMBER 1983 – REVISED DECEMBER 2001

Convert TTL Voltage Levels to MOS Levels SN5406, SN5416 J OR W PACKAGE SN7406 D, N, OR NS PACKAGE

High Sink-Current Capability

SN7416 D OR N PACKAGE

Input Clamping Diodes Simplify System (TOP VIEW)

Design

1A VCC

Open-Collector Drivers for Indicator Lamps

and Relays

Inputs Fully Compatible With Most TTL

Circuits

description

GND 4Y

These TTL hex inverter buffers/drivers feature high-voltage open-collector outputs for interfacing

SN5406 FK PACKAGE

with high-level circuits (such as MOS) or for

(TOP VIEW)

driving high-current loads (such as lamps or relays), and also are characterized for use as inverter buffers for driving TTL inputs. The SN5406 and SN7406 have minimum breakdown

voltages of 30 V. The SN5416 and SN7416 have

NC NC

minimum breakdown voltages of 15 V. The

maximum sink current is 30 m A for the SN5406

NC NC

and SN5416, and 40 m A for the SN7406 and

SN7416.

NC – No internal connection

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

Tube SN7406D

Tape and reel SN7406DR

Tube SN7416D

0°C to 70°C Tape and reel SN7416DR

SN7406N SN7406N

PDIP Tube

SN7416N SN7416N

SOP – NS Tape and reel SN7406NSR SN7406

Tube SNJ5406J SNJ5406J

Tube SNJ5416J SNJ5416J

–55°C to 125°C Tube SNJ5406W SNJ5406W

Tube SNJ5416W SNJ5416W

LCCC – FK Tube SNJ5406FK SNJ5406FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2001, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
