Fairchild FDD6796A FDU6796A_ F071 Specifications
Summary
This high-efficiency N-Channel PowerTrench MOSFET is engineered for reliable performance in DC/DC conversion applications, making it ideal for Vcore supplies and VRMs used in servers and desktop computers. Designed with optimized low gate charge and fast switching capabilities, the device features exceptional on-resistance ($R_{DS(on)}$). The accompanying datasheet provides extensive coverage of key electrical parameters, including maximum ratings (voltage, current), thermal characteristics, and detailed switching performance data required for professional power circuit design.

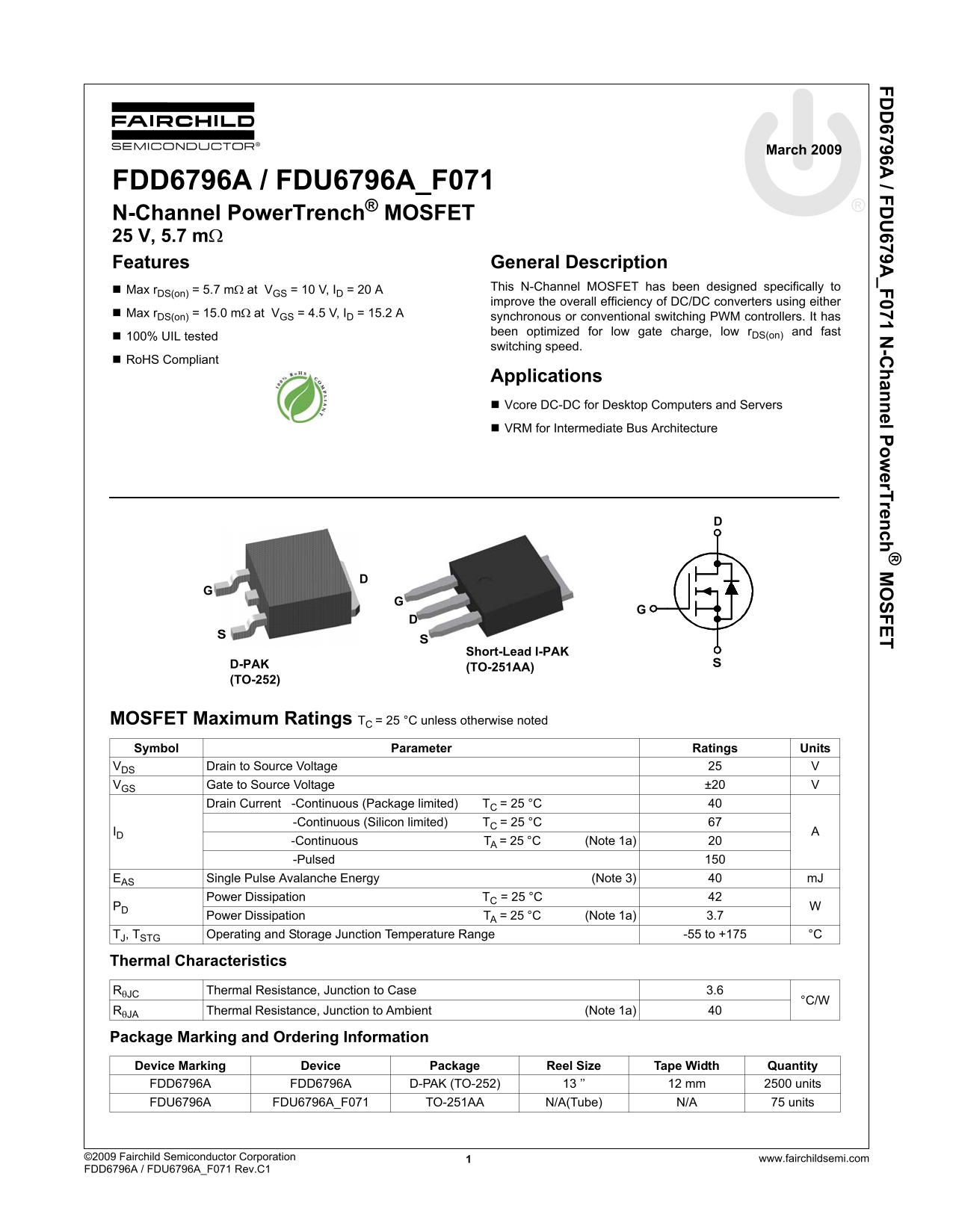

Page 1 Text Content
FD 6796A / FD 679A _F071 N -C hannel Pow er T rench SFET
March 2009
FDD6796A / FDU6796A_F071 N-Channel Power Trench® MOSFET 25 V, 5.7 mΩ Features General Description
Max r DS(on) = 5.7 mΩ at VGS = 10 V, ID = 20 A This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either
Max r DS(on) = 15.0 mΩ at VGS = 4.5 V, ID = 15.2 A
synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low r DS(on) and fast
100% UIL tested
switching speed.
Ro HS Compliant
Applications Vcore DC-DC for Desktop Computers and Servers VRM for Intermediate Bus Architecture
Short-Lead I-PAK
D-PAK (TO-251AA) (TO-252)
MOSFET Maximum Ratings TC = 25 °C unless otherwise noted Symbol Parameter Ratings Units
VDS Drain to Source Voltage VGS Gate to Source Voltage ±20 Drain Current -Continuous (Package limited) TC = 25 °C 40 -Continuous (Silicon limited) TC = 25 °C
-Continuous TA = 25 °C (Note 1a) -Pulsed EAS Single Pulse Avalanche Energy (Note 3) m J Power Dissipation TC = 25 °C
Power Dissipation TA = 25 °C (Note 1a) 3.7
TJ, TSTG Operating and Storage Junction Temperature Range -55 to +175 °C
Thermal Characteristics
RθJC Thermal Resistance, Junction to Case 3.6
RθJA Thermal Resistance, Junction to Ambient (Note 1a)
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD6796A FDD6796A D-PAK (TO-252) 13 ’’ 12 mm 2500 units FDU6796A FDU6796A_F071 TO-251AA N/A(Tube) N/A 75 units
