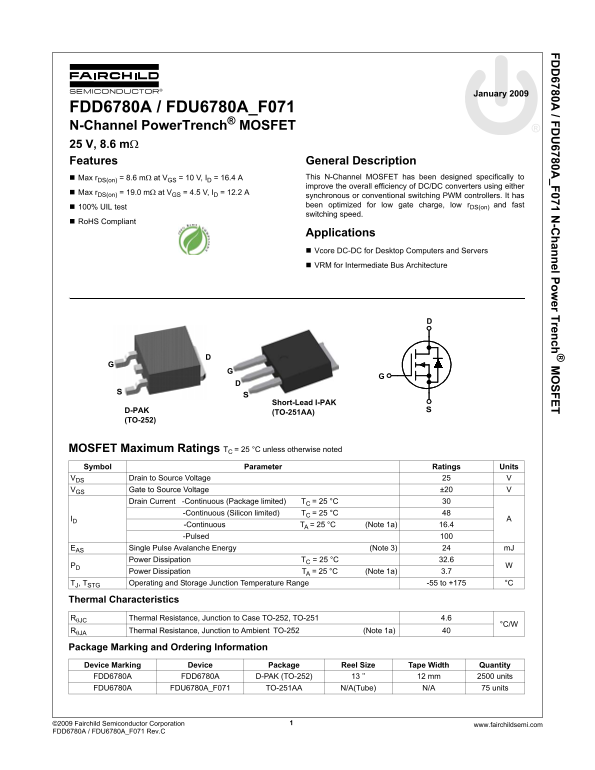

Page 1 Text Content
FD 6780A / FD 6780A _F071 N -C hannel Pow er Trench SFET
January 2009
FDD6780A / FDU6780A_F071 N-Channel Power Trench® MOSFET 25 V, 8.6 mΩ Features General Description
Max r DS(on) = 8.6 mΩ at VGS = 10 V, ID = 16.4 A This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either
Max r DS(on) = 19.0 mΩ at VGS = 4.5 V, ID = 12.2 A
synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low r DS(on) and fast
100% UIL test
switching speed.
Ro HS Compliant
Applications Vcore DC-DC for Desktop Computers and Servers VRM for Intermediate Bus Architecture
Short-Lead I-PAK
D-PAK (TO-251AA) (TO-252)
MOSFET Maximum Ratings TC = 25 °C unless otherwise noted Symbol Parameter Ratings Units
VDS Drain to Source Voltage VGS Gate to Source Voltage ±20 Drain Current -Continuous (Package limited) TC = 25 °C 30 -Continuous (Silicon limited) TC = 25 °C
-Continuous TA = 25 °C (Note 1a) 16.4
-Pulsed EAS Single Pulse Avalanche Energy (Note 3) m J Power Dissipation TC = 25 °C 32.6
Power Dissipation TA = 25 °C (Note 1a) 3.7
TJ, TSTG Operating and Storage Junction Temperature Range -55 to +175 °C
Thermal Characteristics
RθJC Thermal Resistance, Junction to Case TO-252, TO-251 4.6
RθJA Thermal Resistance, Junction to Ambient TO-252 (Note 1a) 40
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD6780A FDD6780A D-PAK (TO-252) 13 ’’ 12 mm 2500 units FDU6780A FDU6780A_F071 TO-251AA N/A(Tube) N/A 75 units
©2009 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDD6780A / FDU6780A_F071 Rev.C
