Fairchild FDB031N08 User Guide

Summary

A high-performance N-Channel MOSFET, ideal for robust power applications such as DC/DC converters and synchronous rectifiers. Featuring advanced PowerTrench technology, this component delivers superior switching speed and ultra-low on-state resistance (2.4 mΩ typ.) while handling up to 235A of continuous current. This manual provides technical designers with comprehensive specifications, including detailed electrical characteristics, thermal ratings, and performance curves needed for integrating high-efficiency, reliable power solutions into sophisticated electronic circuits.

📄 Preview 📖 Table of Contents Contents PAGE OF 8

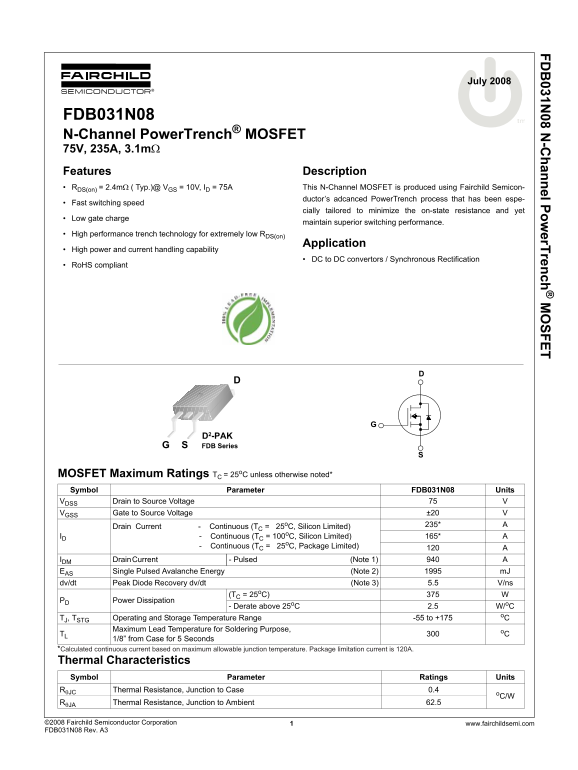

Page 1 Text Content

FD 031N 08 N -C hannel Pow er Trench SFET

July 2008

FDB031N08

N-Channel Power Trench® MOSFET 75V, 235A, 3.1mΩ Features Description RDS(on) = 2.4mΩ ( Typ.)@ VGS = 10V, ID = 75A This N-Channel MOSFET is produced using Fairchild Semicon-

ductor’s adcanced Power Trench process that has been espe-

Fast switching speed

cially tailored to minimize the on-state resistance and yet

Low gate charge

maintain superior switching performance.

High performance trench technology for extremely low RDS(on)

Application

High power and current handling capability

DC to DC convertors / Synchronous Rectification

Ro HS compliant

D2-PAK FDB Series G

MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter FDB031N08 Units VDSS Drain to Source Voltage

VGSS Gate to Source Voltage ±20

Drain Current - Continuous (TC = 25o C, Silicon Limited) 235*

ID - Continuous (TC = 100o C, Silicon Limited) 165* - Continuous (TC = 25o C, Package Limited) IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 5.5 V/ns

(TC = 25o C)

PD Power Dissipation

- Derate above 25o C 2.5 W/o C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 Maximum Lead Temperature for Soldering Purpose, o C

1/8” from Case for 5 Seconds

*Calculated continuous current based on maximum allowable junction temperature. Package limitation current is 120A. Thermal Characteristics Symbol Parameter Ratings Units RθJC Thermal Resistance, Junction to Case 0.4

RθJA Thermal Resistance, Junction to Ambient 62.5

©2008 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDB031N08 Rev. A3

Page Summary Contents For Fairchild FDB031N08 User Guide

Page 1 FD 031N 08 N -C hannel Pow er Trench SFET July 2008 FDB031N08 N-Channel Power Trench® MOSFET 75V, 235A, 3.1mΩ Features Description RDS(on) = 2.4mΩ ( Typ.)@ VGS = 10V, ID = 75A This N-Channel MOSFET is...
Page 2 FD 031N 08 N -C hannel Pow er Trench SFET Package Marking and Ordering Information TC = 25o C unless otherwise noted Device Marking Device Package Reel Size Tape Width Quantity FDB031N08 FDB031N08 D2-...
Page 3 FD 031N 08 N -C hannel Pow er Trench SFET Ca pa ci ta nc es [p F] S( ) [ Typical Performance Characteristics ra in -S ou rc n- es is ta nc ,D ra in ur re nt [A Figure 1. On-Region Characteristics Figu...
Page 4 FD 031N 08 N -C hannel Pow er Trench SFET Typical Performance Characteristics (Continued) SS , [ or al iz ed , D ra in ur re nt [A ra in -S ou rc re ak do Vo lta ge Figure 7. Breakdown Voltage Variati...
Page 5 FD 031N 08 N -C hannel Pow er Trench SFET Gate Charge Test Circuit & Waveform Resistive Switching Test Circuit & Waveforms Unclamped Inductive Switching Test Circuit & Waveforms www.fairch...
Page 6 FD 031N 08 N -C hannel Pow er Trench SFET Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width V...
Page 7 FD 031N 08 N -C hannel Pow er Trench SFET Mechanical Dimensions D2-PAK Dimensions in Millimeters www.fairchildsemi.com7 FDB031N08 Rev. A3
Page 8 TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidianries, and is not intended to be an exhaustive li...

Manual Details

Brand Fairchild
Pages 8
File Size 722.44 KB
Published May 20, 2026
68 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the nominal Drain-Source On Resistance (RDS(on))?

The typical value is 2.4 mΩ @ V = 10V, I = 75A.

What current limits apply to continuous drain operation at different temperatures?

At 25°C, the limit is 235A (Silicon Limited). At 100°C, it is 165A (Silicon Limited).

What is the operating temperature range for this MOSFET?

The specified operating and storage temperature range is -55 to +175 °C.

How does Power Dissipation change with ambient temperature?

Power dissipation must be derated above 25°C at a rate of 2.5 W/°C.
