Fairchild FDD2582 N-Channel PowerTrench MOSFET 150V, 21A, 66mOhm Data Sheet

Summary

Discover the FDD2582 N-Channel Power MOSFET, an automotive-grade solution built for demanding power electronics applications. This device is ideal for engineers designing DC/DC converters, Off-Line UPS systems, and complex Vehicle Load Control circuits requiring high reliability up to 175°C. The technical manual provides comprehensive specifications, including detailed electrical characteristics, switching performance data, thermal analysis, and safety ratings necessary for reliable implementation in automotive environments.

📄 Preview PAGE OF 11

Page 1 Text Content

September 2002

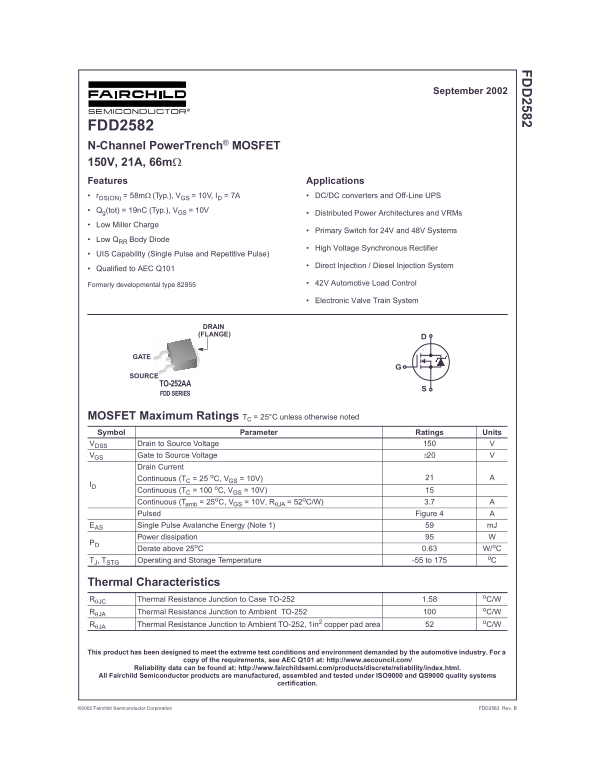

FDD2582 N-Channel Power Trench® MOSFET 150V, 21A, 66mΩ Features Applications r DS(ON) = 58mΩ (Typ.), VGS = 10V, ID = 7A DC/DC converters and Off-Line UPS Qg(tot) = 19n C (Typ.), VGS = 10V

Distributed Power Architectures and VRMs

Low Miller Charge

Primary Switch for 24V and 48V Systems

Low QRR Body Diode

High Voltage Synchronous Rectifier

UIS Capability (Single Pulse and Repetitive Pulse)

Direct Injection / Diesel Injection System

Qualified to AEC Q101

Formerly developmental type 82855 42V Automotive Load Control

Electronic Valve Train System

DRAIN (FLANGE)

SOURCE

TO-252AA FDD SERIES

MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage VGS Gate to Source Voltage ±20

Drain Current

AContinuous (TC = 25 o C, VGS = 10V)

Continuous (TC = 100 o C, VGS = 10V) Continuous (Tamb = 25o C, VGS = 10V, RθJA = 52o C/W) 3.7 Pulsed Figure 4

EAS Single Pulse Avalanche Energy (Note 1) m J

Power dissipation

Derate above 25o C 0.63 W/o C

TJ, TSTG Operating and Storage Temperature -55 to 175

Thermal Characteristics

RθJC Thermal Resistance Junction to Case TO-252 1.58

RθJA Thermal Resistance Junction to Ambient TO-252

RθJA Thermal Resistance Junction to Ambient TO-252, 1in2 copper pad area

This product has been designed to meet the extreme test conditions and environment demanded by the automotive industry. For a

copy of the requirements, see AEC Q101 at: http://www.aecouncil.com/

Reliability data can be found at: http://www.fairchildsemi.com/products/discrete/reliability/index.html.

All Fairchild Semiconductor products are manufactured, assembled and tested under ISO9000 and QS9000 quality systems

certification.

2002 Fairchild Semiconductor Corporation FDD2582 Rev. B

Page Summary Contents For Fairchild FDD2582 N-Channel PowerTrench MOSFET 150V, 21A, 66mOhm Data Sheet

Page 1 September 2002 FDD2582 N-Channel Power Trench® MOSFET 150V, 21A, 66mΩ Features Applications r DS(ON) = 58mΩ (Typ.), VGS = 10V, ID = 7A DC/DC converters and Off-Line UPS Qg(tot) = 19n C (Typ.), VGS = 1...
Page 2 Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD2582 FDD2582 TO-252AA 330mm 16mm 2500 units Electrical Characteristics TC = 25°C unless otherwis...
Page 3 Typical Characteristics TC = 25°C unless otherwise noted IS IP IO LT IP IE , P θJ , N IZ VGS = 10V TC, CASE TEMPERATURE (o C) TC, CASE TEMPERATURE (o C) Figure 1. Normalized Power Dissipation vs Figur...
Page 4 Typical Characteristics TC = 25°C unless otherwise noted IN IS TA , D IN , D IN If R = 0 t AV = (L)(IAS)/(1.3*RATED BVDSS - VDD) If R ≠ 0 100µs t AV = (L/R)ln[(IAS*R)/(1.3*RATED BVDSS - VDD) +1] START...
Page 5 Typical Characteristics TC = 25°C unless otherwise noted , C PA IT IZ VGS = VDS, ID = 250µA ID = 250µA TJ, JUNCTION TEMPERATURE (o C) TJ, JUNCTION TEMPERATURE (o C) Figure 11. Normalized Gate Threshol...
Page 6 Test Circuits and Waveforms VDS BVDSS VARY t P TO OBTAIN REQUIRED PEAK IAS RG 0V IAS Figure 15. Unclamped Energy Test Circuit Figure 16. Unclamped Energy Waveforms VDD Qg(TOT) VGS = 10V DUT VGS = 2V I...
Page 7 Thermal Resistance vs. Mounting Pad Area The maximum rated junction temperature, TJM, and the thermal resistance of the heat dissipating path determines RθJA = 33.32+ 23.84/(0.268+Area) EQ.2 the maxim...
Page 8 PSPICE Electrical Model .SUBCKT FDD2582 2 1 3 ; rev July 2002 Ca 12 8 4e-10 Cb 15 14 4.6e-10 LDRAIN Cin 6 8 1.24e-9 DPLCAP DRAIN Dbody 7 5 Dbody MOD RLDRAIN Dbreak 5 11 Dbreak MOD RSLC1 DBREAK Dplcap ...
Page 9 SABER Electrical Model REV July 2002 ttemplate FDD2582 n2,n1,n3 electrical n2,n1,n3 var i iscl dp..model dbodymod = (isl=2.3e-12,rs=5.3e-3,trs1=2.2e-3,trs2=4.5e-7,cjo=8.8e-10,m=0.64,tt=3.8e-8,xti=4.2)...
Page 10 SPICE Thermal Model th JUNCTION REV 19 July 2002 FDD2582 CTHERM1 TH 6 1.6e-3 CTHERM2 6 5 4.5e-3 CTHERM3 5 4 5.0e-3 RTHERM1 CTHERM1 CTHERM4 4 3 8.0e-3 CTHERM5 3 2 8.2e-3 CTHERM6 2 TL 4.7e-2 RTHERM1 TH ...
